HP Z27 G2 Series - HDMI Connector Repair

21
Main board- Connector repair
Repair Condition: Connector repair is only for the monitor that has been out
of warranty period.
• The repair procedure is for HDMI, DisplayPort and audio connectors.
• The connectors are on the main board (IF board part number 5E.3QN01.001).

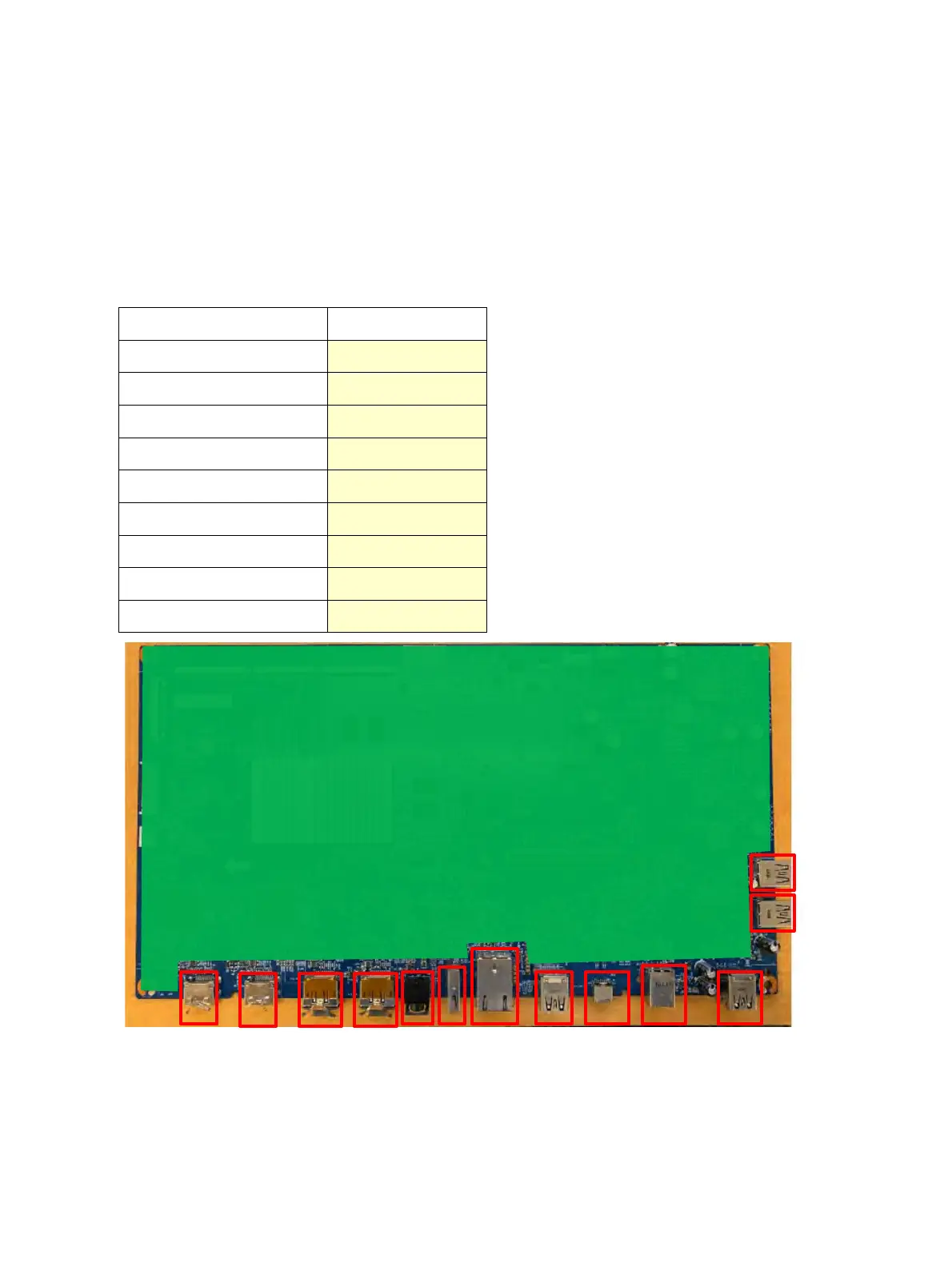

• Please refer to the location to repair the correct parts:
Connector
Location
HDMI
J12, J13
DisplayPort (DP)
J14, J15
Audio
J24
USB A 2.0
J10
RJ45
J27
DUAL USB A 3.0
J5, J6
USB TYPE C
J1
USB B 3.0
J2
USB A 3.0
J28, J4
Main Board
J12
J4
J28
J2
J5
J1
J6
J27
J10
J24
J15
J14
J13
