HP Z820 Workstation Series User Manual

Converting to desktop configuration (Z220 CMT and Z420)
This workstation can be operated in mini-tower or desktop configuration. Follow these steps to
convert to desktop configuration:
NOTE: See a video of this task at http://www.hp.com/go/sml.
1. Prepare the workstation for component installation.
2. Remove the front bezel from the workstation.
3. Press gently on the edges of the optical drive bay filler panel and remove it from the front bezel.

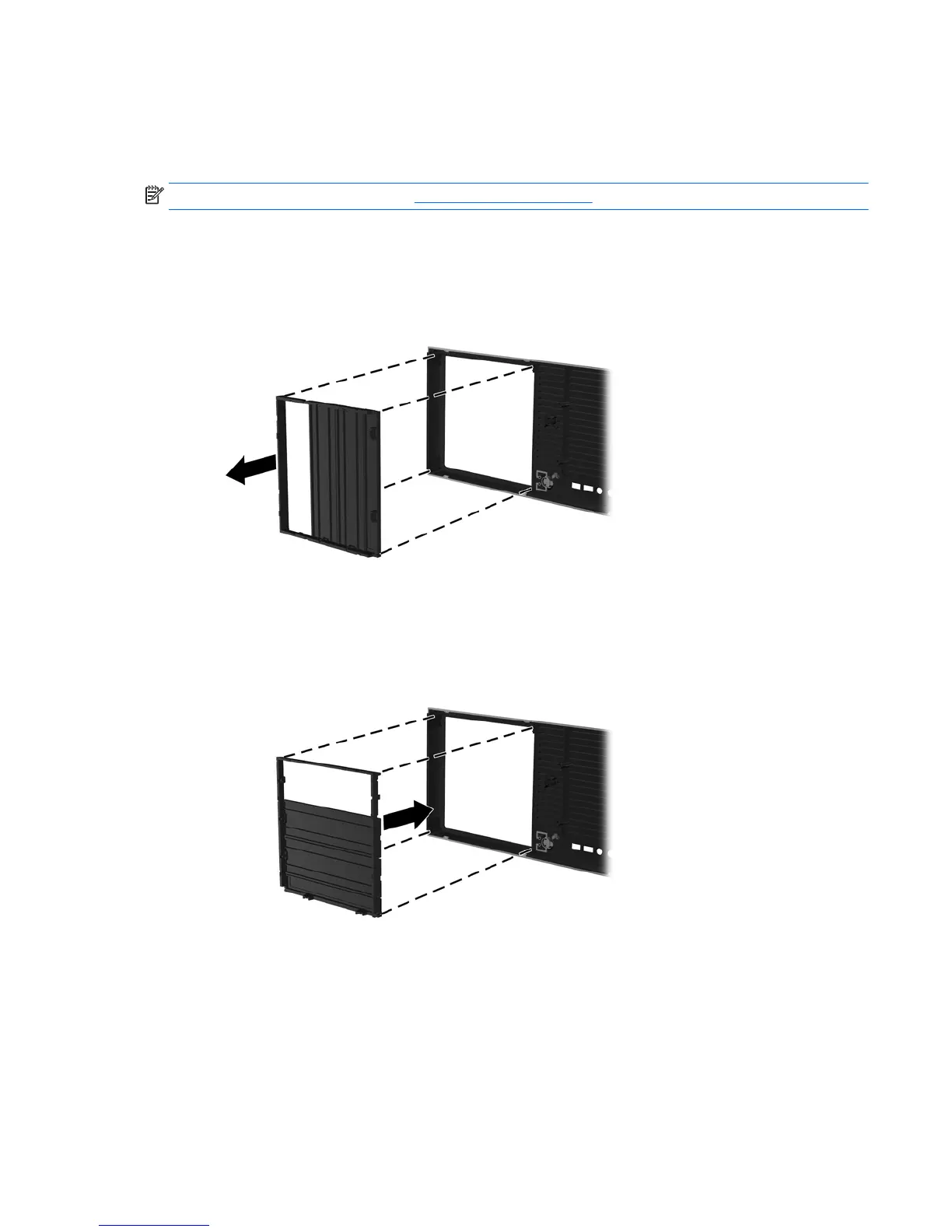

Figure 3-6 Removing the ODD bay filler panel
4. Rotate the filler panel 90 degrees to a horizontal position.
5. Align the slots in the filler panel frame with the tabs in the front bezel. Press the optical drive filler
panel back into the front bezel until it snaps into place.
Figure 3-7 Installing the ODD bay filler panel
Converting to desktop configuration (Z220 CMT and Z420) 29

HP Z820 Workstation Series Specifications

General

Chipset	Intel C602
Processor Options	Intel Xeon E5-2600 v2 series
Memory	Up to 512 GB DDR3
Storage Options	Supports SAS, SATA, and SSD drives
Graphics Options	NVIDIA Quadro or AMD FirePro professional graphics cards
Expansion Slots	1 PCI
Power Supply	1125W
Operating System	Windows 7, Windows 8, Red Hat Enterprise Linux
