5. Different self-adhesive pads for the installation of the main unit.
6. Instruction Manual book that what you reading right now.
2.3 Installation
It is very convenient to install HQUA 5000E with your pipe system compared to
the previous water softening technology with no plumbing job needed. Make sure
you got everything you need according to our package list before you start it. You
are welcome to e-mail us if you have any question with installing this unit.
Step 1 Wrap the antenna (cable band) on the pipe
Let’s start it with the output cable band, which consists of three parts. Part 1 is
the output wires, for connecting to the main unit; Part 2 is the connection terminal;
Part 3 is the antenna (cable band), and there is another connection terminal at the
end of it.

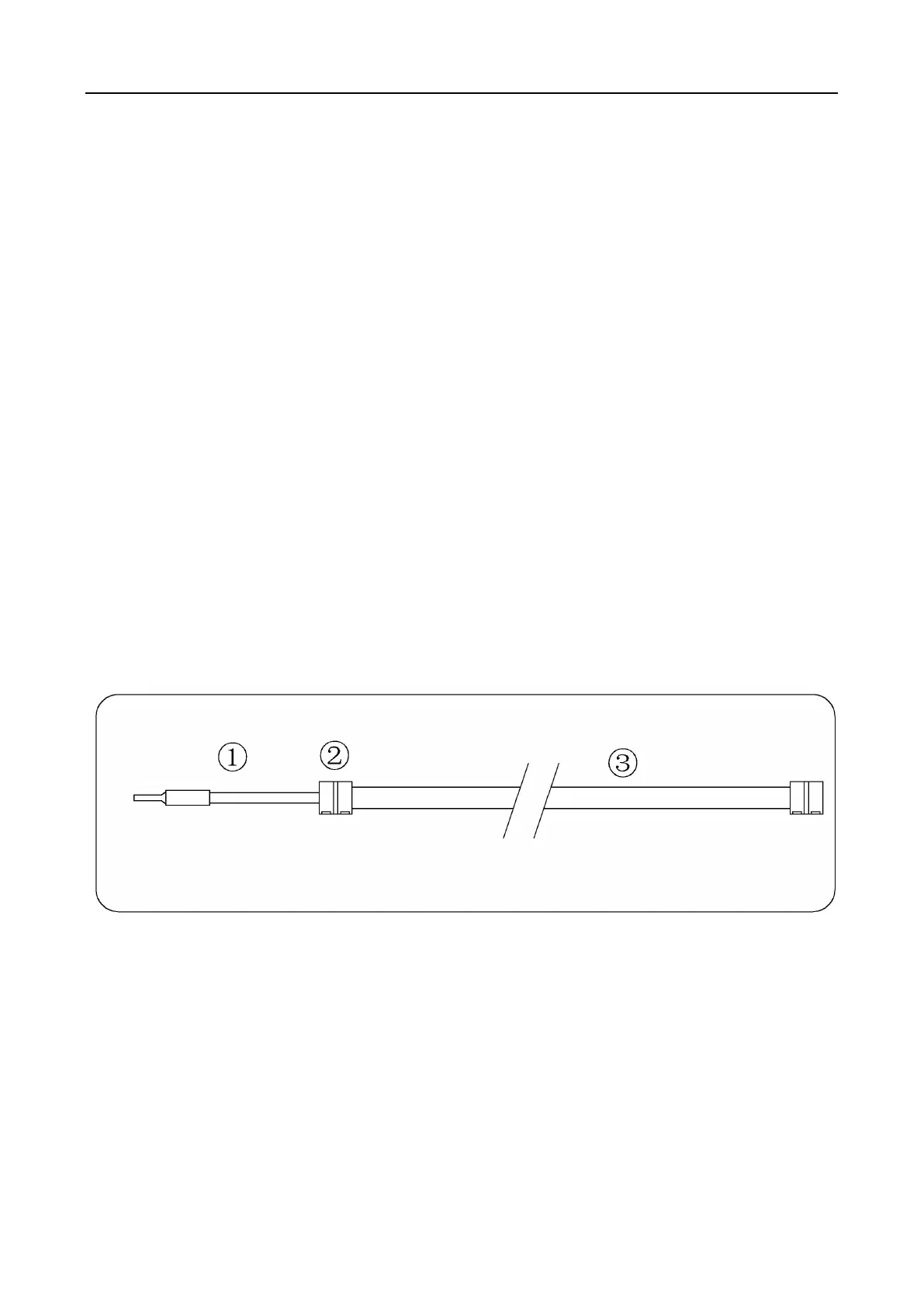

Figure 3 Output cable structure
Use the white plastic cable tie (work by looping round the pipe and inserting the
free end into the oblong hole at the other end. A clicking sound is heard as the tie
is tightened) to fix Part 2 on the pipe at a certain tilt that try to fit the pipe tightly.
