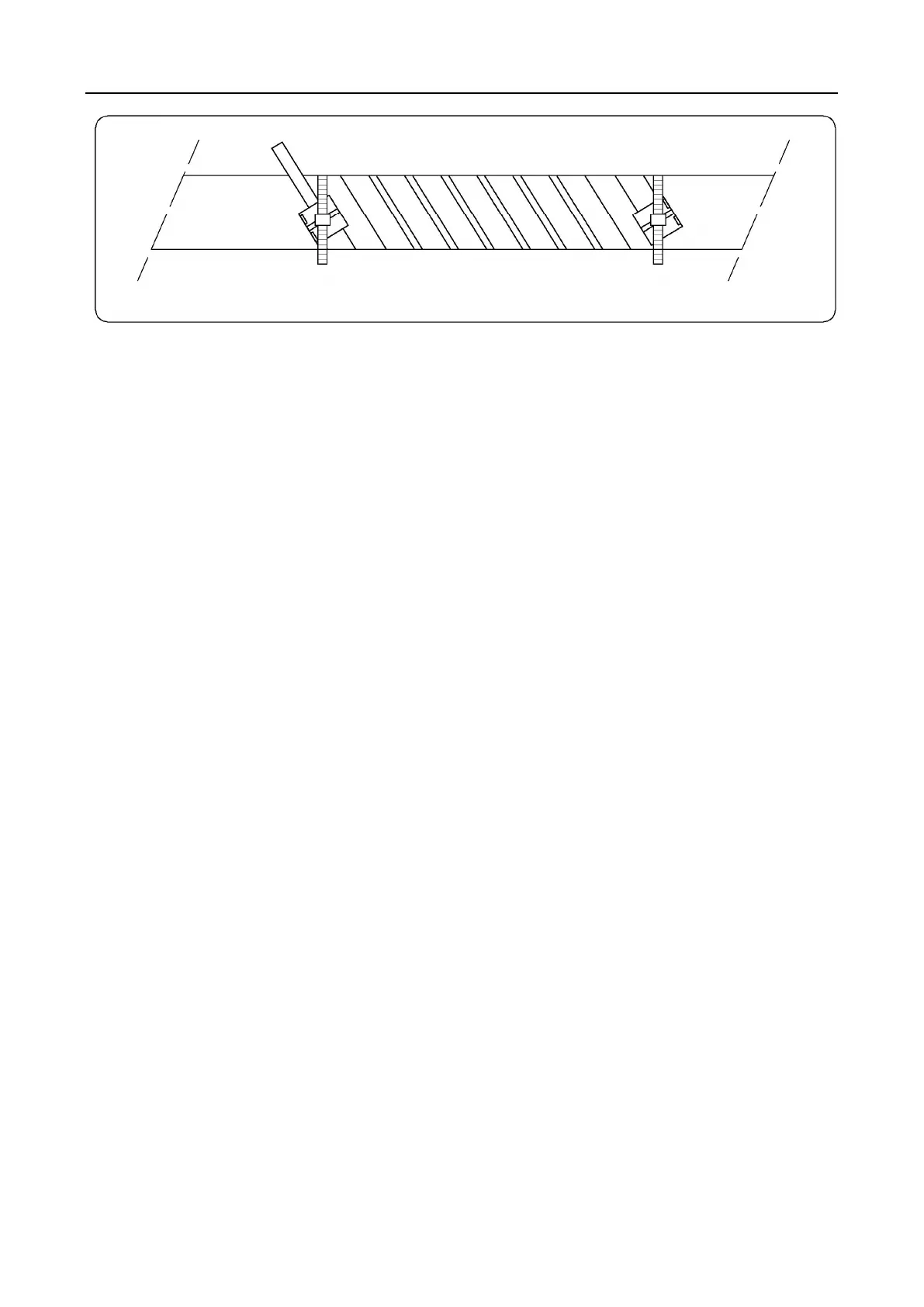

Figure 4 Wrap the cable on the pipe
We suggest you ‘lock’ the connection terminal part on the pipe to start it. And
wrap the antenna helically to form a certain coil on the pipe. Make sure there is a
gap (around 0.2 inch-5mm) between adjacent cord. Please don’t worry about the
transparent tape that attached on the cable band, it works as an insulator, do not
try to remove it from the band.
And tie the end connection terminal of the cable tightly. There should be at least
9 rounds on the 1 inch pipe, and 7 rounds on the 1 1/2” pipe.
Step 2 Wrap another antenna (cable band) on the pipe
According to Figure 1, part 1, there should be at least 8 inch/20 cm between
each antenna, to ensure there are enough room for the main unit. Reserving the
distance and start to wrap another cable band on the pipe. Refer to Figure 5, wrap
it with a different direction.
