Operation Manual
12

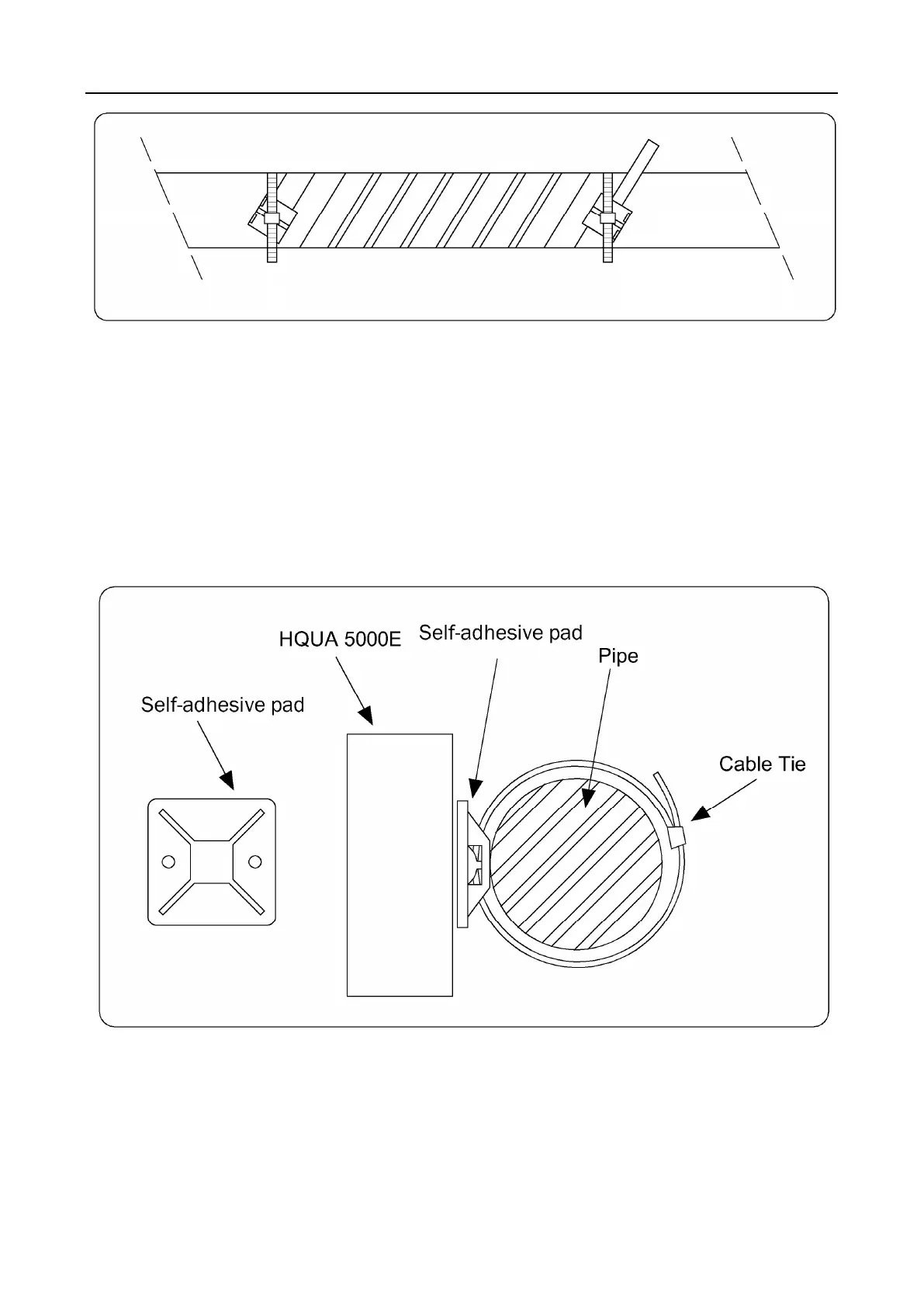

Figure 5 Wrap another cable on the pipe
Step 3 Mount the main unit on the pipe or wall
For the pipe installation: take out the self-adhesive pads with a retaining bracket
on it, paste it on the rear of your main unit, though a cable tie in the hollow of the
bracket, tie the main unit with the main water pipe to fix it.
Figure 6 Fix HQUA 5000E with the pipe system
Wall installation is easier : take out the self-adhesive pads without a retaining
