HSDJets MFC-2085 User Manual

L01：Afterburnerlight
L02：Afterburnerlight
L03：Navigationlight
L04：Navigationlight
L05：Navigationlight
L06：Navigationlight
L07：Navigationlight
L08：Navigationlight
L09：Navigationlight
L10：Navigationlight
L11：Navigationlight
L12：Navigationlight
L13：Landinggearlight
L14：Landinggearlight
L15：Landinggearlight
AUX1-1：Aileron
AUX1-2：Aileron
AUX2-1：Elevator
AUX2-2：Elevator
AUX3-1：Rudder
AUX3-2：Rudder
R-01：S-BUS*
R-02：S-BUS*
R-03：Landinggearsignalinput
R-04：Brakesignalinput
R-05：Navigationlightsignalinput
R-06：Afterburnerlightsignalinput
R-07：AUX-1AileronSignalInput
R-08：AUX-2ElevatorSignalInput
R-09：AUX-3RudderSignalInput
R-10：AUX-4FlapSignalInput
R-11：AUX-5SpareSignalInput
R-12：AUX-6ThrottleSignalInput
R-13：AUX-7SpareSignalInput
R-14：AUX-8SpareSignalInput
AUX4-1：Flap
AUX4-2：Flap
AUX5-1：Spare
AUX5-2：Spare
AUX6：Throttle
AUX7：Spare
AUX8：Spare
*R01&R02isS-Bussignalparallelinterface
AE-05：GearLock2（Air+Electronics）
AE-04：GearLock1（Air+Electronics）
AE-03：Door3（Air+Electronics）
AE-02：Door2（Air+Electronics）
AE-01：Door1（Air+Electronics）
AV-02：Brakevalve（Air）
AV-01：Landinggearvalve（Air）
EB - 0 2：E l ec tr oni csB rak e2
EB - 0 1：E l ec tr oni csB rak e1
EG - 0 3：E l ec tr oni csL an d in ggea r3
EG - 0 2：E l ec tr oni csL an d in ggea r2
EG - 0 1：E l ec tr oni csL an d in ggea r1
L01
L02
L03
L04
L05
L06
L07
L08
L09
L10
L11
L12
L13
L14
L15
R01
R02
R03
R04
R05
R06
R07
R08
R09
R10
R11
R12
R13
R14
AUX1-1
AUX1-2
AUX2-1
AUX2-2
AUX3-1
AUX3-2
AUX4-1
AUX4-2
AUX5-1
AUX5-2
AUX6
AUX7
AUX8
AV-01 AV-02 AE-01 AE-02 AE-03 AE-04 AE-05
EG-01 EG-02 EG-03 EB-01 EB-02

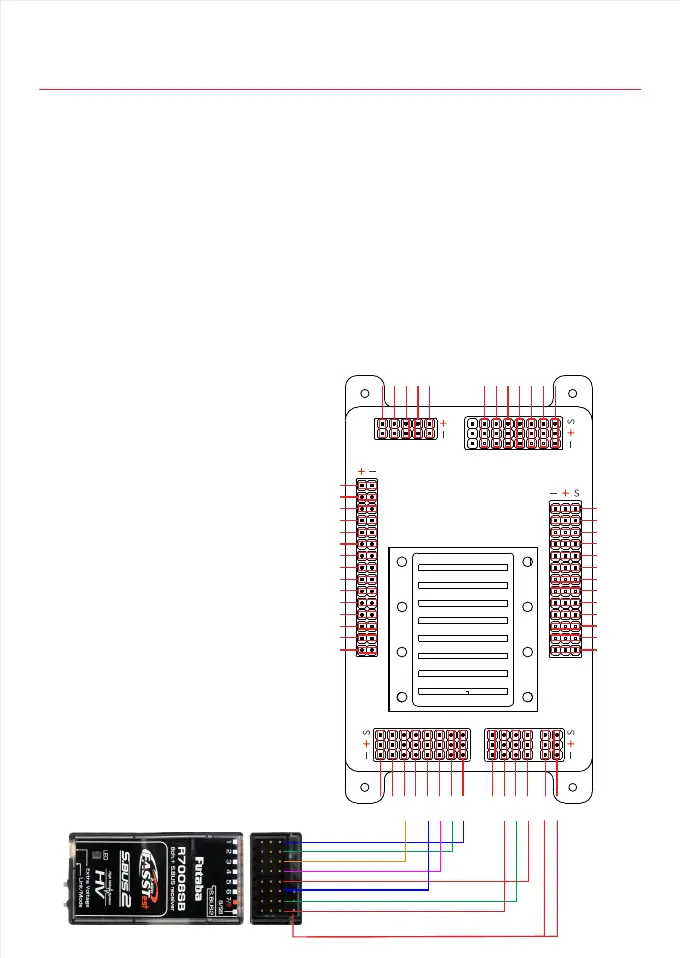

Output&InputportDescription
*Thispatchcordincludesconventional
patchcordandS-BUSpatchcord
