HTC HD2 Repair Guide

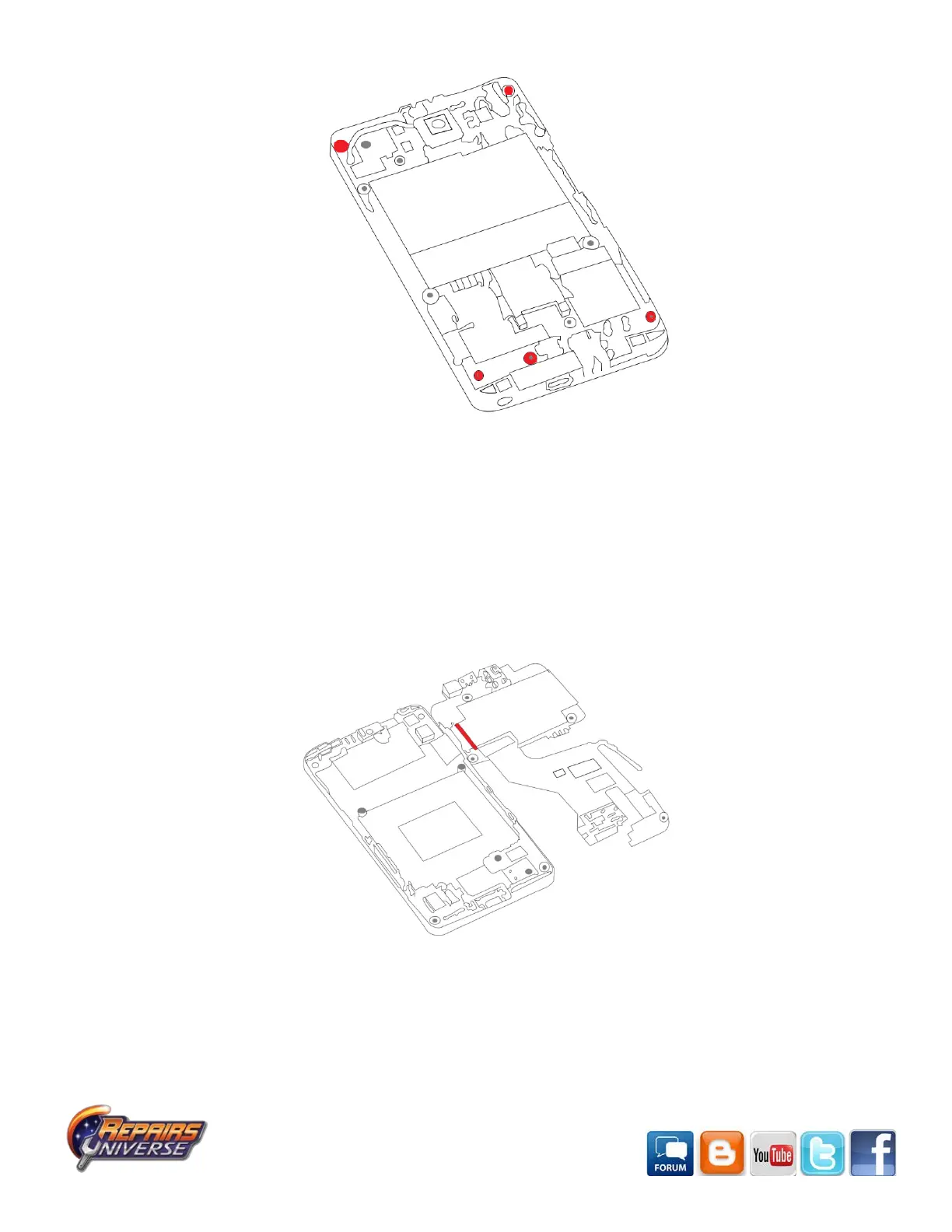

Figure 2
• Then remove the keyboard flex cable connector from the motherboard. Do this by using a safe open pry tool to lift
up on the alligator clip, and remove the ribbon. Remove the label located below the battery.
• Pop the white cable from the GPS unit located in the left top corner and work your way to the motherboard.
Remove the GPS board
• Now, release the volume flex from the housing. Use a safe pry tool to remove the adhesive holding the
motherboard flex cable in place.
• You can now flip the motherboard and flex to the side, exposing the LCD flex cable connector. Use a pry tool to
move the clip forward and release the cable as shown in Figure 3.
Figure 3
• Use a hair dryer or heat gun to heat the front of the digitizer, working in quick movements for 1-2 minutes.
• Slide a safe open pry tool along the edges to remove the metal housing from the screen assembly as shown in
Figure 4.

HTC HD2 Specifications

General

Display diagonal	4.3 \
Display resolution	480 x 800 pixels
Ringer type	Polyphonic
Processor frequency	1 GHz
Internal memory	512 MB
Rear camera type	Single camera
Personal info management (PIM)	Calendar
Headphone connectivity	3.5 mm
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Form factor	Bar
Product color	Black
Talk time (2G)	6.3 h
Talk time (3G)	5.3 h
Battery capacity	1230 mAh
Standby time (2G)	490 h
Standby time (3G)	390 h
2G standards	EDGE, GPRS
Data network	3G, wcdma
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP
SIM card capability	Single SIM

Weight and Dimensions

Depth	67 mm
Width	120.5 mm
Height	11 mm
Weight	157 g
