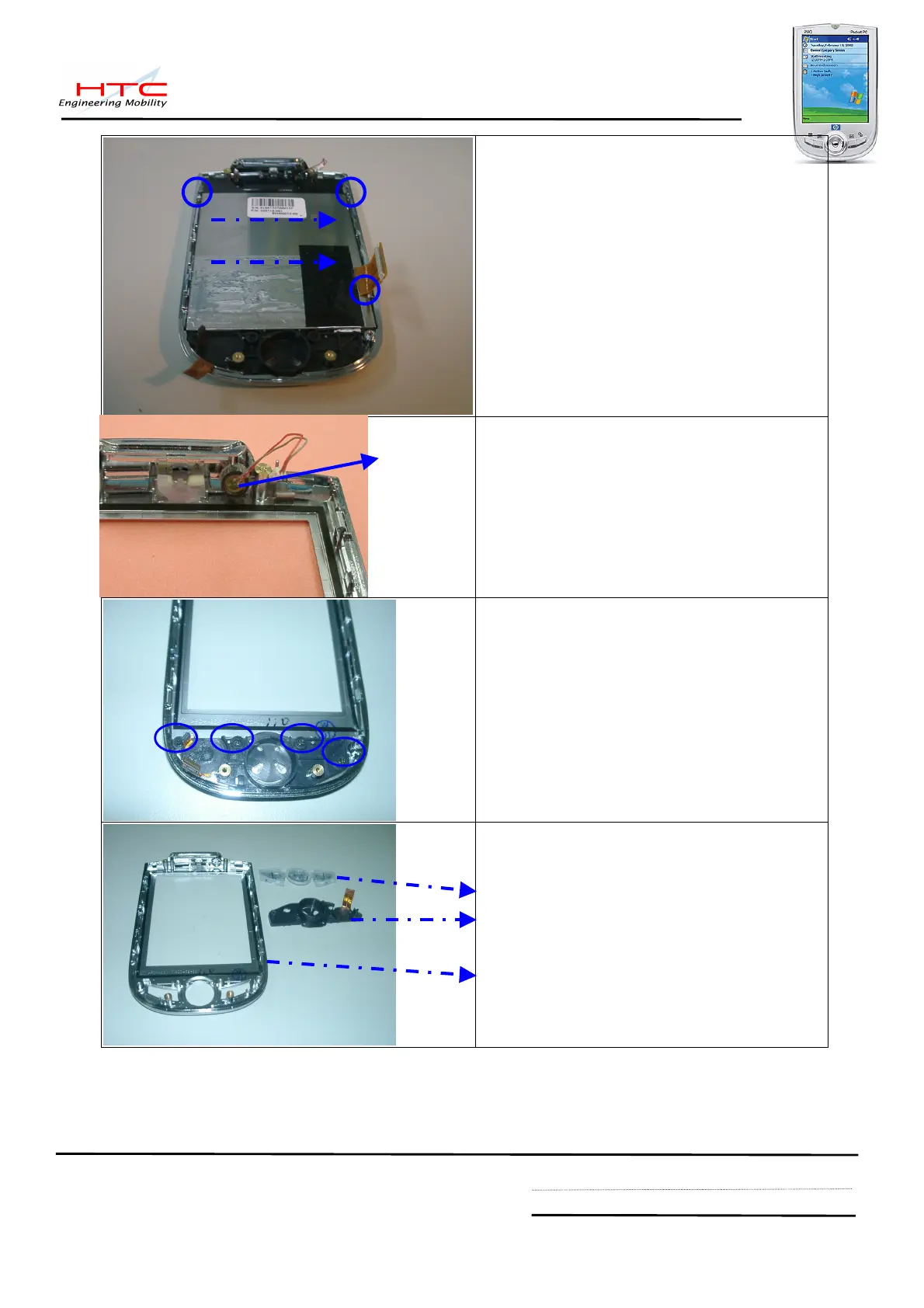

Unhook the LCM from upper cover on the
both sides, and then take out the LCM from
left to the right.
Disassemble the microphone from upper
cover
Remove the 4 screws with Philip screwdriver.
Disassemble the upper cover, pre-assy
(74H00157-00) to the parts as below;
77H00158-00Key pad, assy, HB
74H00175-00FPC Pre-assy + speaker
holder
74H00199-00upper cover pre-assy
The disassembly procedure is finished.
Microphone
To Next Page
