MONTAGEM
DIMENSOES (LxAxP
)
A(
mm)
B{mm)
5,2 kW 800x554x333 514 340
8,2 kW 845x702x363 540 350
10,5 kW 946x810x410 673 403
12,0 kW 946x810x410 673 403

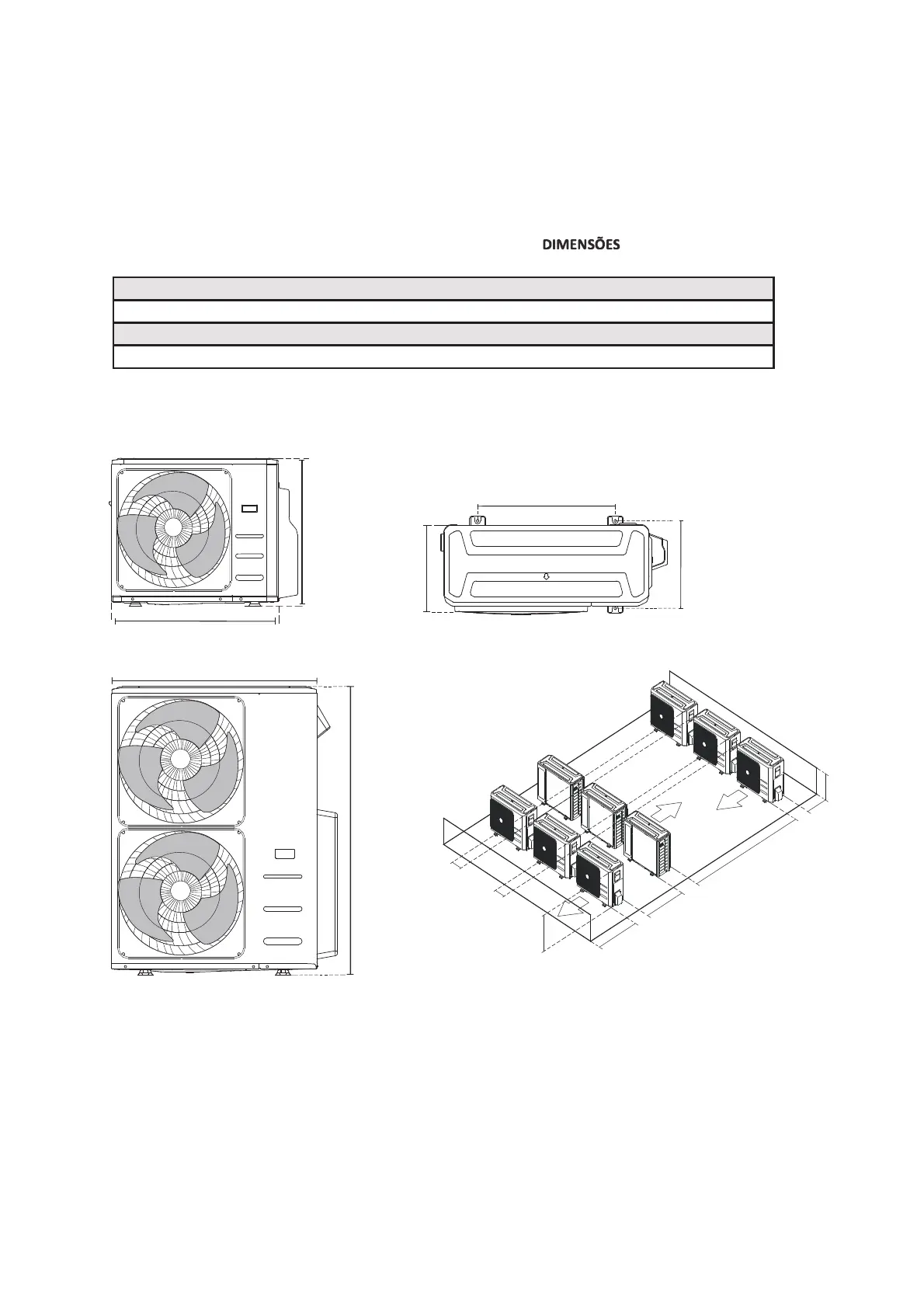

Unidade Exterior Tipo Split
(Consulte as Figuras 6.4, 6.5, 6.6, 6.10 e
Tabela 6.1)
Fig. 6.6
Fig. 6.5
A
B
D
W
H
W
H
Fig. 6.4
L
H
300 cm / 118” or more
A
or more
60 cm / 23.6”
or more
150 cm / 59”
or more
25 cm / 9.8”
or more
25 cm / 9.8”
Fig. 6.5
Fig. 6.7
6.1
UNIDADE EXTERIOR
