Huawei AP Series User Manual

11
Installing the AP
3. Determining the Installation Position
When determining the AP installation position, comply with the following rules:
 Install the AP free from high temperature, dust, toxic gases, flammable or explosive materials,
unstable voltage, or electromagnetic interferences, such as radar stations, launch pads, or
transformer substations. The AP should also be away from great vibrations and strong noises.
 Install the AP away from water, drippings, and dews.
 Install the AP in a hidden position in order not to disturb people.
 Consider the communication network planning and the technical requirements of the equipment in
the project design. In addition, hydrographic, geological, seismic, power supply, and transportation
factors must be considered.
Outdoor APs can be installed on poles or wall. The pole diameter is 48 mm to 114 mm and the
thickness must be at least 2.5 mm. The AP must be installed by the installation personnel in the
position determined by site survey. The recommended AP installation space is as follows:

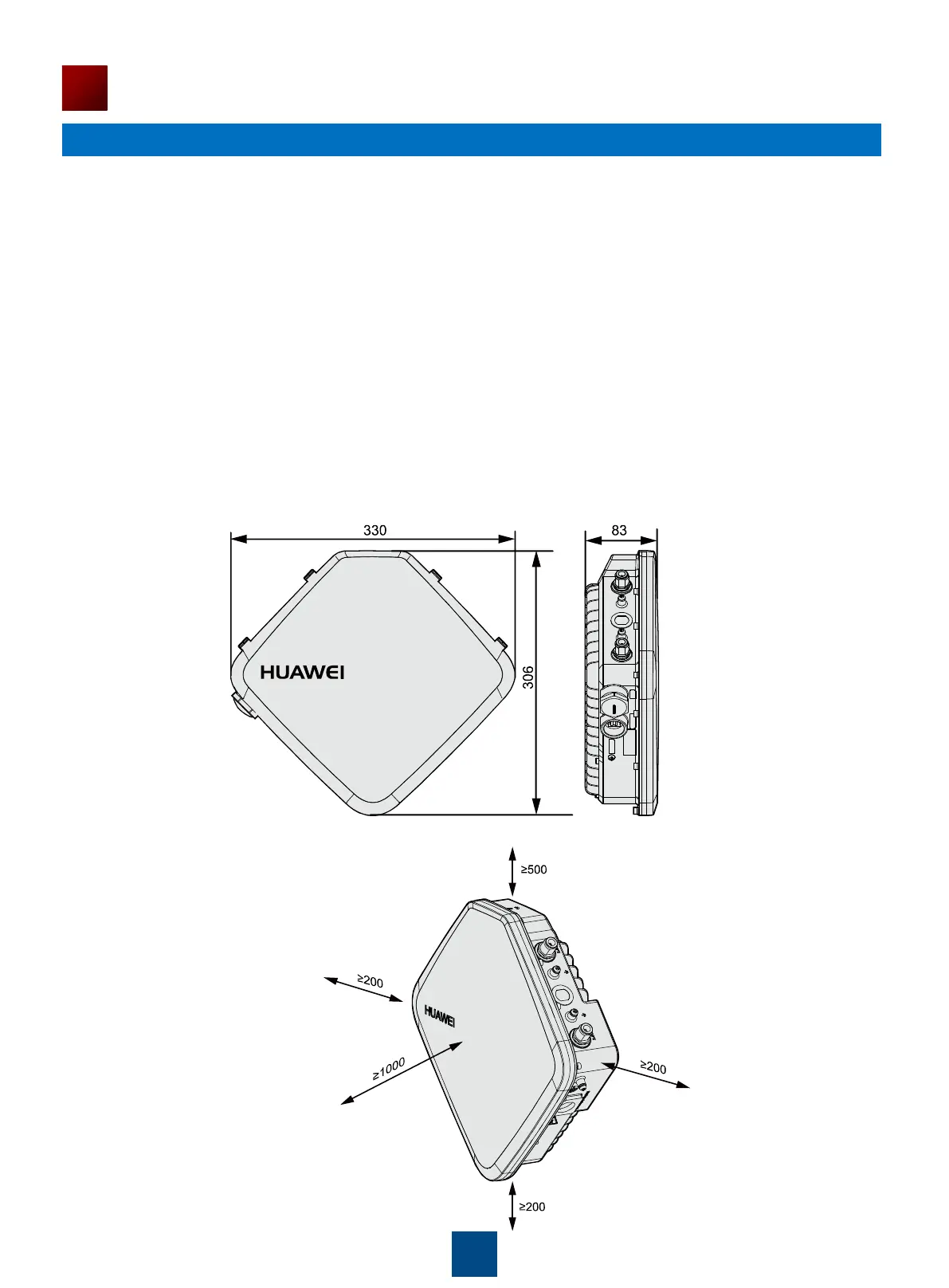

Figure 2 AP dimensions (unit: mm)
Figure 3 Recommended AP installation space (unit: mm)

Huawei AP Series Specifications

General

Category	Wireless Access Point
Model	AP Series
Wireless Standards	IEEE 802.11a/b/g/n/ac/ax
Frequency Bands	2.4 GHz, 5 GHz
MIMO Technology	MU-MIMO
Security Features	WPA3, WPA2, WPA, WEP
Management	Web-based management
PoE Support	802.3af/at
Ethernet Ports	1 or more Gigabit Ethernet ports
Antenna Type	Internal or External antennas (depending on the model)
Humidity	5% to 95% non-condensing
Dimensions	Varies depending on the model
Weight	Varies by model
Mounting	Wall, ceiling, pole
