Device Introduction
No.
Name
Description
1
DC 12V
Connected to the power adapter.
2
Default
Press and hold down the Reset button for 3 seconds to restore the
factory settings and restart the AP.
3
ETH/PoE
10/100/1000M port, which connects to the wired Ethernet. The port
can connect to a PoE switch or a PoE power supply to provide
power for APs.
4
Console
Connected to the maintenance terminal for device configuration and
management.
5
Security slot
Connected to the security lock.
6
2.4 GHz
antenna port
A port connected to the 2.4 GHz antenna.
7
5 GHz antenna
port
A port connected to the 5 GHz antenna.
8
Ground screw
Connect the ground cable to the AP with a ground screw.

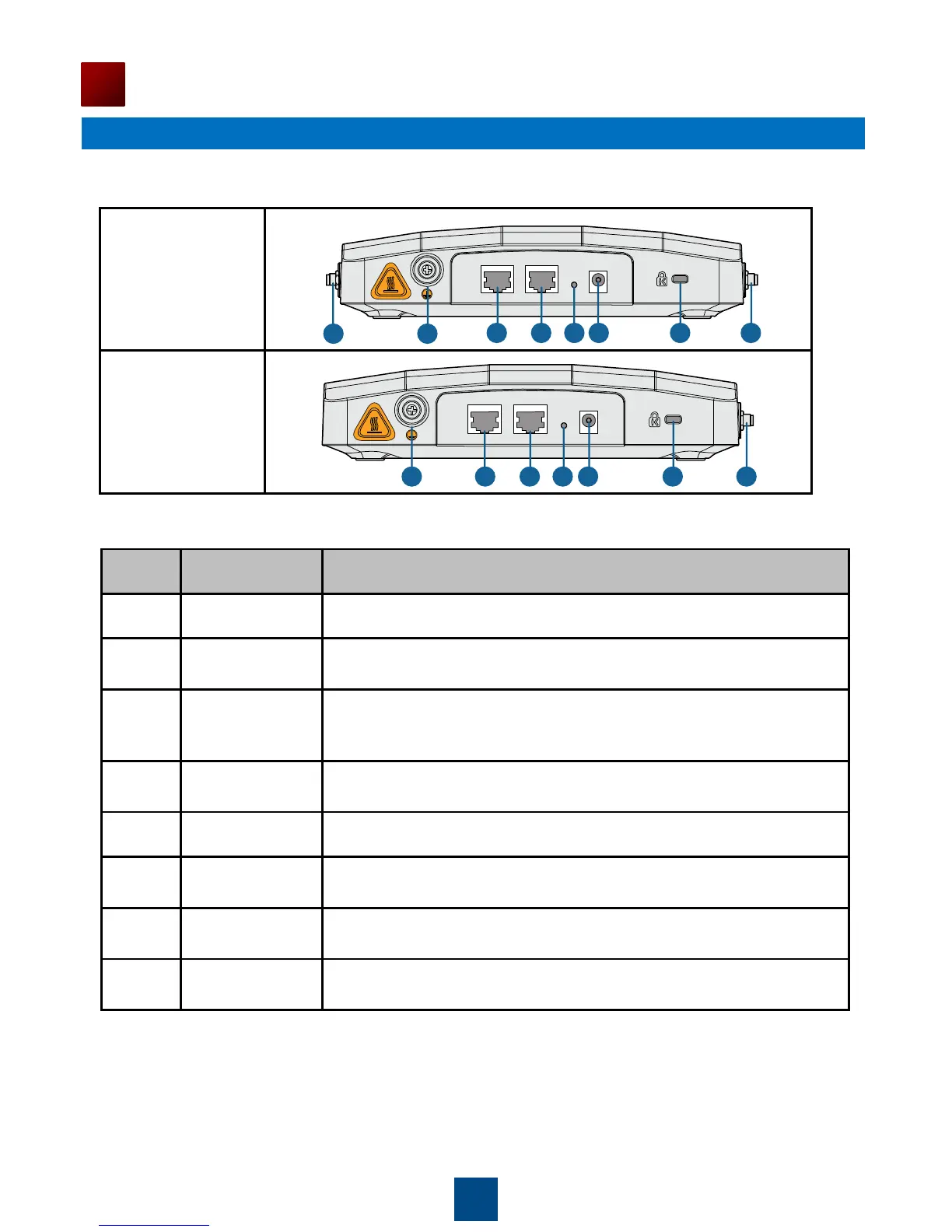

Table 2 Interfaces on indoor APs
Table 3 Interfaces on indoor APs
AP7110DN-AGN
AP7110SN-GN
1 2 3 4 5 6
1 2 3 4 5 6
7
Console ETH/PoE Default DC 12V
Console ETH/PoE Default DC 12V
8
8
