AP4050DN-HD
Hardware Installation and Maintenance Guide 2 AP Installation
Issue 01 (2016-04-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12

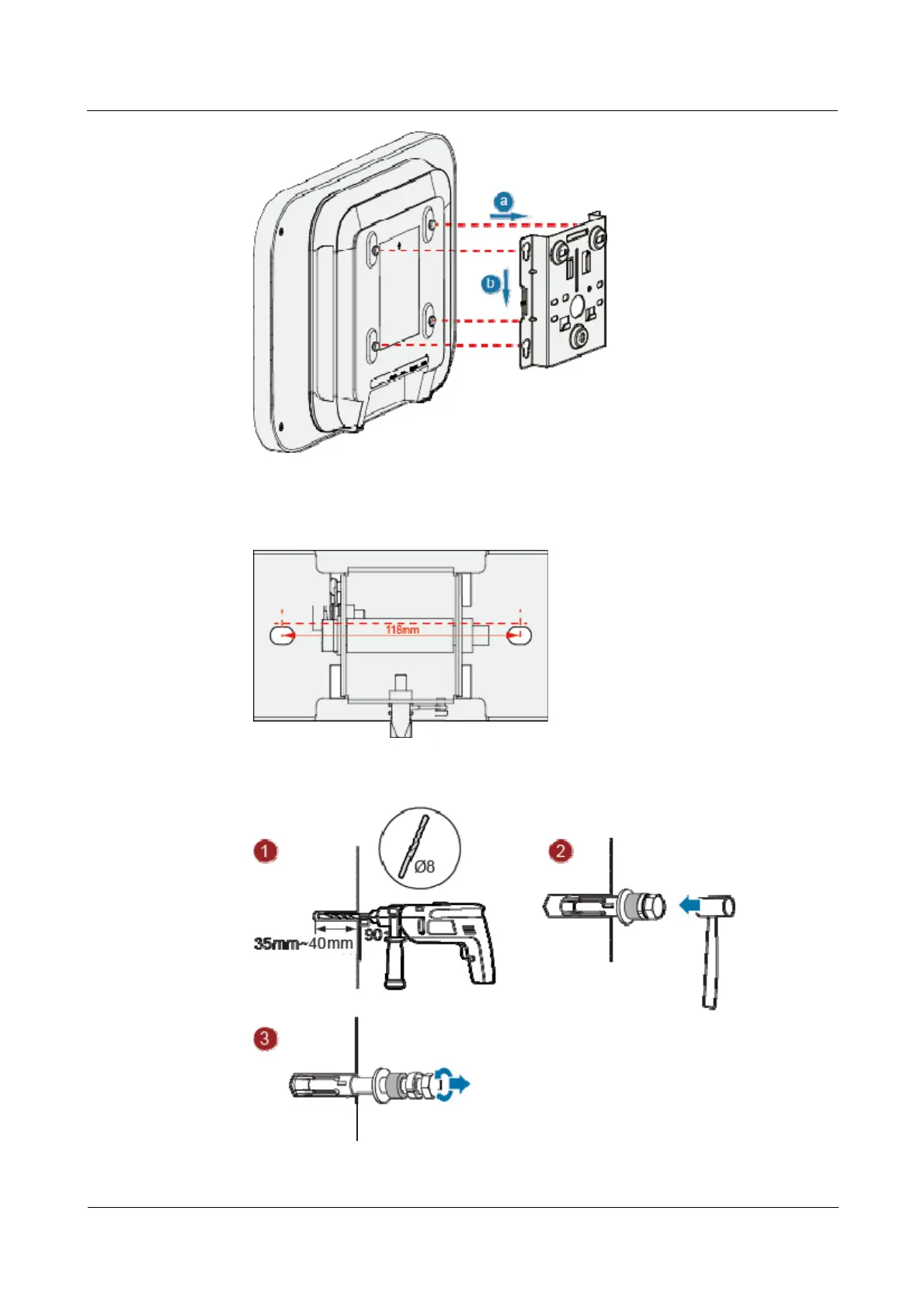

Angle-Adjustable Mounting Bracket
1. Place a base bracket against the wall and mark the drilling positions through holes of the
bracket, as shown in the following figure.
2. Use an 8 mm drill bit to drill 35 mm to 40 mm deep holes in the drilling positions.
Hammer the expansion tubes into the holes until the expansion tubes are completely
embedded into the wall.
