AP4050DN-HD
Hardware Installation and Maintenance Guide 2 AP Installation
Issue 01 (2016-04-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
3. Connect the cables. For details, see 2.6 Cable Connection.

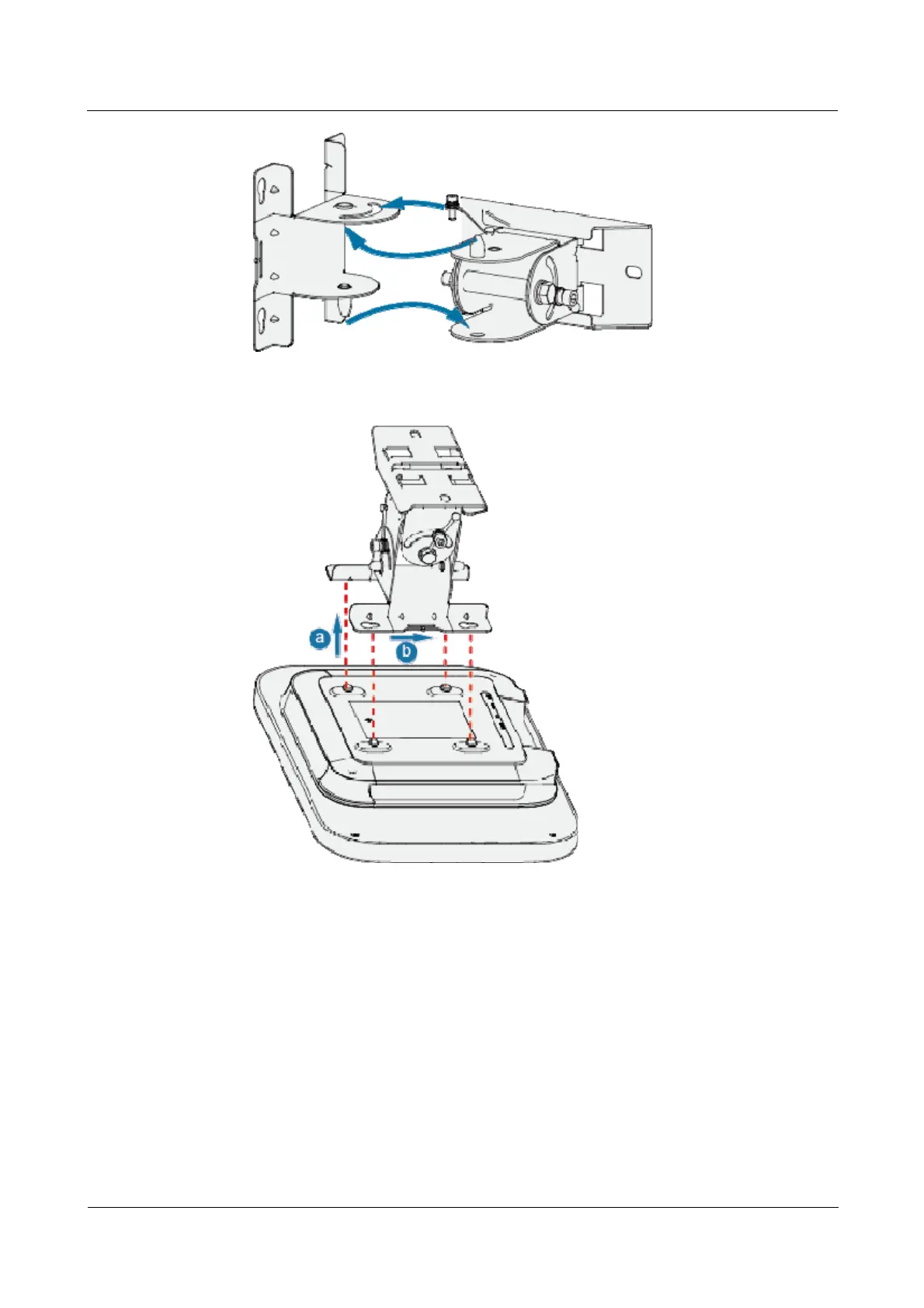

4. Align the mounting screws at the rear of the AP with the mounting holes on the bracket
and horizontally push the AP to secure it.
5. Loosen the screws, adjust the AP's position as required, and tighten the hex socket
screws. Use M4x35 cruciform slot screws to tighten the AP and mounting bracket from
the side.
