Assembling the JG Terminal and Power Cable
Context

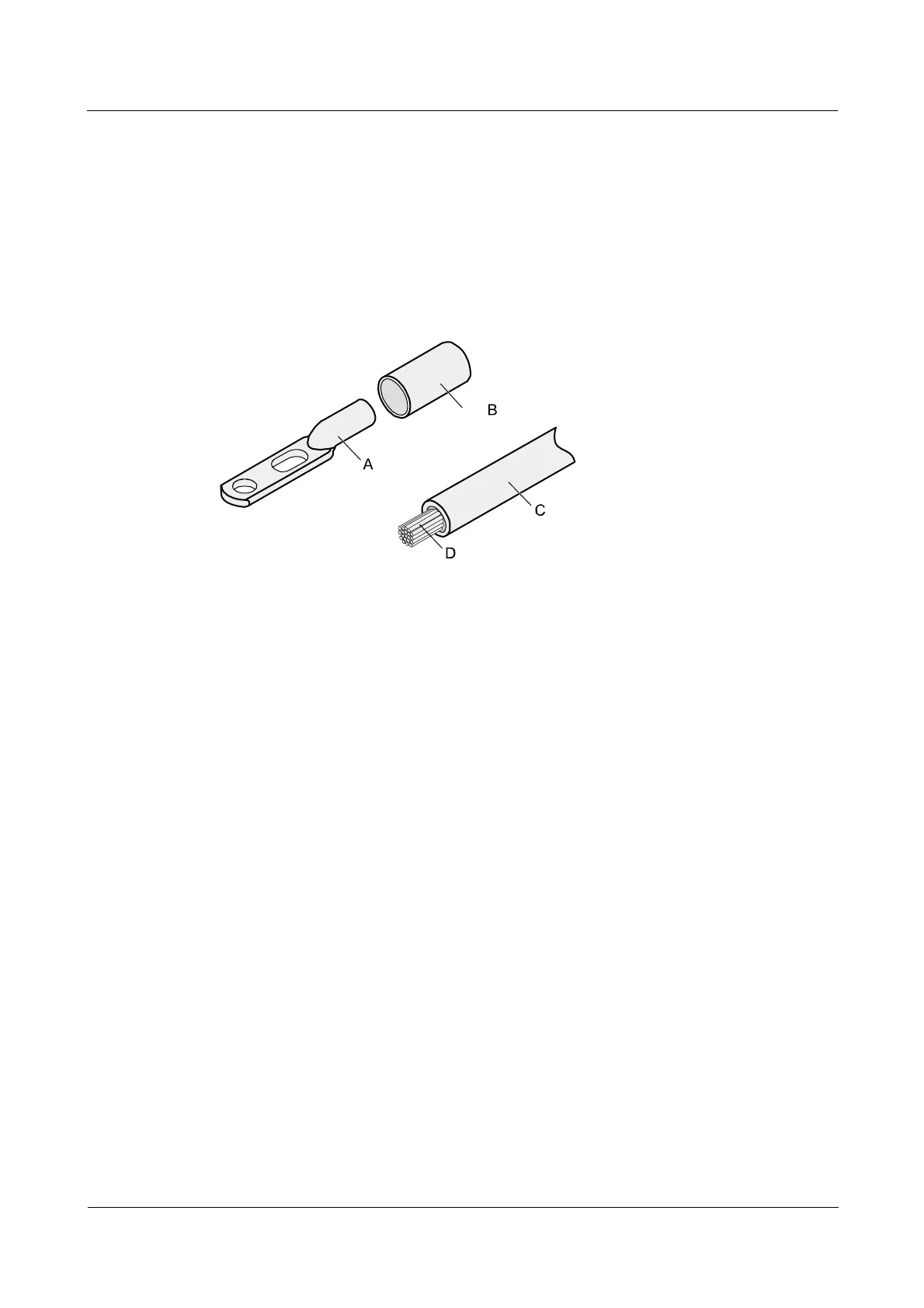

Figure 5-6 shows the components of a JG terminal and a power cable.
Figure 5-6 Components of a JG terminal and a power cable
A. JG
terminal
B. Heat-shrinkable
tubing
C. Insulation layer of a
power cable
D. Conductor of a
power cable
Procedure
Step 1 Strip a part of the insulation to expose the cable conductor with a length of L, as shown in
Figure 5-7. The recommended values of L are listed in Table 5-2.
