U8815

Maintenance Manual

9 Principles and Failure Analysis

Issue 1.0 (2012-02-13)

Huawei Proprietary and Confidential

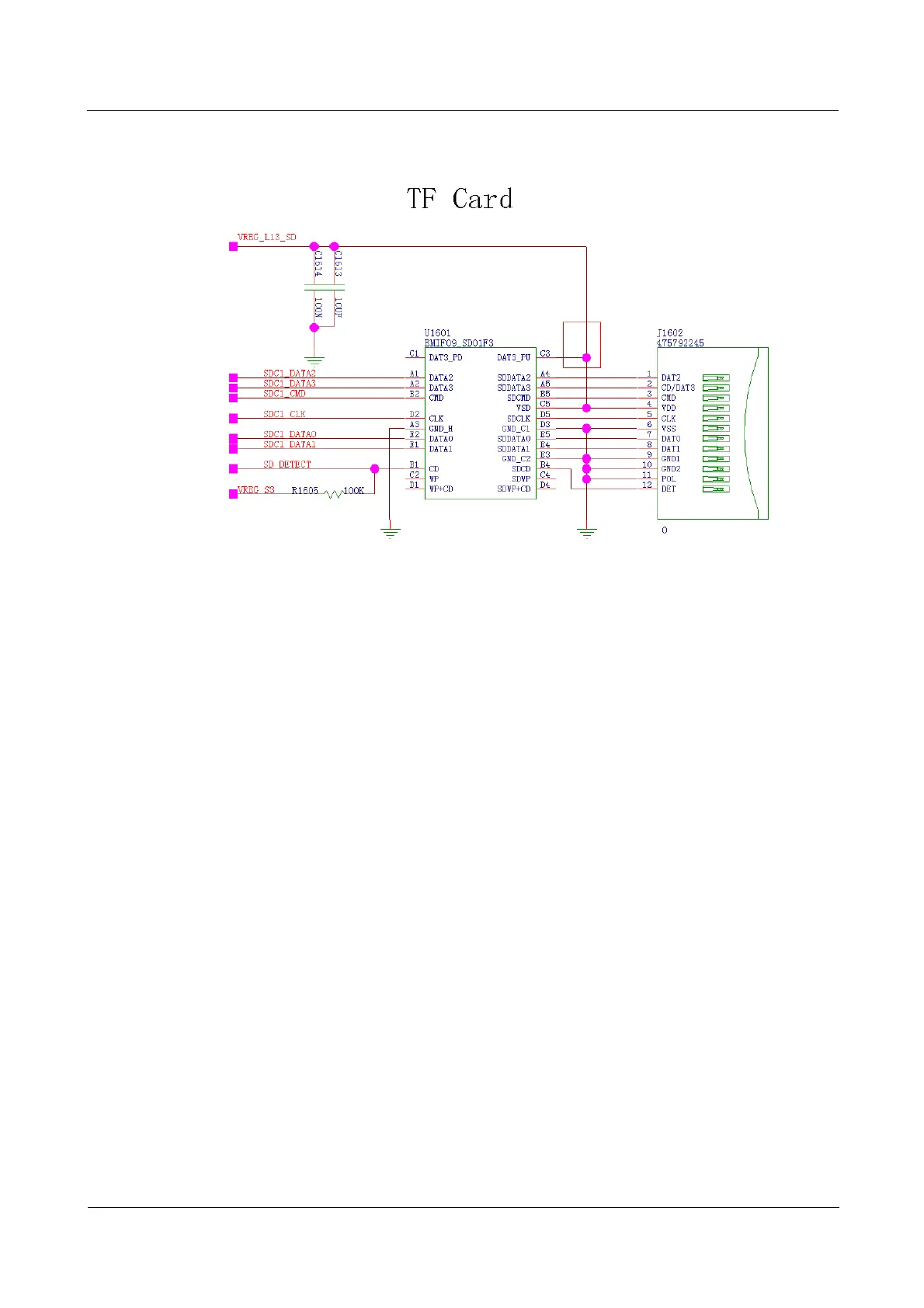

Figure 9-49 microSD card connector circuit diagram



Analysis

U1601 is added to prevent electrostatic and for EMI filtering.



Troubleshooting Process

Failure: The microSD card cannot be detected or read.

Solution:

Figure 9-50 shows the troubleshooting process for micorSD card read failure.
