U8815

Maintenance Manual

10 Solder Points on the PCB and BGA Chip

Issue 1.0 (2012-02-13)

Huawei Proprietary and Confidential

10 Solder Points on the PCB and BGA

Chip

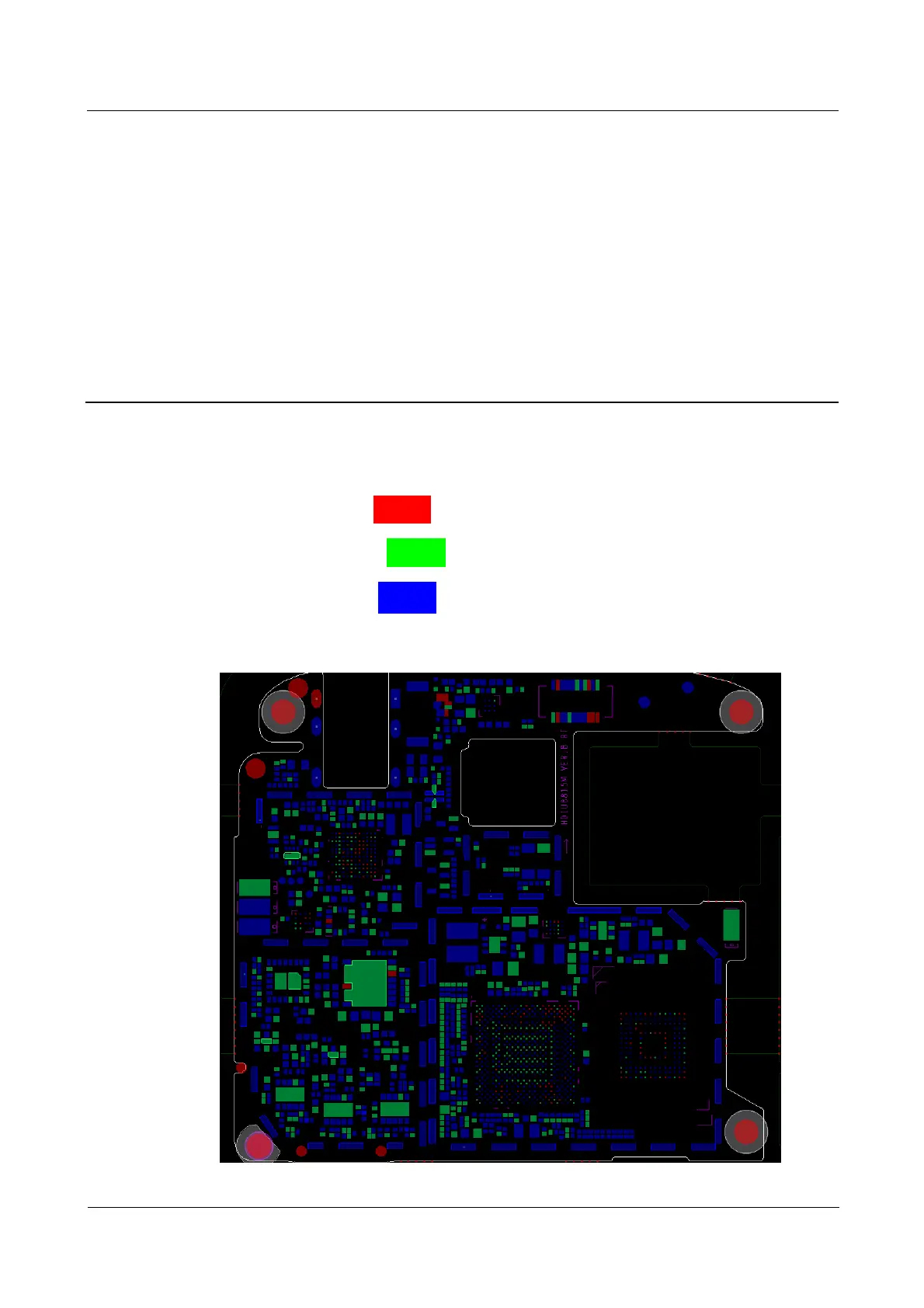

The following figures show the solder points on the PCB and BGA chip.

Red (R:255, G:0, B:0) : Vacant point

Green (R:0, G:255, B:0) : Ground point

Blue (R:0, G:0, B:255) : Solder point

Figure 10-1 Diagram 1 of the solder points on the PCB and BGA chip
