• Move the ODU in the installation area. Observe the signal indicator to
select a location with best signal quality (strong LTE signals).
• For other indicator statuses, see the following table.
Color
O
Green
Green
Blue
Yellow
Yellow
Red
LED Status
Steady on
Blinking
Blinking
Steady on
Steady on
Steady on
Blinking
An error occurs, the device is faulty, or there is no SIM card.
Upgrading
Booting up
Strong LTE signals; recommended for installation
Medium LTE signals; suitable for installation
Weak LTE signals; recommended for location reselection
No LTE signals are available, the device is searching for signals, or the device is disconnected.
Status Indication
Powered o
Either a 12 V or 19 V power adapter can be used by the B2368.
@2
LAN
WAN/PWR
2. Insert a micro-SIM (3FF) card to the ODU.
3. Connect cables and power on the device.
4. Select a location with best signal quality.
Reset button:
Press for 3s to 10s to reboot the device.
Press for more than 10s to restore the
device to factory settings.

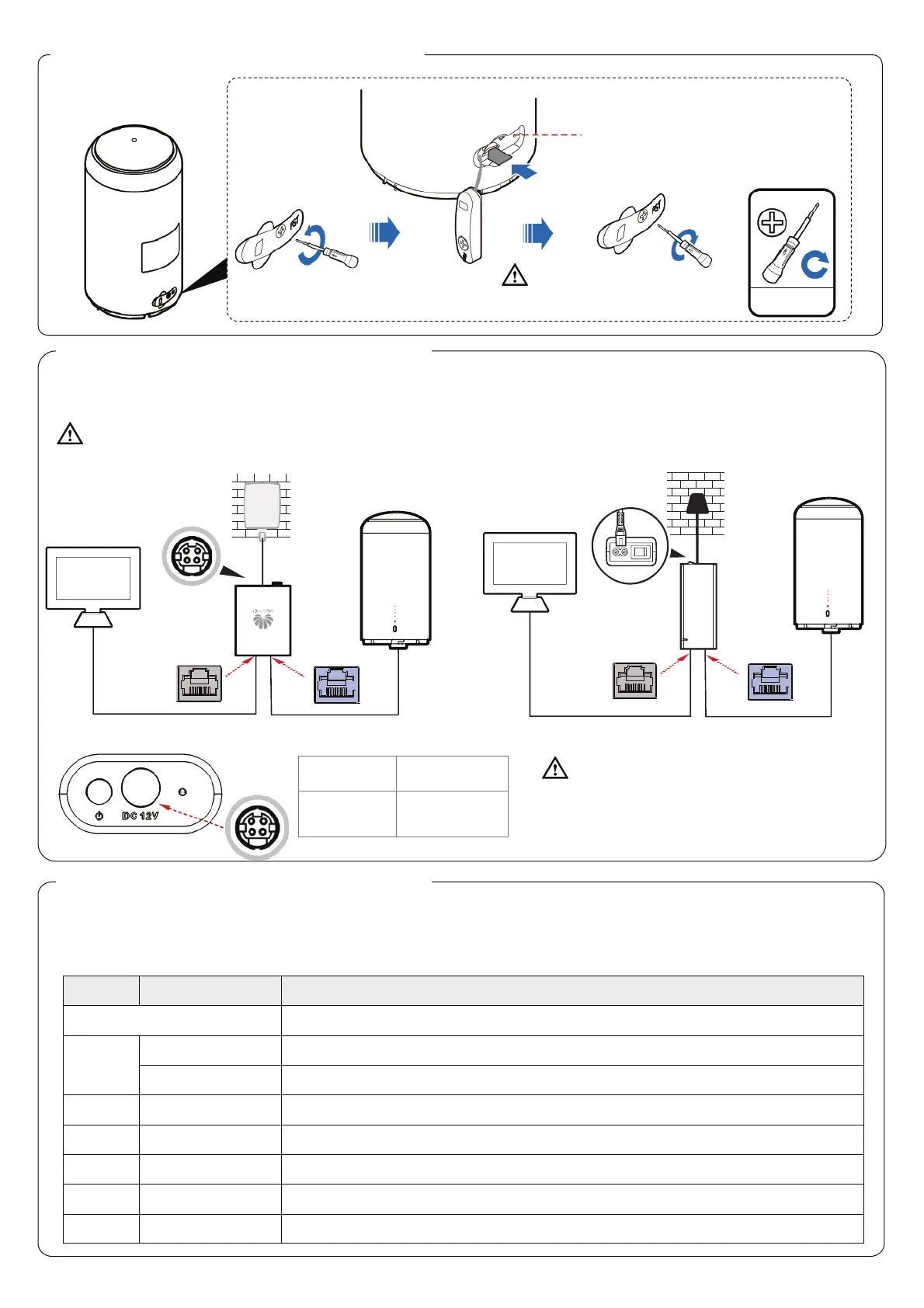

Scenario 1: 12 V PSU
CAUTION
Automatic IP address obtaining needs
to be congured for PCs/user terminals.
CAUTION
The WAN/PWR interface can be
connected to only the ODU. This
interface may damage the PCs or
other devices.
Power
Adapter
PC/user terminal
PSU indicators
12 V DC
LAN
PSU(12 V)
WAN/PWR
Pressed
Released
Powered on
Powered o
ODU
PC/user terminal
Power
supply
Adapter
(19 V)
AC
ODU
Indicator
Scenario 2: 19 V Power Supply Adapter
CAUTION
Tighten screws to prevent
water from entering the ODU.
0.6 N·m
