1 x outdoor unit
(ODU: B2368)
1 x board mounting kit
1 x quick start guide
4 x M6 expansion bolt
For mounting on a wall
2 x hose clamp
For mounting on a pole
(φ48 mm to φ114 mm)
1 x Cat5e Ethernet cable
For connecting the PSU and PC
1 x waterproof connector
M6 inner hexagon
wrench
Screwdriver
Adjustable wrench
Cat5e Ethernet cable 1
For connecting the ODU and PSU
Rubber hammer
Optional for mounting
on a wall
Percussion drill
1 x power supply
unit (12 V)
1 x power adapter 1 x power supply
Adapter (19 V)
Or

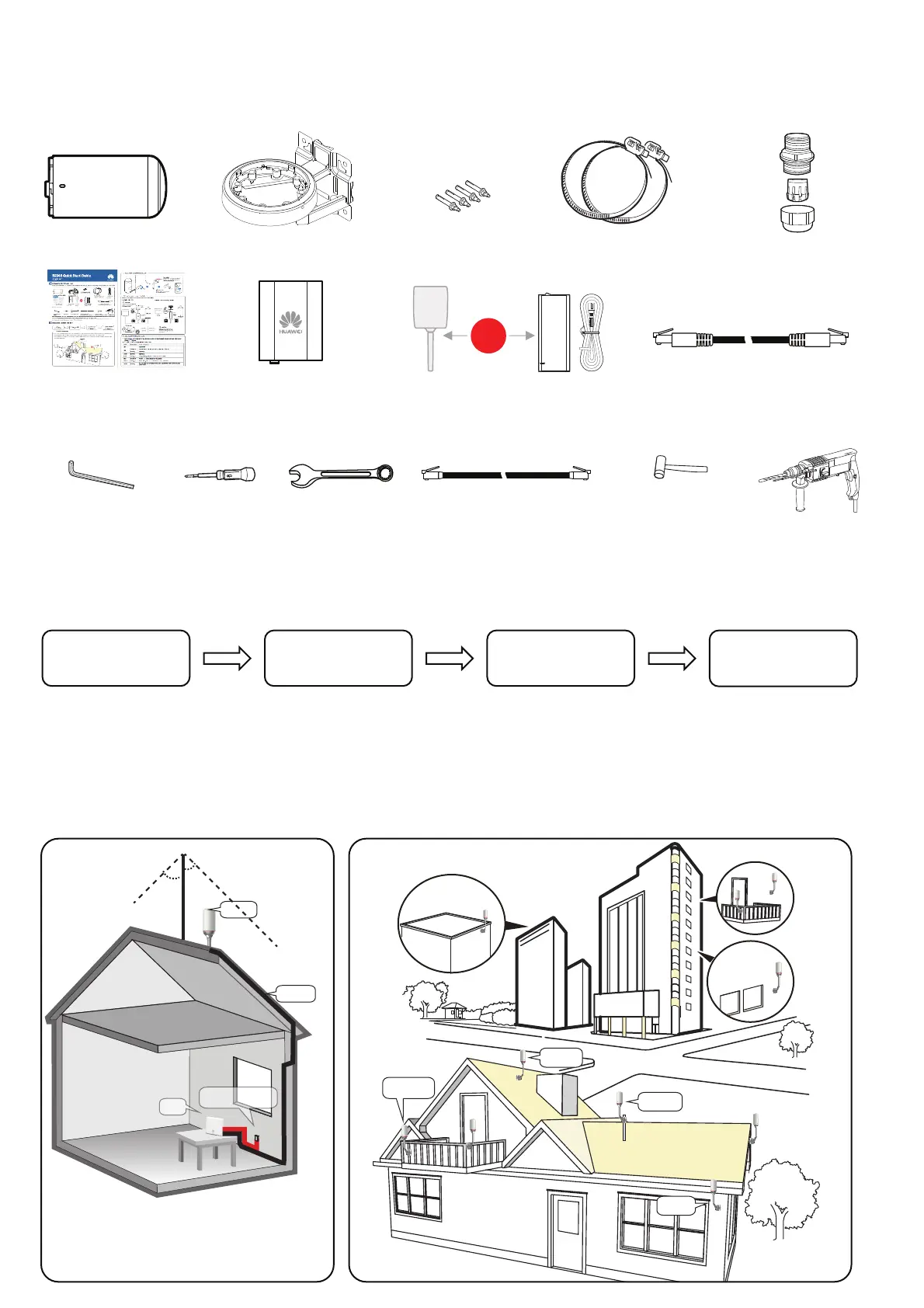

1. Installation Materials and Tools
Packing list: Before installing the CPE, verify that you have all the items listed in the packing list.
If any of the items is missing or damaged, contact your LTE device provider.
Prepare the following tools:
If you need to install mounting kits on wood materials, prepare screws (recommended model: ST4.2 with length ≥ 25 mm).
1An outdoor Ethernet cable requires a PVC conduit and must be installed far away from the parapet and lightning strip
(recommended distance: more than 0.5 m). If an Ethernet cable is routed within a street lamp pole, no PVC conduit is required.
2. Installation Location Selection
1. Find an
installation area.
2. Insert the
SIM card.
3. Connect cables
and power on
the device.
4. Select a location
with best signal
quality.
An ODU is an LTE wireless signal reception and transmission unit. Pay attention to the following points when selecting an
installation location:
• You are advised to install an ODU in a recommended location, such as a balcony or a wall shown in the following gure.
• You are advised not to install an ODU on an open rooftop or platform, as indicated by red crosses in the following gure.
Otherwise, ODU performance deteriorates.
1. Find an installation area.
Basic connection Recommended locations
Roof
Roof
Pole
IDU
Cat5e
ODU
Wall
Wall
Power supply
Balcony
Balcony
lightning rodsLightning rod
45°
45°
IDU and ODU cables can be routed outdoors through
existing holes (such as those for air conditioning) on
walls or windows, or through dedicated holes drilled
professionally.
