Huawei Display 23.8 User Manual

Installing the display
To avoid damaging the screen, do not press on the screen when taking the display panel
out of the packaging.
1 3
2

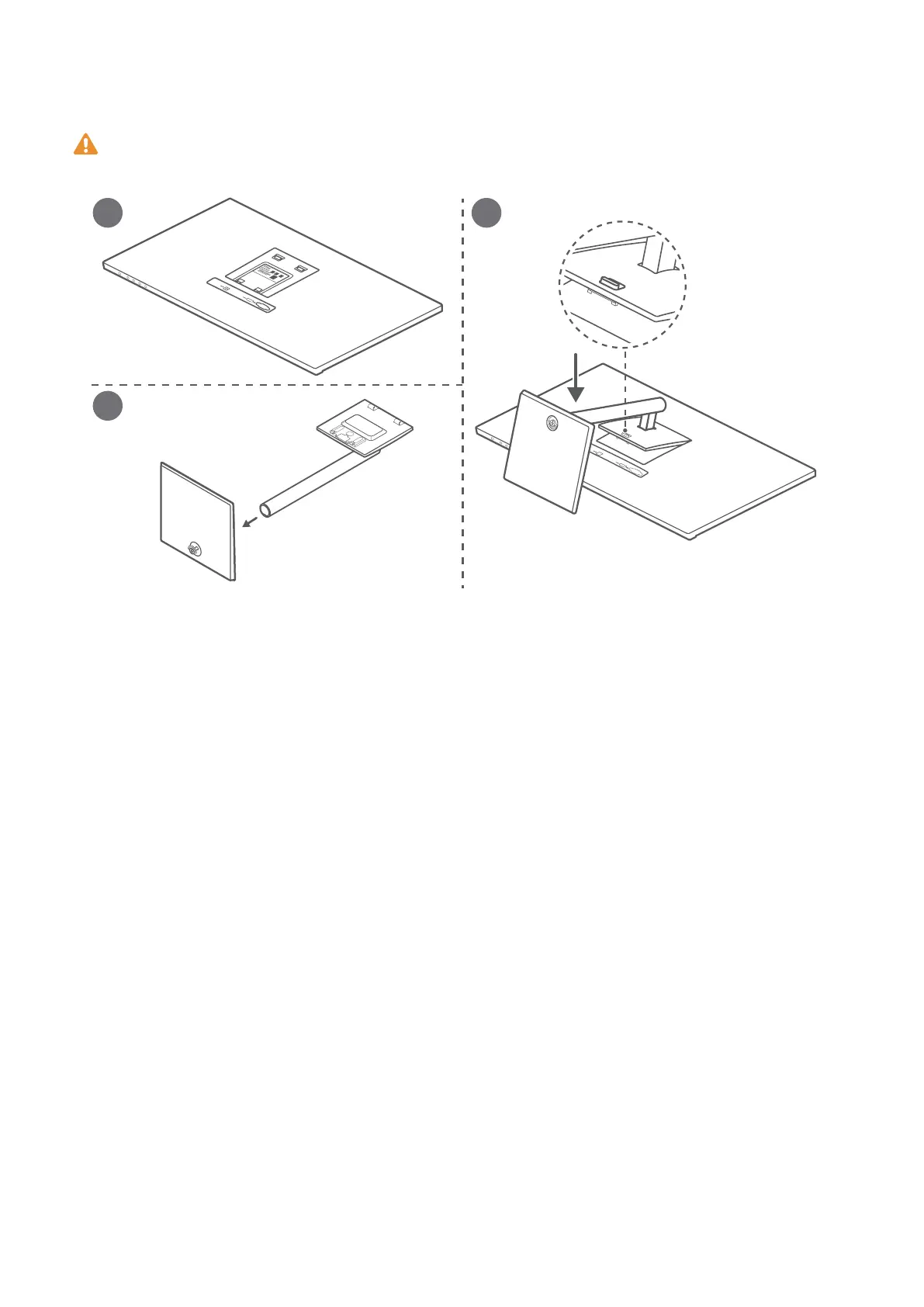

1 Place the display panel on a clean and at surface, with the front side facing down. (You
can view device information including the S/N code on the nameplate on the rear side of
the display panel.)
2 Use screws to connect the base to the support.
3 Tilt and insert the upper end of the base support into the slot at the rear of the display,
and then press the base support downwards until you hear a clicking sound, which
indicates that the base support has been installed correctly.
To remove the base,
nd the button above the port at the rear of the display, push the
button upwards, lift the bottom of the base support, and remove the base.
3

Huawei Display 23.8 Specifications

General

Screen shape	Flat
Backlight type	LED
Display diagonal	23.8 \
Display technology	-
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
NTSC coverage (typical)	72 %
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	60.5 cm
Display brightness (typical)	250 cd/m²
HDMI	Yes
Tilt angle range	-5 - 22 °
Panel mounting interface	100 x 100 mm
Energy efficiency scale	A to G
Power consumption (typical)	- W
Product color	Black
Cables included	DC, HDMI
HDMI cable length	1.5 m
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	170 mm
Width (with stand)	538.5 mm
Height (with stand)	425 mm
Weight (with stand)	4050 g
