User Manual
EchoLife HG520 Home Gateway
Chapter 5 Advanced Setup
Huawei Technologies Proprietary
41
The screen allows you to create a filter rule to identify outgoing IP
traffic by specifying a new filter name and at least one of the conditions
below.
All of the specified conditions in this filter rule must be satisfied for
the rule to take effect.

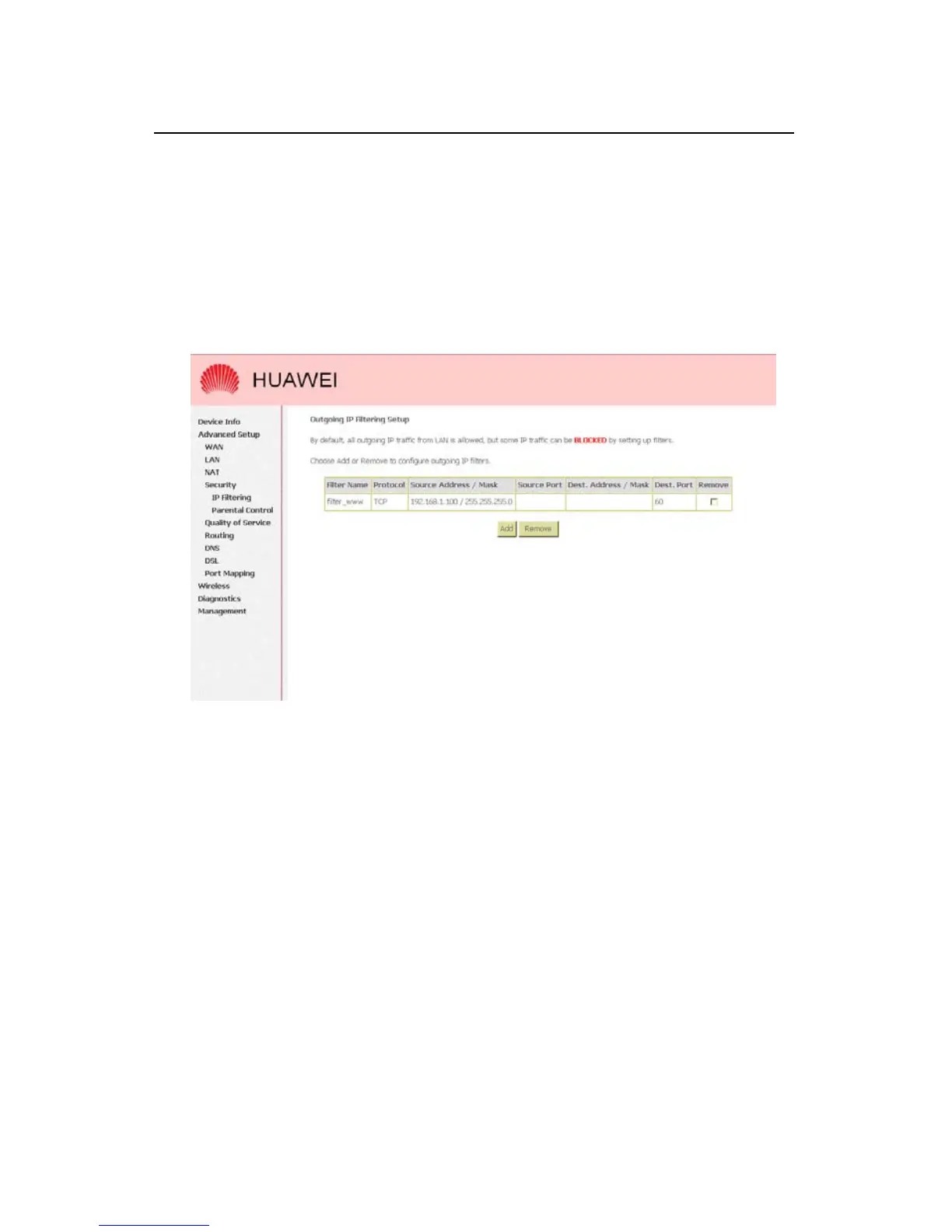

Figure 5-7 Advanced Setup – Security – Outgoing IP Filtering
1)
Click <Add> to configure out
going IP filters, up to 32 entries can be configured.
2) To remove, check the item and click <Remove>.
3) Click <Save/Apply> to save and activate the filter.
Figure 5-8 shows the configuration that prevents a local computer
(IP address: 192.168.1.100) from surfing the Internet.
