User Manual
EchoLife HG520 Home Gateway
Chapter 8 Management
Huawei Technologies Proprietary
83

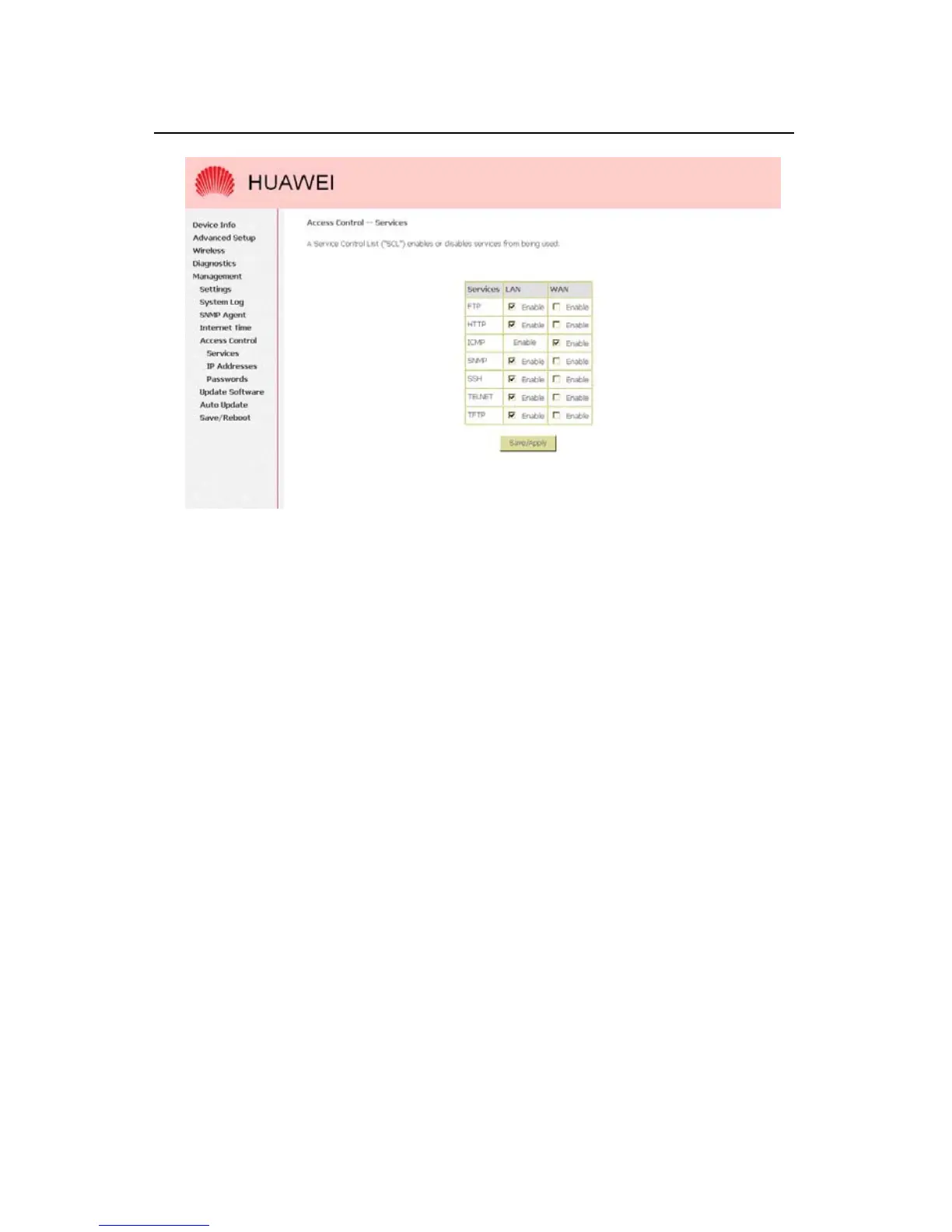

Figure 8-9 Management – Access Control - Service
If the IP Address Access Control mode is enabled, permits
access to local management services from IP addresses contained in
the Access Control List.
If the Access Control mode is disabled, the system will not
validate IP addresses for incoming packets. The services are the
system applications listed in the Service Control List.
Click <Add> to add an IP address to the Access Control List. To
remove, mark the Remove option of the specified IP address, and
then click <Remove> to remove the IP address from the Access
Control List.
Up to 16 hosts can be configured here.
