Table 1-13 Description of ports and buttons on the rear panel of the HG8110H
Port/Button Function
OPTICAL
Indicates an optical port. The optical port is equipped with a
rubber plug and is connected to an optical fiber for upstream
transmission.
The type of the optical connector connected to the OPTICAL
port is SC/APC.
LAN
Indicates auto-sensing 10/100/1000M Base-T Ethernet ports
(RJ-45), used to connect to PCs or IP set-top boxes (STBs).
TEL
Indicates VoIP telephone ports (RJ-11), used to connecting to
the ports on telephone sets.
POWER
Indicates the power port, used to connect to the power adapter
or backup battery unit.
ON/OFF
Indicates the power button. It is used to power on or power off
the device.

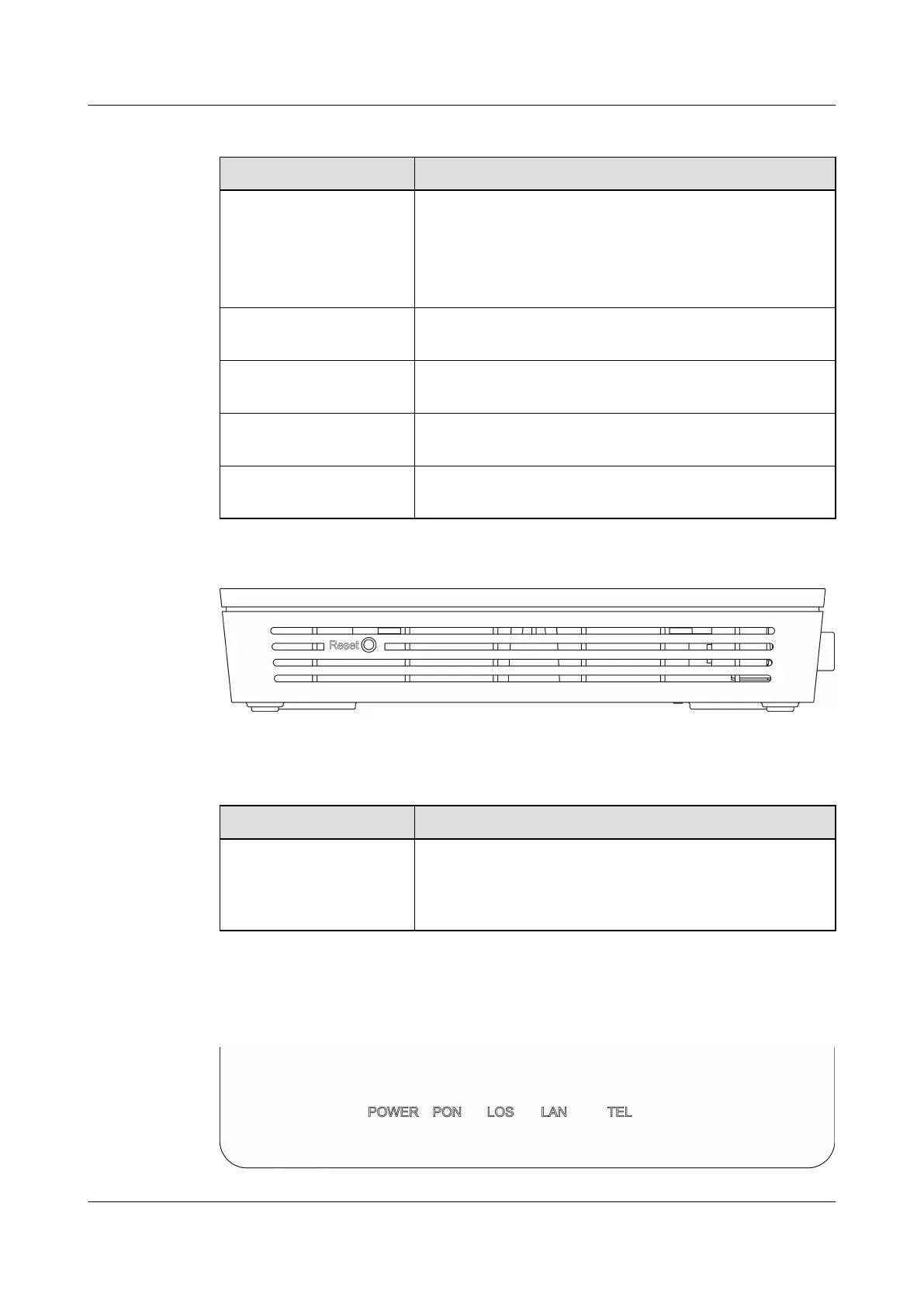

Figure 1-14 Ports and buttons on the side cover of the HG8110H
Table 1-14 Description of ports and buttons on the side cover of the HG8110H
Port/Button
Function
RESET
Indicates the reset button. Press the button for a short time to
reset the device; press the button for a long time (longer than
10s) to restore the device to the default settings and reset the
device.
LEDs
Figure 1-15 LEDs on the HG8110H
EchoLife HG8242H/HG8240H/HG8240F/HG8110H GPON
Terminal
Product Description 1 Introduction
Issue 01 (2013-08-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14
