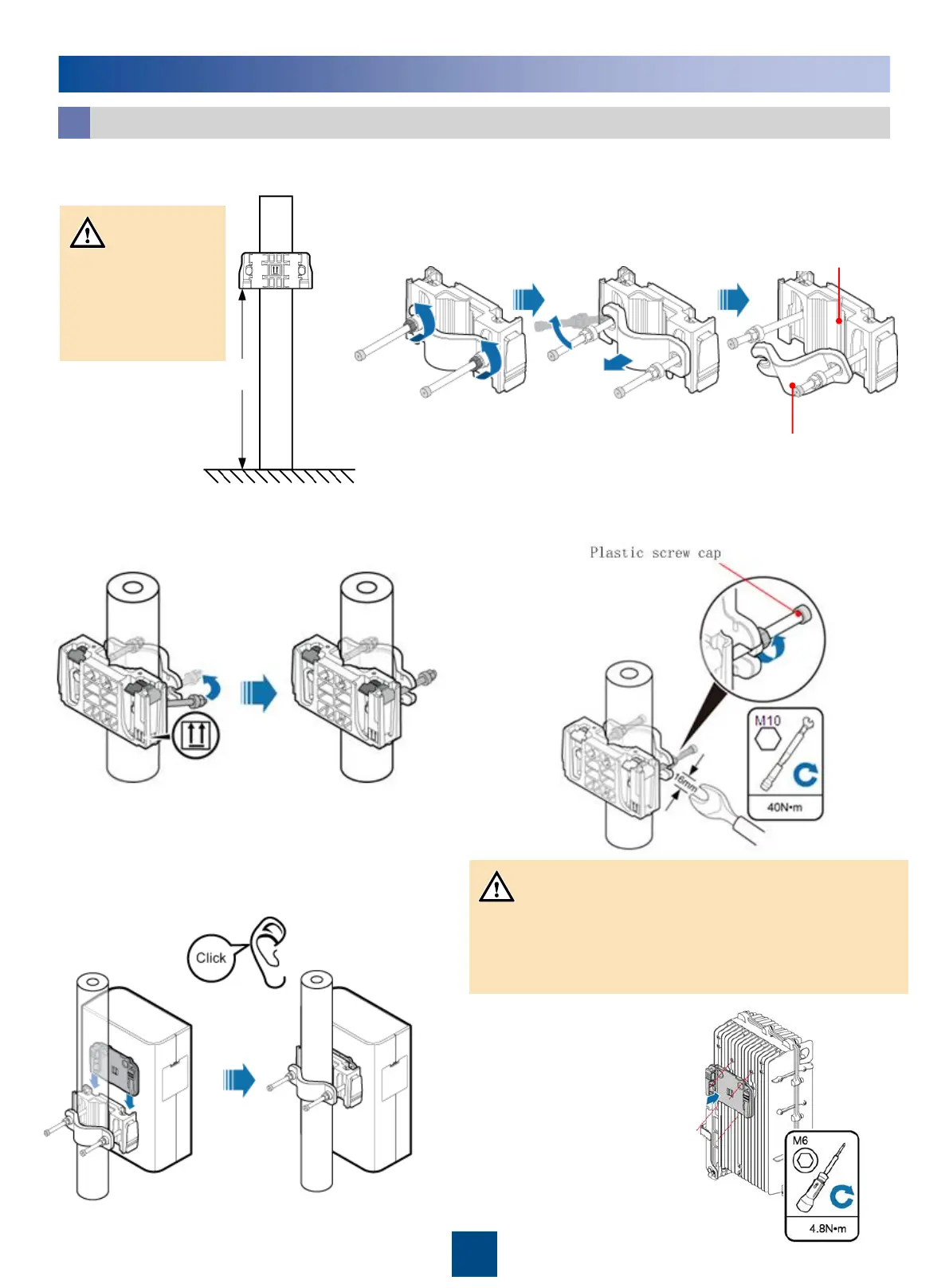

Installing a single RRU
a
1200 mm to 1600 mm
1. Determine a position for installing
the mounting kits.
Installing eRRUs on a Pole (60 mm ≤ Pole Diameter ≤ 114 mm)
Check whether the
hoist clamp on the
main mounting
bracket is secured
properly.
CAUTION
2. Loosen the two M10 nuts on the mounting
kits, and horizontally remove one end of the
M10 bolt from the U notch.
3. Install the bracket assembly on a pole. Then,
place the removed end of the bolt into the U notch.
5. Install the RRU on the main mounting
bracket until the RRU snaps shut.
- Do not remove the plastic screw caps from the bolts on the mounting kits.
- Tighten the two dual-nut bolt assemblies alternatively. After the main and
auxiliary mounting bracket are secured properly, measure the spacing between
the brackets on both sides and ensure that the spacing is the same on the two
sides.
Auxiliary mounting
bracket
Main mounting
bracket
4. Tighten the nut to secure the bracket assembly
to the pole.
Install the Attachment plate on
eRRU3251,eRRU3253,
eRRU3255.
CAUTION
To Next Page
