3

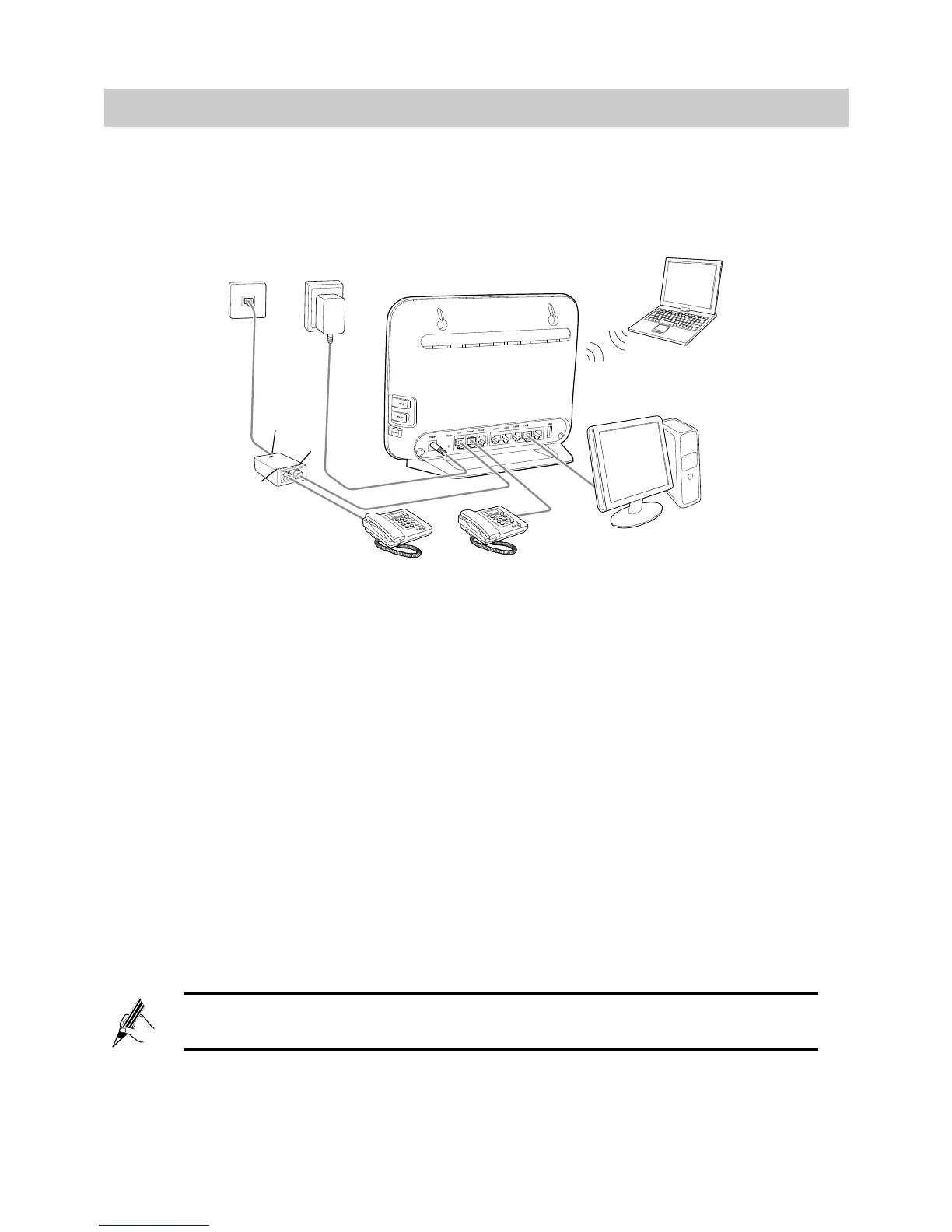

1.3 Connecting Cables Using the DSL Port
Connecting Cables
If there is at least one telephone jack available in your home, you can access
the Internet using digital subscriber line (DSL) services.
1 Telephone wall jack 2 Power adapter 3 Splitter
4 Telephone 5 Desktop computer 6 HG658c
7 Laptop computer
a LINE port b MODEM port c PHONE port
Getting Started
After connecting the cables, press the On/Off button on the side panel to power
on the HG658c.
After you power on the HG658c, the Power indicator turns on. The WAN
indicator lights up and starts blinking. This indicates that the DSL port activation
is in progress. The blinking may last less than 3 minutes. When the WAN
indicator stops blinking and remains on, the HG658c is working properly.
To power off the HG658c, press the On/Off button on the side
panel, and then unplug the power adapter.
