Connection points are as following
1. Optical port in the wall = connect Media Optical port
2. PC = connect PC
3. Wi-Fi terminal = connect Wireless
4. IP set-top box (STB) = connect set-top box
5. TV set = connect TV
6. Telephone set = connect telephone set
7. Fax machine = connect Fax
8. Power adapter = connect Power adaptor
9. Backup battery unit = connect backup battery
10. USB storage device = connect USB Storage

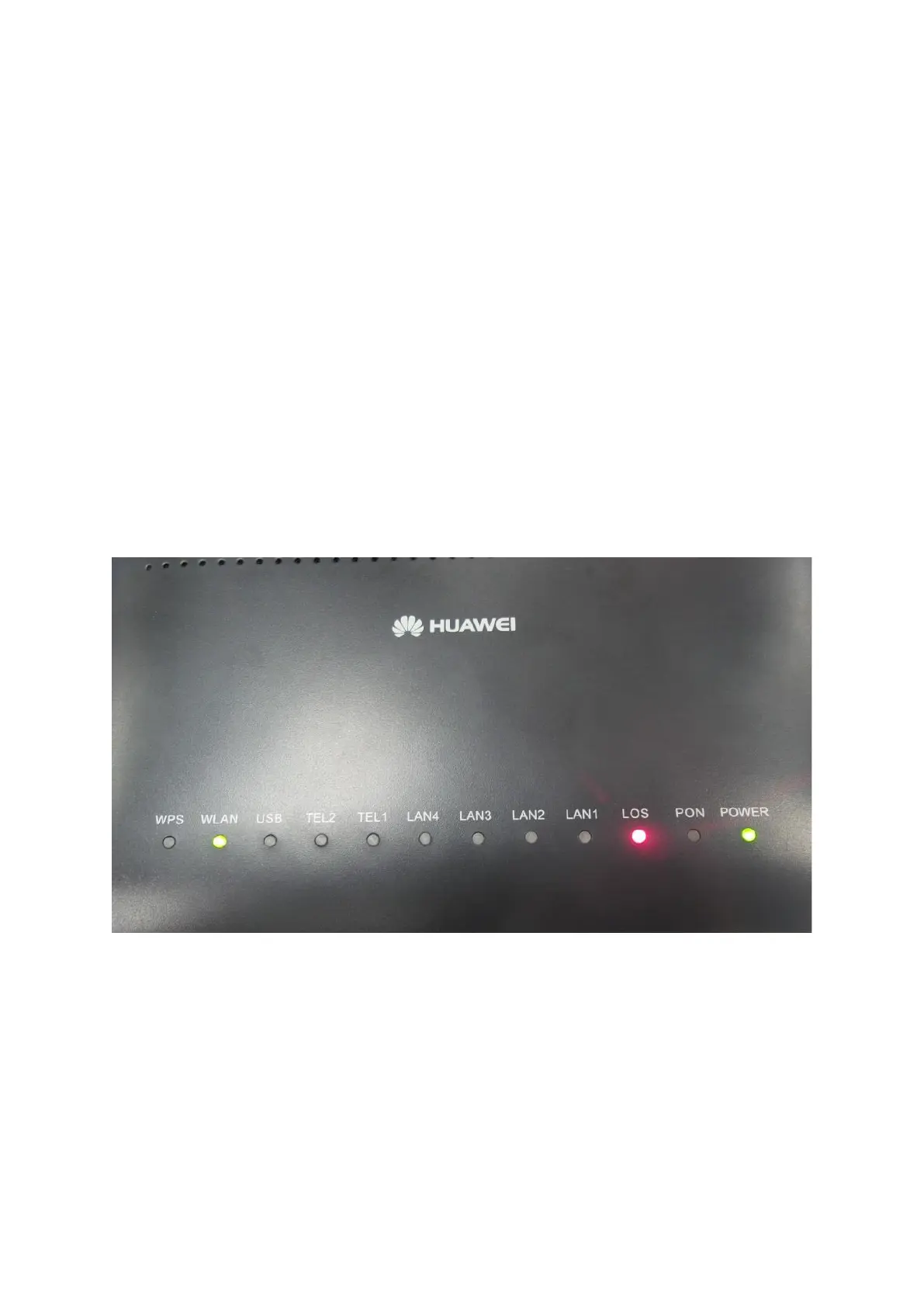

3. Modem status only LOS and PON
