3

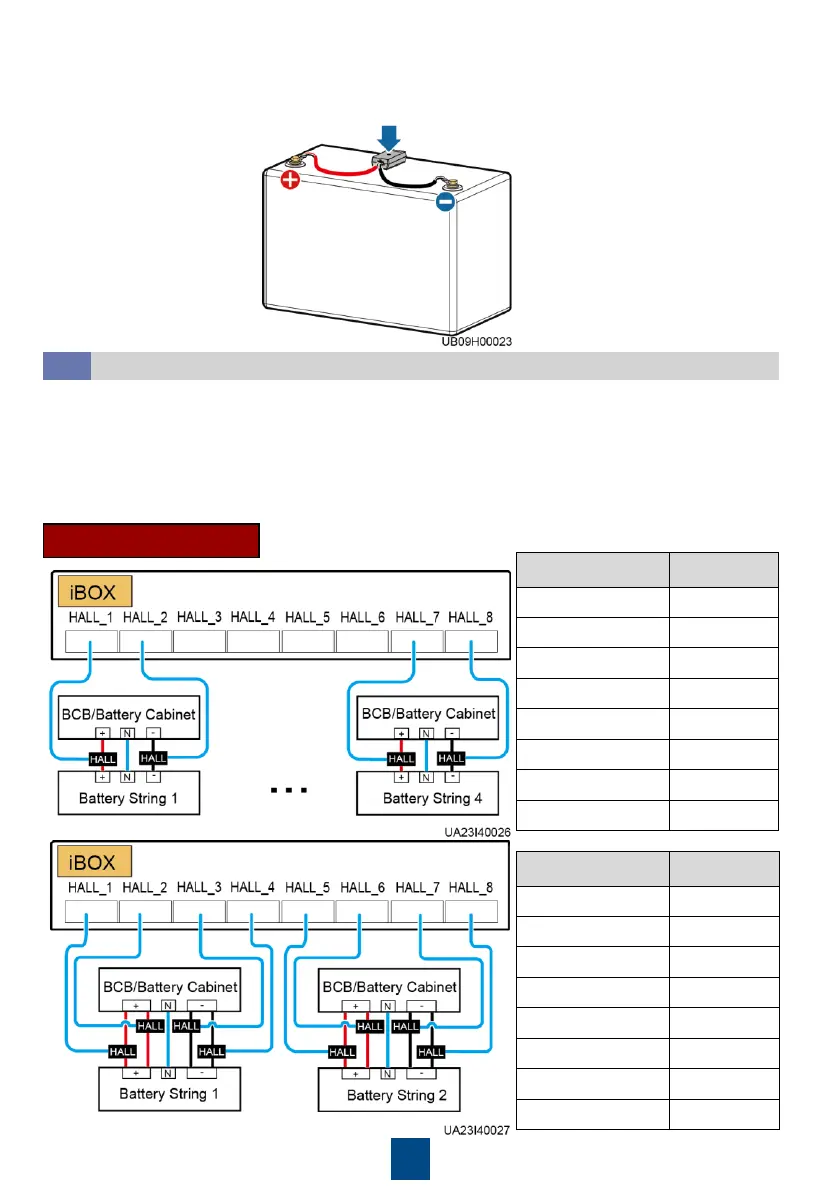

• Install Hall effect sensors. If the battery string has a neutral wire, install a Hall effect sensor on
each of the positive and negative cables. If the battery string does not have a neutral wire, install
a Hall effect sensor on the positive or negative cable.
• The arrow direction of the Hall effect sensor must be the same as the current direction when the
batteries are being charged. It is not recommended to install Hall inside BCB box.
• If the positive (negative) terminal of a battery string has multiple cables, multiple Hall effect
sensors are required.
Installing Hall Effect Sensors
2.2
2. Insert the terminal into the iBAT port with force, and ensure that it is securely connected.
3. Attach the iBAT to the top or side of the battery based on the battery installation space. Press
the iBAT with your palm for more than 10 seconds to ensure that it is attached firmly and evenly.
With a neutral wire
Cable Label iBOX Port
Battery1+_HALL1 HALL_1
Battery1-_HALL2 HALL_2
Battery2+_HALL3 HALL_3
Battery2-_HALL4 HALL_4
Battery3+_HALL5 HALL_5
Battery3-_HALL6 HALL_6
Battery4+_HALL7 HALL_7
Battery4-_HALL8 HALL_8
Cable Label iBOX Port
Battery1+_HALL1 HALL_1
Battery1+_HALL2 HALL_2
Battery1-_HALL3 HALL_3
Battery1-_HALL4 HALL_4
Battery2+_HALL5 HALL_5
Battery2+_HALL6 HALL_6
Battery2-_HALL7 HALL_7
Battery2-_HALL8 HALL_8
To Next Page
