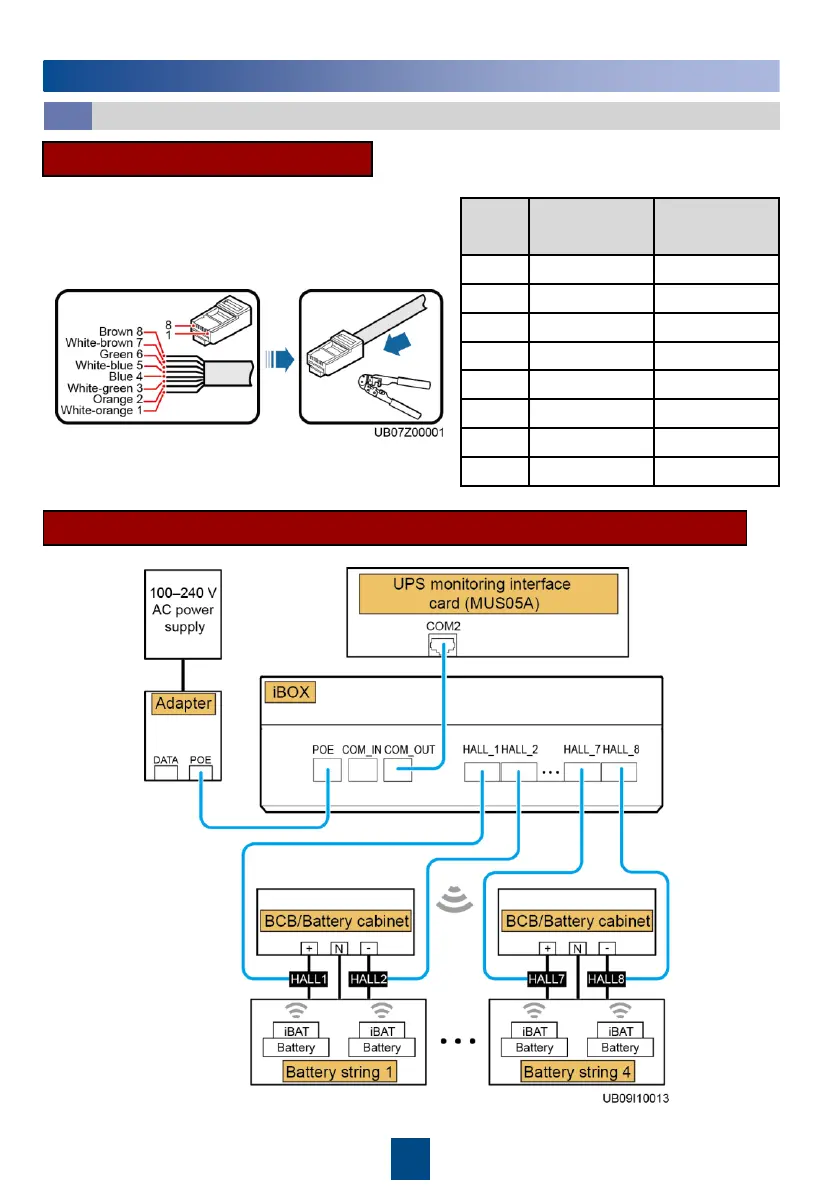

6
3
Cable Connections and Commissioning (UPS Scenario)
Connecting Cables
3.1
Preparing cables
• The PoE port and COM port are
connected to RJ45 straight-through cables.
• Prepare cables and terminals by yourself.
Pin
PoE
Port Pin
Definition
COM Port Pin
Definition
1
TX+
RS485+
2
TX
-
RS485
-
3
RX+
NC
4
48V+
RS485+
5
48V+
RS485
-
6
RX
-/GND
GND
7
48V
-
NC
8
48V
-
NC
One UPS is configured with one iBOX to manage four battery strings
