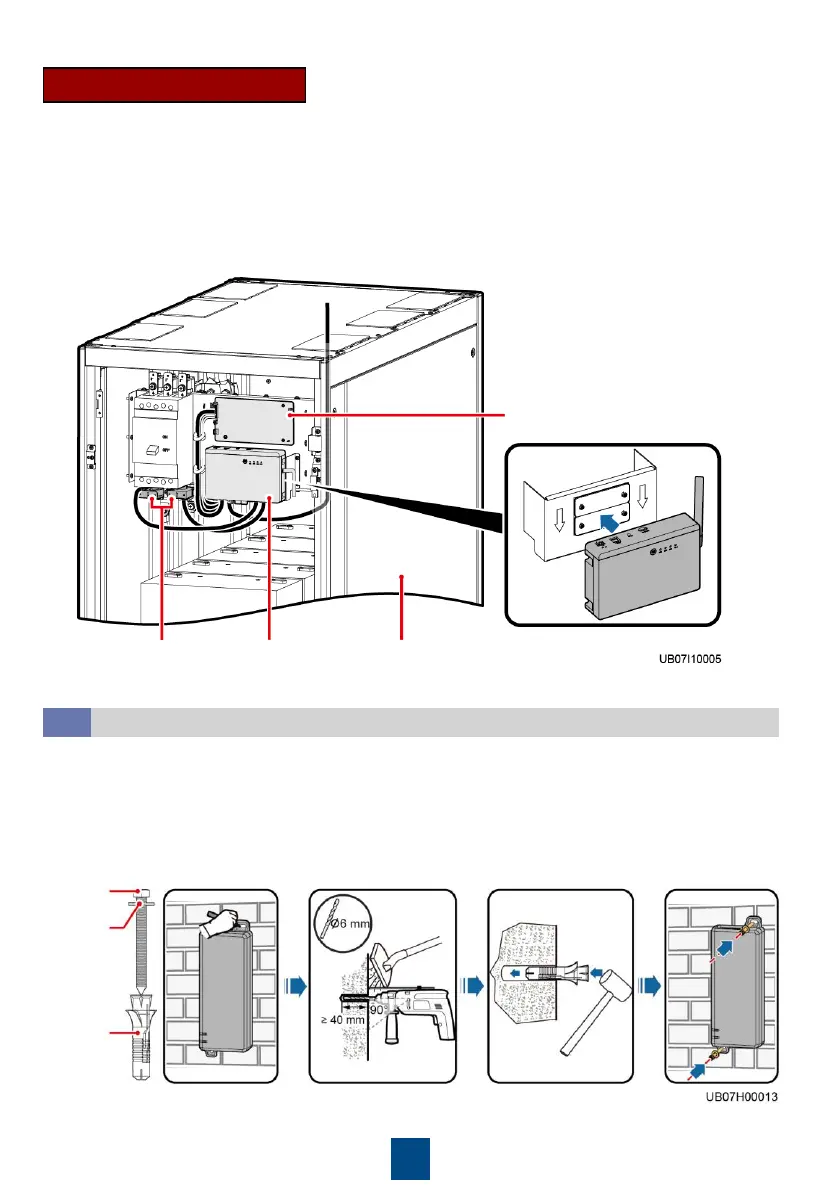

5
Battery
cabinet
BIB
iBOXHall effect
sensor
1. Remove the battery cabinet panel and knock off the cover on the iBOX indicator hole on the panel.
2. Install the antenna delivered with the iBOX. Ensure that the antenna is perpendicular to the floor.
3. Attach the fastener to the positioning frame of the fixing bracket, press the fastener for more than
10 seconds, and ensure that the fastener is attached firmly and evenly.
4. Mount the iBOX onto the fastener and ensure that the iBOX is securely installed.
ECC scenario
Installing an Adapter
2.4
Tapping
screw
Washer
Plastic
expansion
sleeve
Select a proper installation position for the adapter according to the actual layout.
Prepare ST3.5x35 tapping screws, washers, and M6x30 plastic expansion sleeves by yourself.
