HUAWEI ME909s Series LTE Mini PCIe Module
Hardware Guide
Mechanical Specifications
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

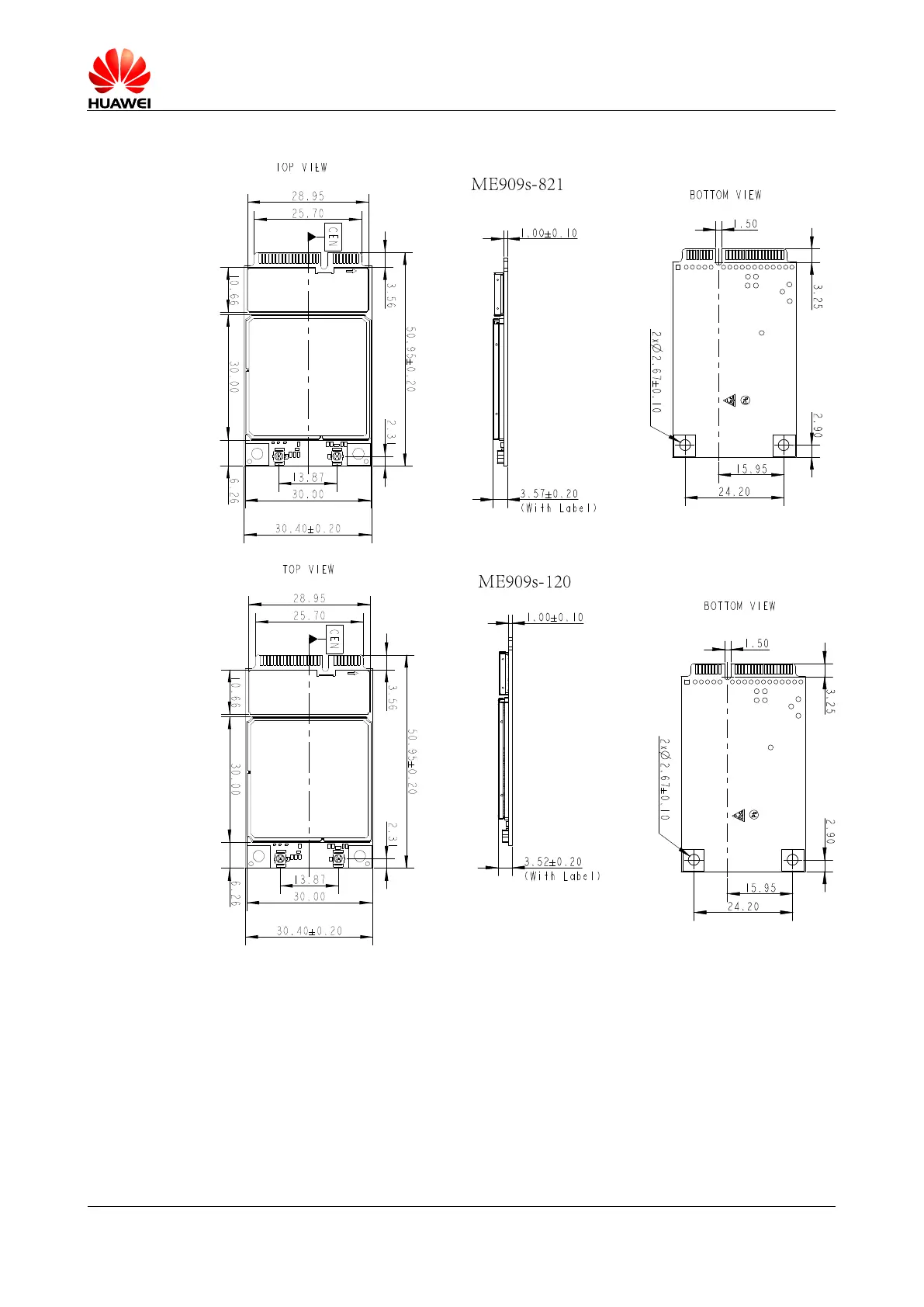

Figure 6-1 Dimensions (Unit: mm)
The Mini PCIe Adapter adopts a standard Mini PCI Express connector that has 52
pins and complies with the PCI Express Mini Card Electromechanical Specification
Revision 2.0. Figure 6-2 shows a 52-pin Mini PCI Express connector (take the Molex
67910002 as an example).
