Installing adjustable guide rails
2d
Scenario 1

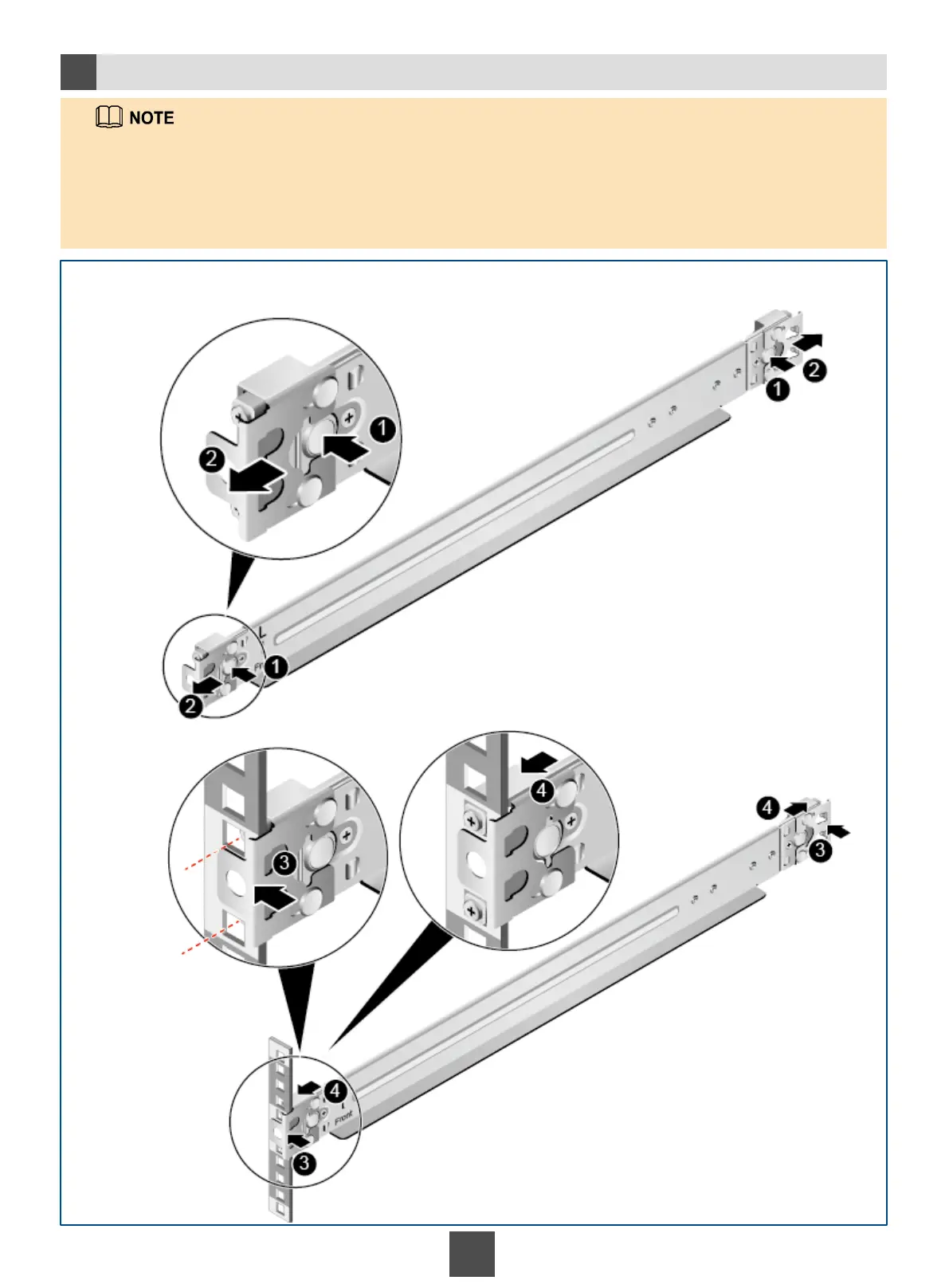

Attaching adjustable guide rails for a 1 U device
The adjustable guide rails are 600 mm (23.62 in.) to 900 mm (35.43 in.) long. They are designed to fit into
cabinets with depth ranging from 800 mm (31.50 in.) to 1200 mm (47.24 in.).
The adjustable guide rails are preconfigured with positioning pins applicable to square holes only. For
round holes, replace the positioning pins.
Two paired adjustable guide rails must be positioned exactly parallel to one another.
6
(1)
(2)
