Ground Points of the RTN 310 (Indoor PI)
Select ground points for the P&E cable.

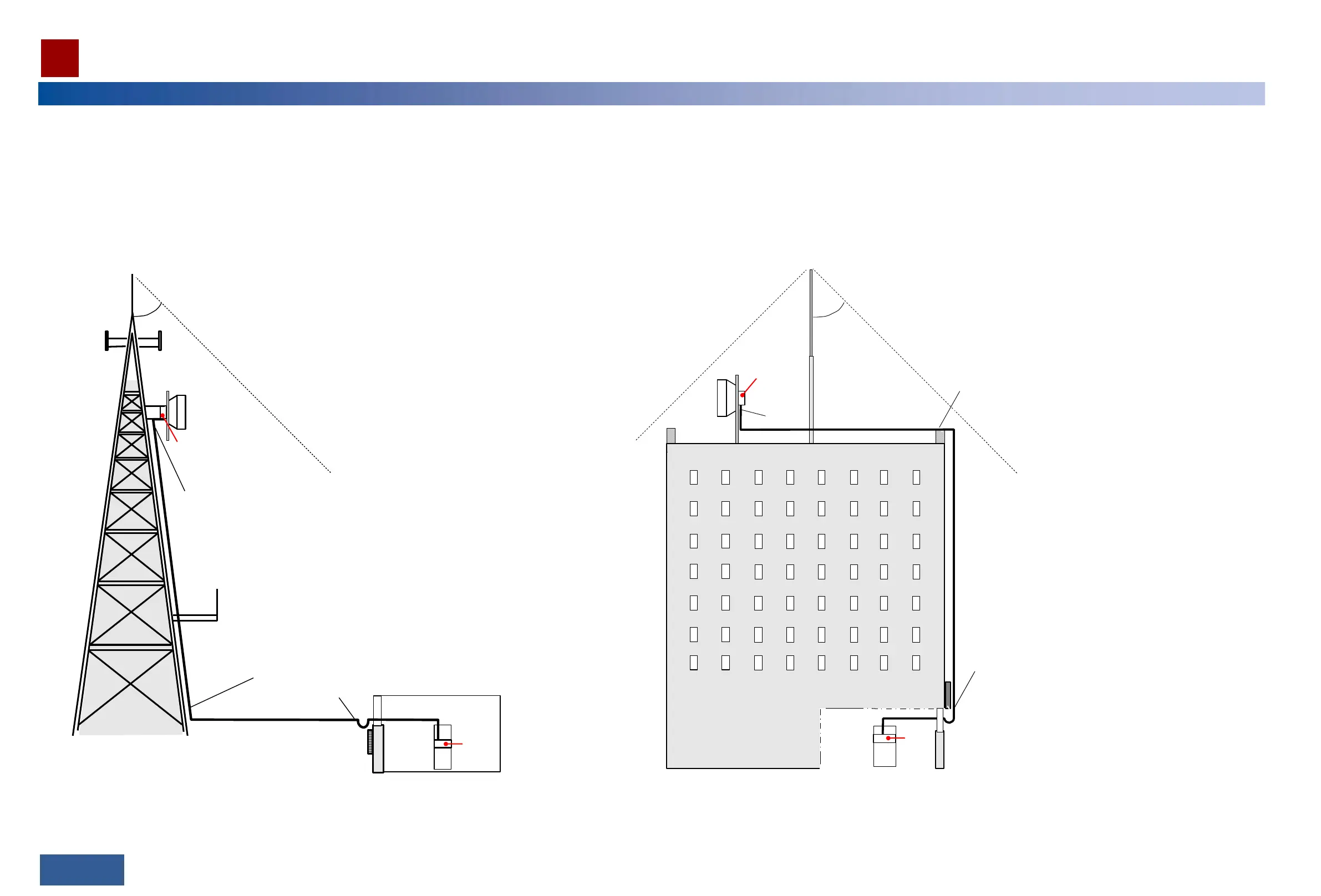

Ground the P&E cable at the following positions:
1. About 0.5 m to 1 m away from the port
2. About 1 m before the cable leaves the tower and runs toward the outdoor cable tray
3. About 0.5 m to 1 m before the cable is routed into the equipment room or outdoor cabinet
4. About 1 m before the cable leaves the roof cable ladder
4
5
°
3
2
1
RTN 310
PI
4
5
°
3
4
1
RTN 310
PI
Installation on a tower
Installation on a roof
