Huawei OptiX RTN 905 2E - Grounding Cable (PGND) Installation; PGND Cables for Cabinet Grounding; PGND Cables for Equipment Grounding

21
1

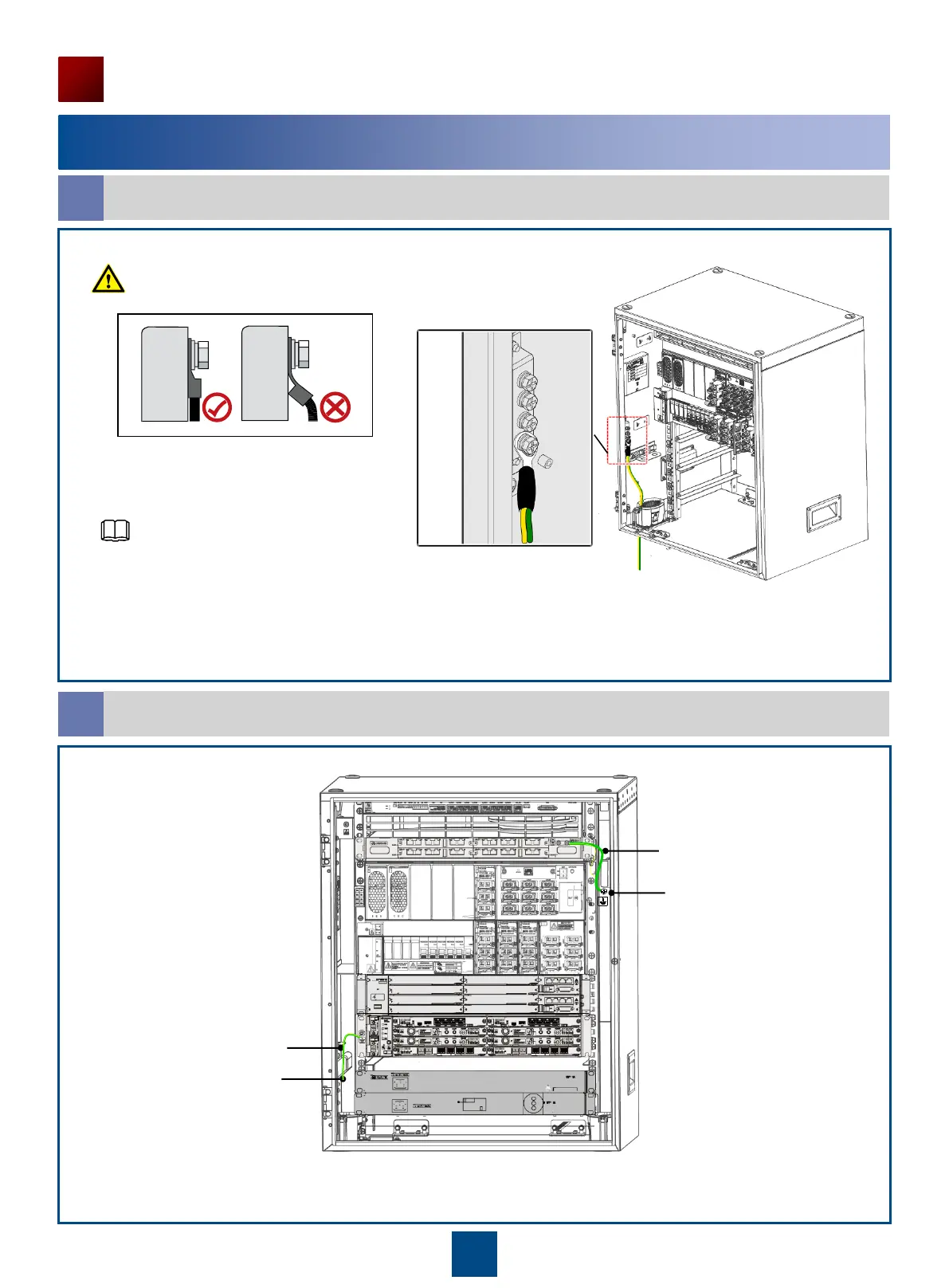

Installing the PGND Cables
Installing the PGND Cables for the Cabinet
a
Installing the PGND Cables for the Equipment
b
Installing and Routing the Cables
WARNING
• When installing the PGND cables in the
TMC11H cabinet, use the same method.
• The ground cables and signal cables must be
bound separately or must be separated from
each other to minimize mutual interference.
NOTE
Ground bar
PGND cable of the
SLPU
PGND cable of
the RTN 900
Ground bar
