2 Hardware Structure
2.1 R230D
Appearance
Figure 2-1 shows the appearance of the R230D.
The actual device appearance may be different from the following device appearance; these differences
will not affect device functions.

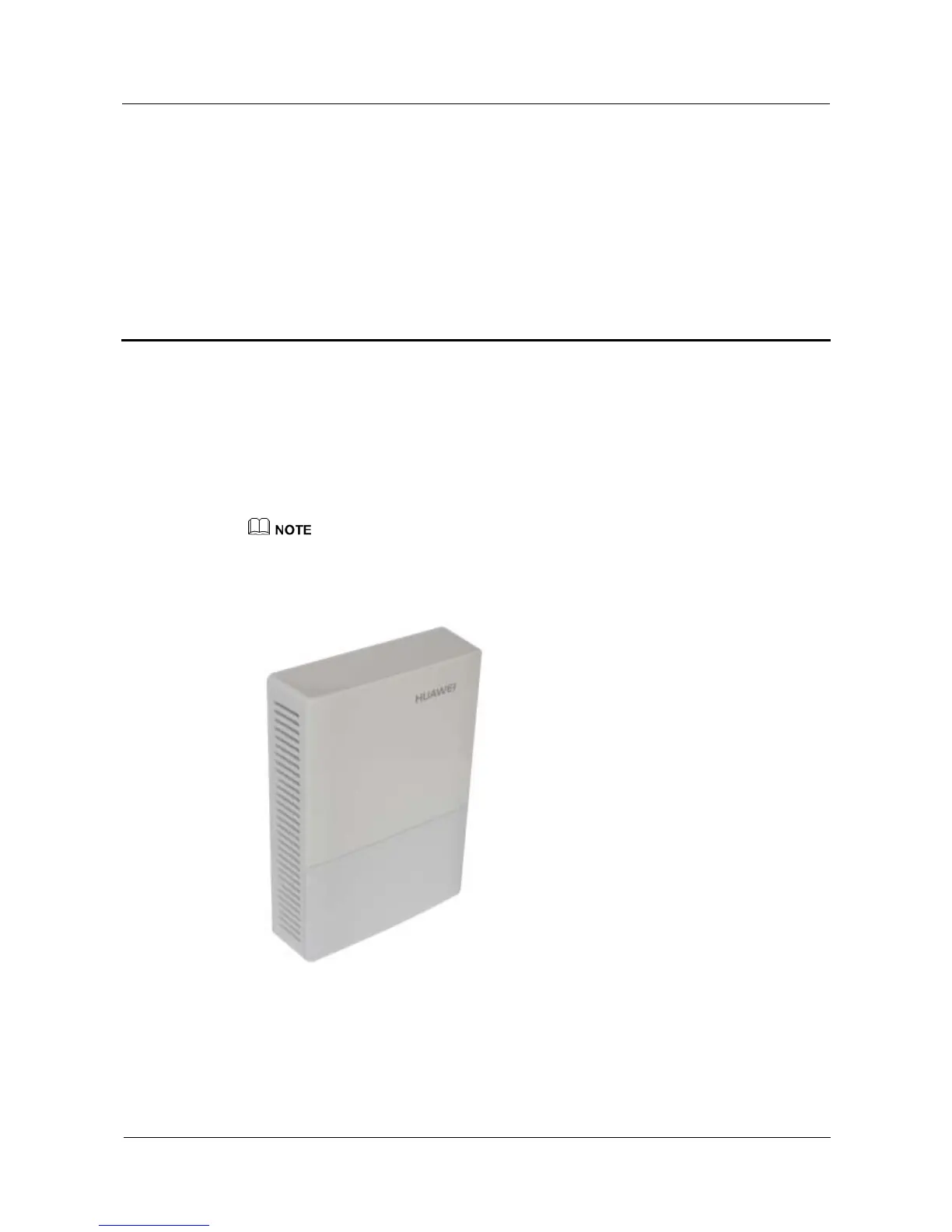

Figure 2-1 R230D appearance
Port
The following figure shows ports on the R230D.
