Indicators

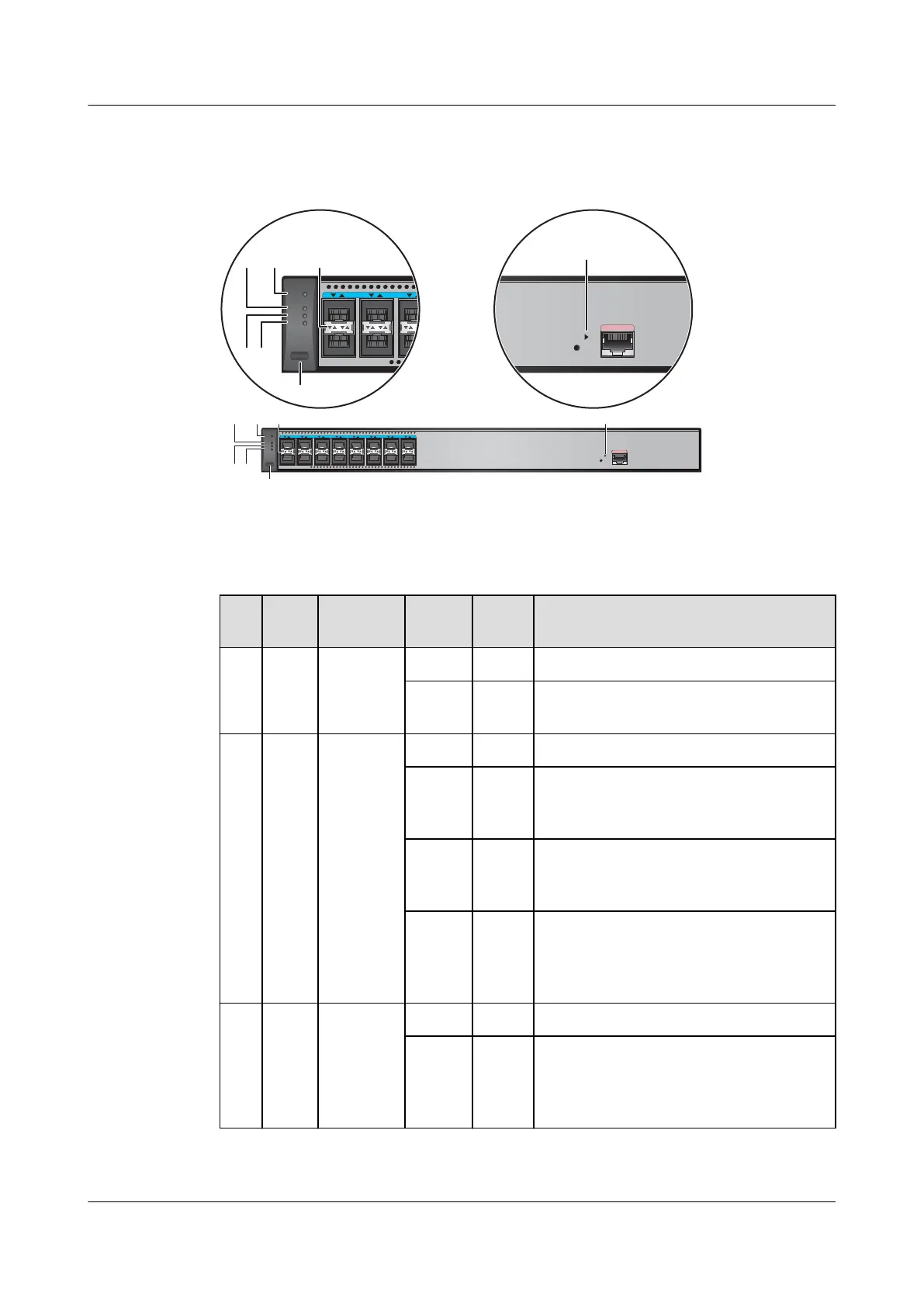

Figure 5-31 Indicators on the S1720X-16XWR
S1720X-16XWR
1234567891011 12 13 14 15 16
RST
MODE
HUAWEI
SPED
STAT
SYS
PWR
ETH
16 7
5
2
43
RST
7
S1720X-16XWR
12 345
MODE
HUAWEI
SPED
STAT
SYS
PWR
16
5
2
43
ETH
ETH
Table 5-35 Description of indicators on the switch
No
.
Indic
ator
Name Color Statu
s
Description
1 PWR Power
indicator
- O The switch is powered o.
Green Stead
y on
The system power supply is normal.
2 SYS System
status
indicator
- O The system is not running.
Green Fast
blinki
ng
The system is starting.
Green Slow
blinki
ng
The system is running normally.
Red Stead
y on
The system does not work normally
after registration, or a fan alarm or
temperature alarm has been
generated.
3 STAT Status
indicator
- O The status mode is not selected.
Green Stead
y on
The status mode (default mode) is
selected. If the status mode is
selected, the service port indicator
shows the port link or activity state.
