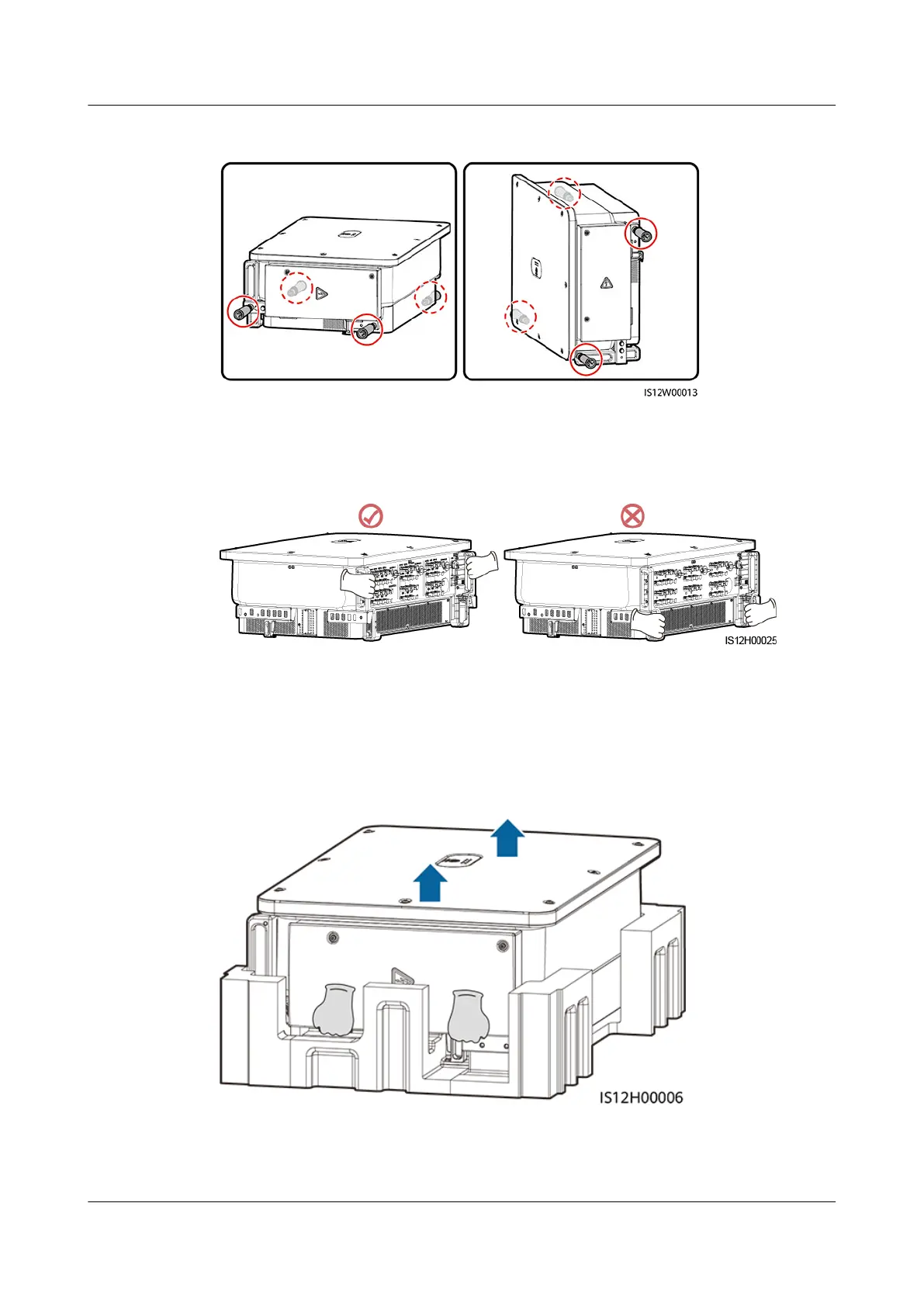

Figure 4-11 Positions for installing the handles
(A) Transportation scenario (B) Installation scenario
Figure 4-12 Lifting positions
Procedure
Step 1 Lift the solar inverter from the packing case and move it to the installation
position.
Figure 4-13 Taking out the solar inverter
Step 2 (Optional) Install screws for locking DC switches.
SUN2000-(75KTL, 100KTL, 110KTL, 125KTL) Series
User Manual 4 Installation
Issue 11 (2021-11-10) Copyright © Huawei Technologies Co., Ltd. 34
