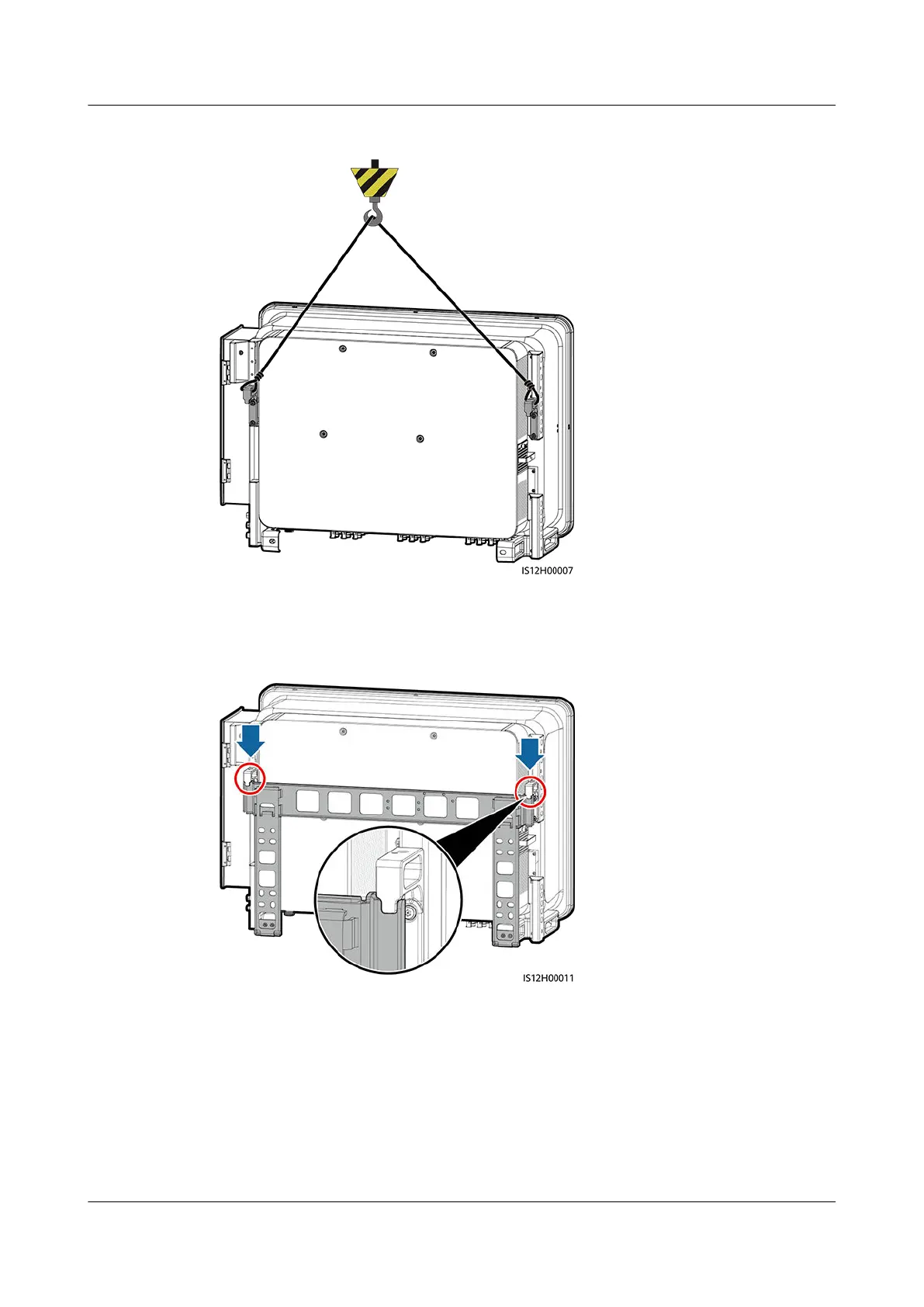

Figure 4-16 Hoisting the solar inverter
Step 5 Install the solar inverter on the mounting bracket and align the solar inverter
enclosure with the mounting bracket.
Figure 4-17 Mounting the solar inverter
Step 6 Secure the solar inverter.
SUN2000-(75KTL, 100KTL, 110KTL, 125KTL) Series
User Manual 4 Installation
Issue 11 (2021-11-10) Copyright © Huawei Technologies Co., Ltd. 36
