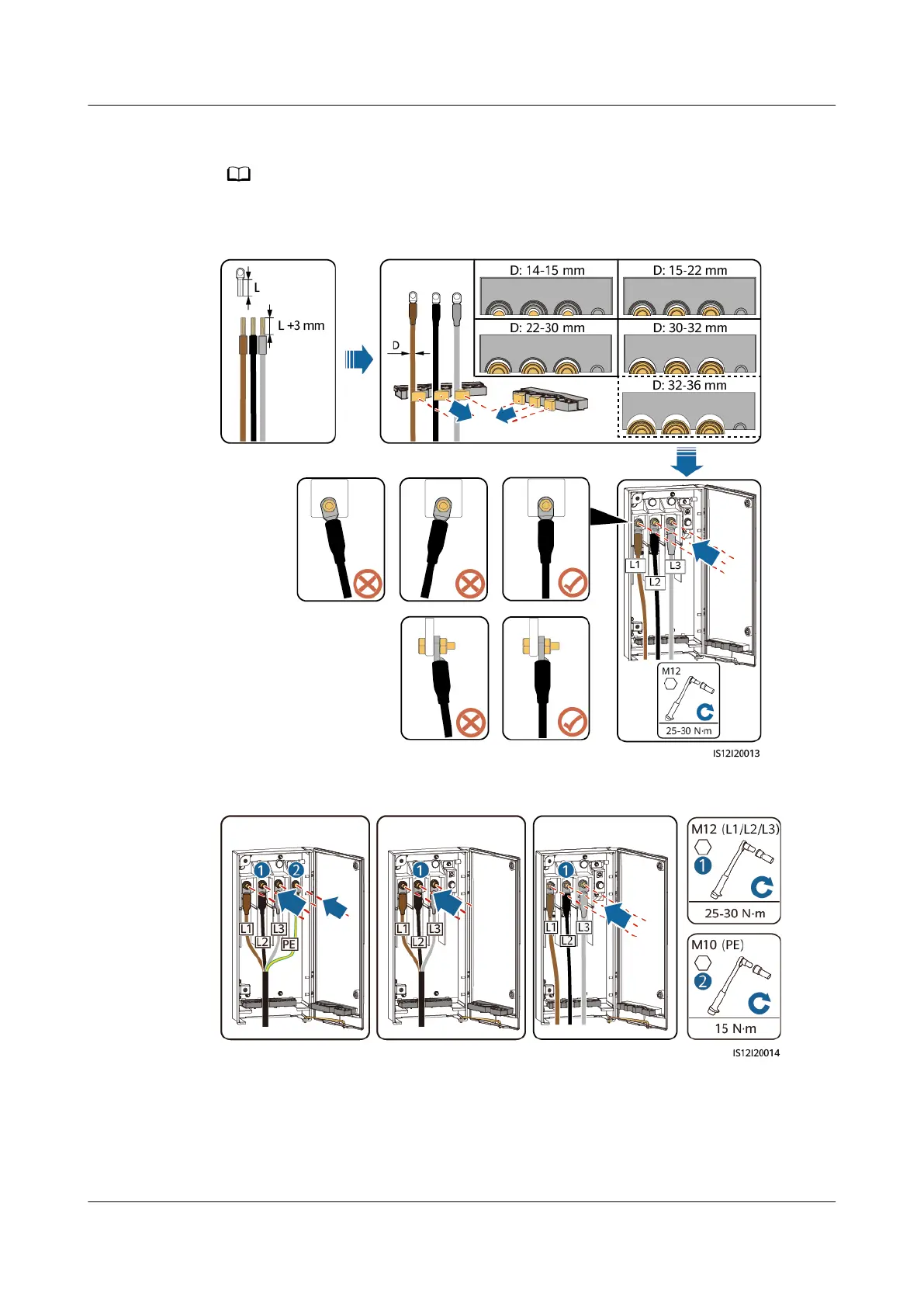

Figure 5-17 Single-core cable connections
The 32–36 mm cable is supported only by some models. Refer to the corresponding label to
get the supported size.
Figure 5-18 3-pin model (125KTL) cable connections
(A) Four-core cable
(B) Three-core cable (C) Single-core cable
SUN2000-(75KTL, 100KTL, 110KTL, 125KTL) Series
User Manual 5 Electrical Connections
Issue 11 (2021-11-10) Copyright © Huawei Technologies Co., Ltd. 57
