3
Rubber Plug
15 mm
22 mm
26 mm
6 mm
8.6 mm
11 mm

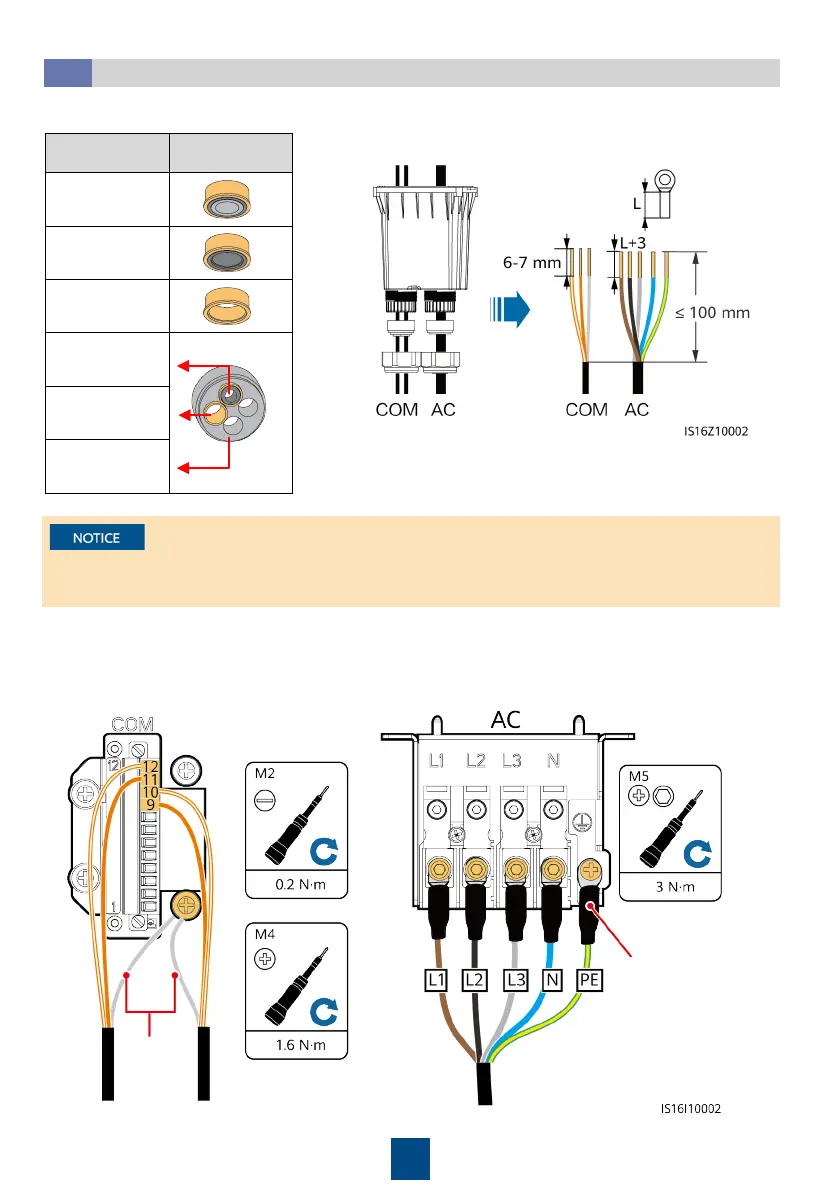

1. Route the cables through the junction box and prepare cable terminals.
Installing AC Output Power Cables and Signal Cables
3.3
If the cable stripping length does not meet the requirements, the airtightness and waterproof
performance of the device may be affected.
2. Install AC output power cables and signal cables. (The following uses the RS485 signal
cables as an example. For details about other signal cables, see the signal definitions of
communications ports.)
Heat-shrink
tubing
Shield
layer
To Next Page
