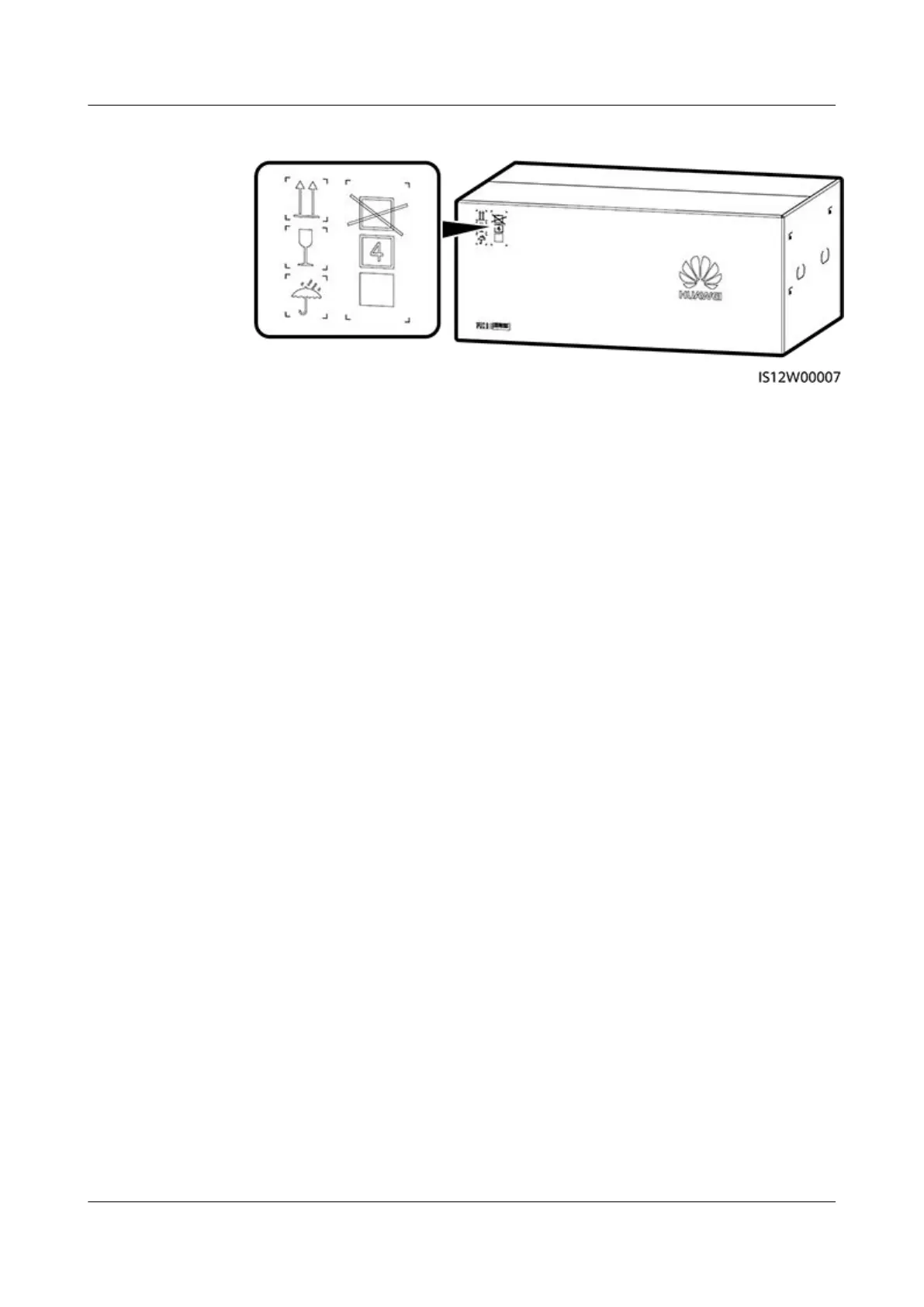

Figure 3-2
Maximum number of pile-up lay
ers allowed
●
If the solar inverter has been stor
ed for mor
e than t
wo years, it must be
checked and tested by pr
of
essionals bef
ore being put into use.
SUN2000-(250KTL, 280KTL
, 300KTL, 330KTL) Series
User Manual
3 Stor
age Requirements
Issue 07 (2023-06-30)
Copyright © Huawei T
echnologies Co., Ltd.
26
32
34
Table of Contents
