Numbe

r of PV

Strings

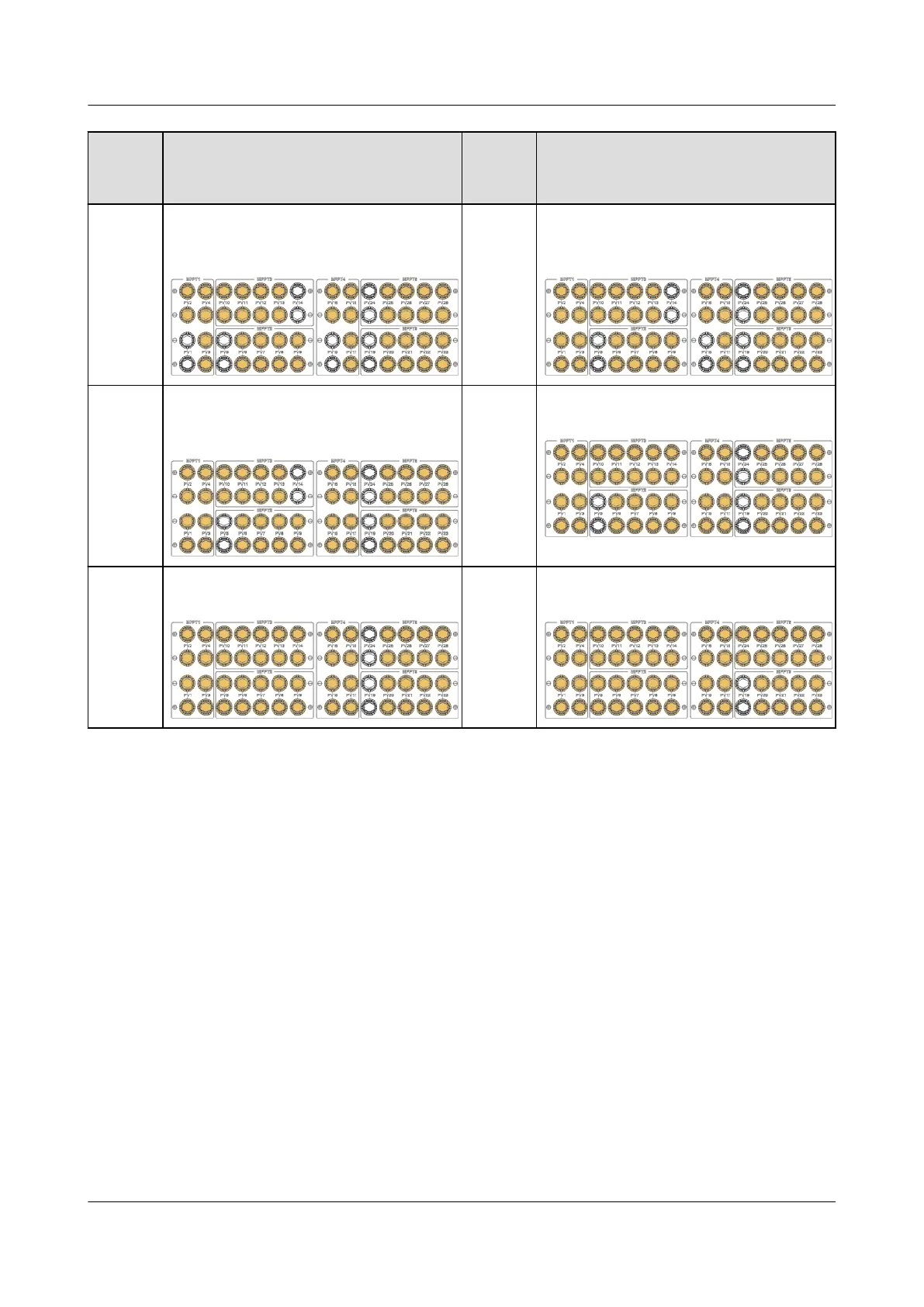

Terminal Selection Numbe

r of PV

Strings

Terminal Selection

22 Connect to PV2–PV4, PV6–PV13,

PV16–PV18, PV20–PV23, and PV25–

PV28.

23 Connect to PV1–PV4, PV6–PV13,

PV16–PV18, PV20–PV23, and PV25–

PV28.

24 Connect to PV1–PV4, PV6–PV13,

PV15–PV18, PV20–PV23, and PV25–

PV28.

25 Connect to PV1–PV4, PV6–PV18,

PV20–PV23, and PV25–PV28.

26 Connect to PV1–PV18, PV20–PV23,

and PV25–PV28.

27 Connect to PV1–PV18 and PV20–

PV28.

SUN2000-(250KTL, 280KTL, 300KTL, 330KTL) Series

User Manual 5 Electrical Connections
