Huawei UPS2000-G Series Quick Guide

UG06009983
-
+
-
+
PE
BATT.240VDC
PE
BATT.240VDC
- + - +
PE
BATT.240VDC
- +
PE
BATT.240VDC
- +
UG06009982
14
3

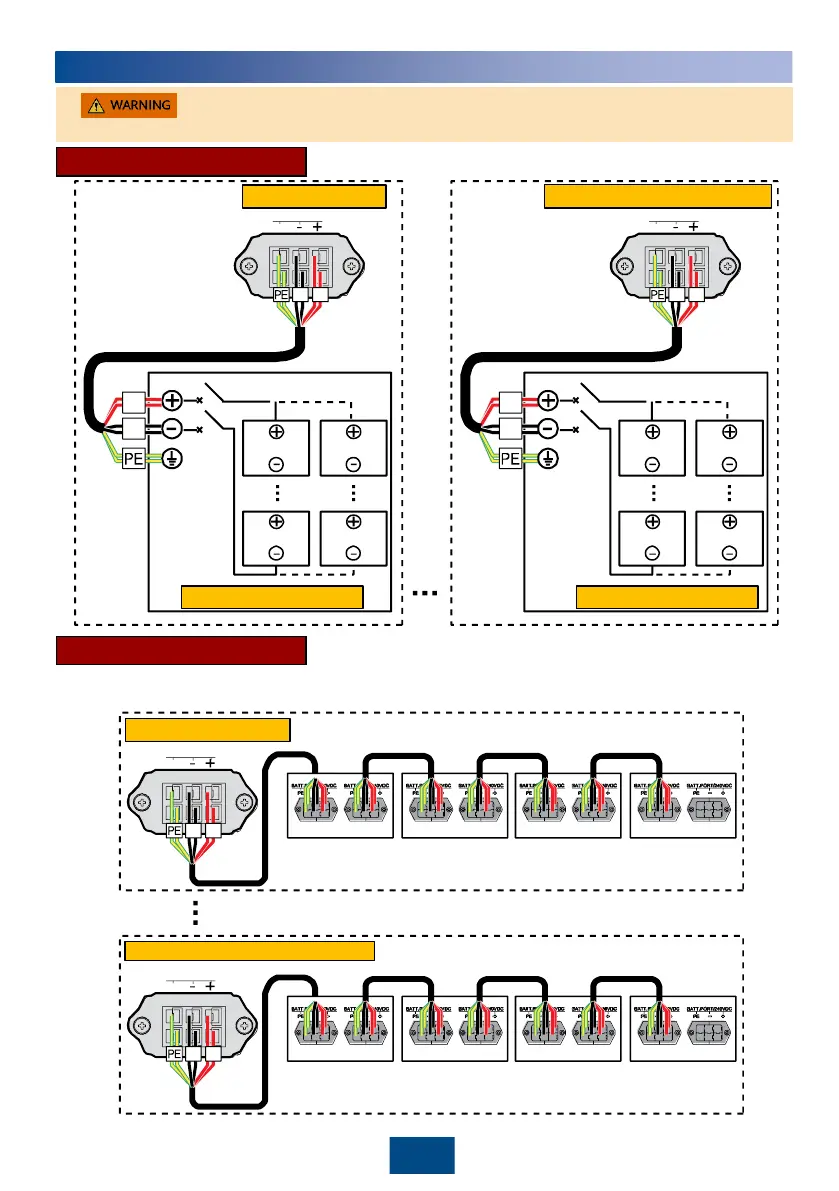

Installing Battery Cables
UPSs in a parallel system cannot share battery strings or battery packs.
Ground
point
External Battery Strings
External Battery Packs
Ground
point
Battery 1
Battery 20
UPS 1 battery port
UPS n (2 ≤ n ≤ 4) battery port
UPS 1 battery port
UPS n (2 ≤ n ≤ 4) battery port
External battery string 1
External battery string n
Battery
pack port
Battery
pack port
Battery
pack
port
Battery
pack
port
Battery
pack port
Battery
pack port
Battery
pack port
Battery
pack
port
Each 6 kVA/10 kVA UPS with standard backup time is equipped with a battery pack. Each 6
kVA/10 kVA UPS with long backup time can be equipped with one to four battery packs.
Battery 1
Battery 20
Battery 1
Battery 20
Battery 1
Battery 20

Huawei UPS2000-G Series Specifications

General

Frequency	50/60 Hz
Output Power Factor	0.9
Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Capacity	1 kVA, 2 kVA, 3 kVA
Input Voltage	220 Vac (120 Vac/208 Vac/230 Vac/240 Vac)
Output Voltage	220/230/240 VAC
Efficiency	Up to 95%
Topology	Double conversion online
Battery Type	Sealed Lead Acid
Communication Ports	USB, RS232
Optional Communication	SNMP
Operating Temperature	0°C to 40°C
