Huawei WiFi Mesh 3 User Manual

6
If the pack you purchased contains more than one router, the
other router(s) will set up a network with the rst congured
router automatically after being connected to the power supply.

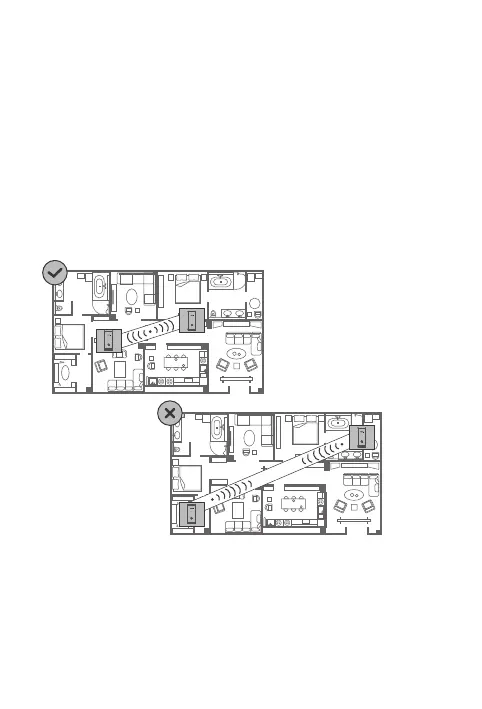

Place the router(s) in the area where you wish to extend
Wi-Fi coverage, and connect it to a power supply. Wait for
approximately two minutes until the indicator turns steady blue,
indicating that the router is connected to the network. You can
also check their network connection through the app.
Step 4: Connect the other router(s) to the
power supply

Huawei WiFi Mesh 3 Specifications

General

Antenna type	Internal
Product type	Mesh system
Product color	White
LED indicators	Yes
Maximum coverage	600 m²
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Flash memory	128 MB
Internal memory	256 MB
Number of products included	3 pc(s)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Security algorithms	WPA3
Networking standards	IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Ethernet LAN (RJ-45) ports	3
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Power consumption (typical)	12 W

Weight and Dimensions

Depth	107 mm
Width	70 mm
Height	174 mm
Weight	413 g
