current preset state, the current display will show the preset current value, clockwise to
increase the preset current; counterclockwise to decrease the preset current.
19、2mA/20mA switch gear
Press the key is for 20mA gear, pop-up for 2mA gear.
20、Test /pre-set key
This key is pressed for the pre-set current state, while pop-up for test status.
21、Test /pre-set key
Press the key is for DCW test, pop-up for ACW test.
22、Test /pre-set key
Press the key is for 10kV gear, pop-up for 5kV gear.

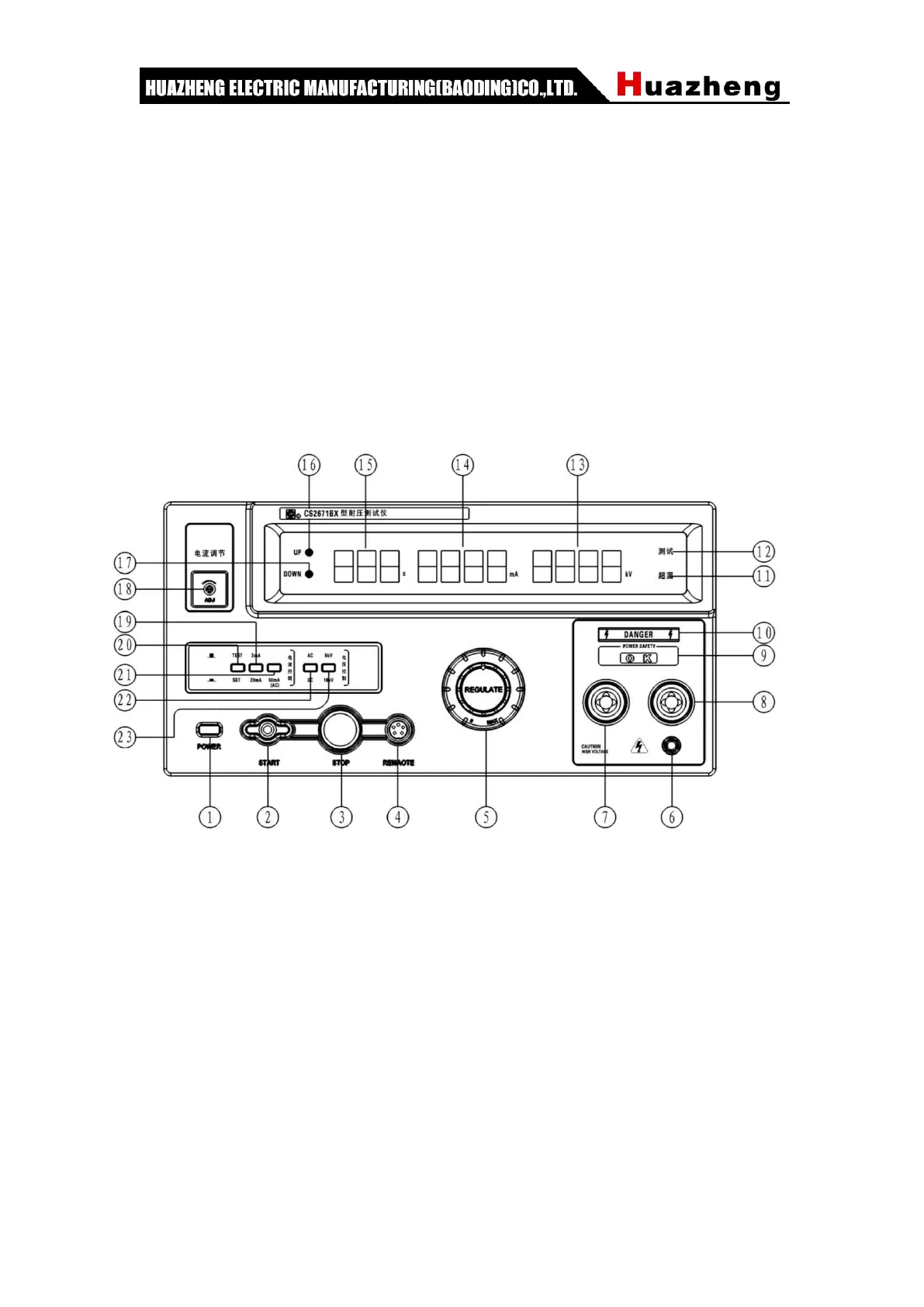

④CS2671BX front panel outline
1、Power switch
When the power switch is pressed, the tester is on, while pop-up it，the tester is off；
2、START key
In the reset status, press this key, the tester starts to perform test
3、STOP key
During the testing, it is used to interrupt the test. When DUT test failed, the failed indicator
(10) is on, and at this time press the STOP key, the tester will stop alarming and enter into
the next waiting test.
4、Remote interface
Use the remote probe to start up or reset of test remotely.
5、Voltage rotary knob
In the test of DUT, rotate this knob to regulate the output voltage (turn knob clockwise:
