Huazheng CS2670A User Manual

30
shock.
3、PLC interface
Read the details on chapter 6；

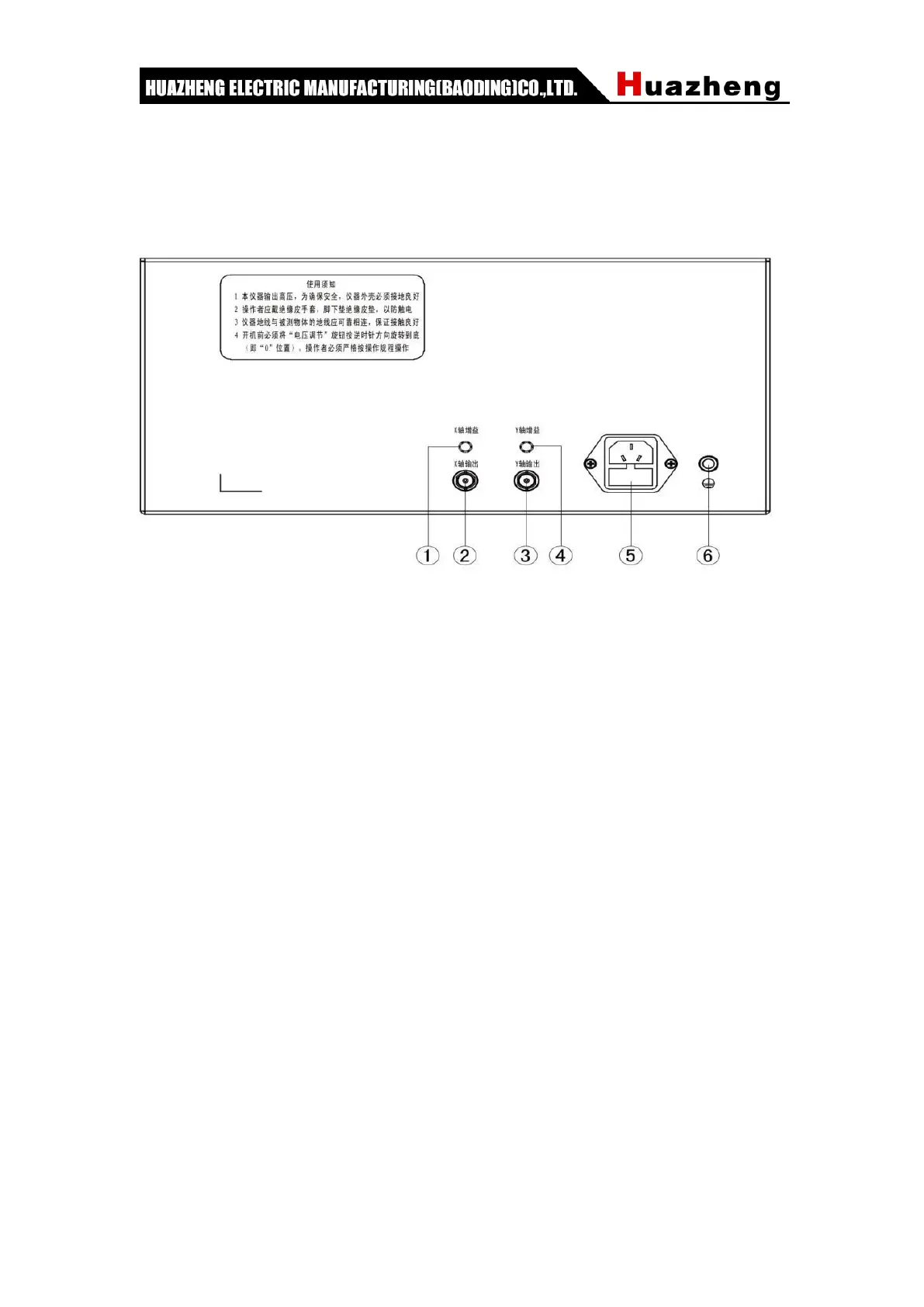

⑫CS2670Y Rear panel
1、 X axis gain adjustment potentiometer
2、X axis output interface
3、Y axis output interface
4、Y axis gain adjustment potentiometer
5、 Input power outlet
Three core two phase power socket. The power outlet is equipped with a fuse; the
selection of the input voltage and the replacement of the fuse is referred to 1.7.
6、Protective grounding end
This protection is to be reliably grounded on the ground. Otherwise, the test apparatus of
the case may be full of high pressure, resulting in electric shock accident.
VI.PLC interface
There is remote control connection terminal on the back plate of the tester. This terminal
can connect to remote manipulator to operate. It is a standard 9PIN D type terminal, with
the following signals: connection test signals, reset signal, signal under testing, test pass
signal, test fail signal.
1.Input signal & Output signal of PLC
