When do the test time set, press the up key, the test time set will be up.
17、DOWN key
When do the test time set, press the down key, the test time set will be down.
18、Current preset adjustment potentiometer
After pressing the numbered (18) button "test / Pre-set”, the tester will enter into the
current preset state, the current display will show the preset current value, clockwise to
increase the preset current; counterclockwise to decrease the preset current.
19、2mA/20mA switch gear
Press the key is for 20mA gear, pop-up for 2mA gear.
20、Test /pre-set key
This key is pressed for the pre-set current state, while pop-up for test status.
21、50mA gear key
Press the key is for 50mA gear, pop-up for 2mA/20mA gear
22、AC/DC switch key
Press the key is for DCW test, pop-up for ACW test.
23、5kV/10kV switch key
Press the key is for 10kV gear, pop-up for 5kV gear.

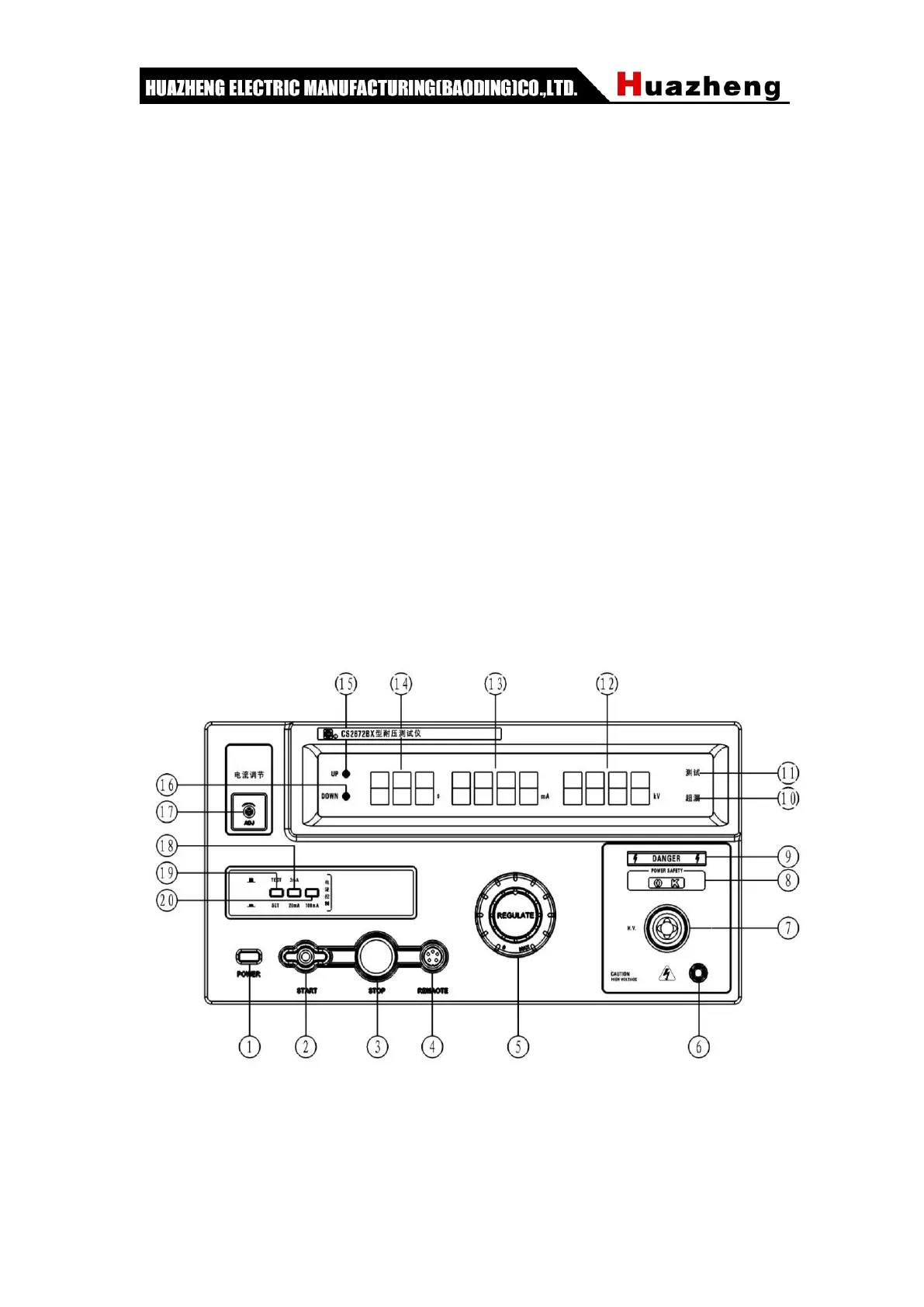

⑤CS2672BX front panel outline
1、Power switch
When the power switch is pressed, the tester is on, while pop-up it，the tester is off；
2、START key
In the reset status, press this key, the tester starts to perform test
