counting.
15、UP key
When do the test time set, press the up key, the test time set will be up.
16、DOWN key
When do the test time set, press the down key, the test time set will be down.
17、Current preset adjustment potentiometer
After pressing the numbered (18) button "test / Pre-set”, the tester will enter into the
current preset state, the current display will show the preset current value, clockwise to
increase the preset current; counterclockwise to decrease the preset current.
18、Test /pre-set key
This key is pressed for the pre-set current state, while pop-up for test status.
19、2mA/20mA switch gear
Press the key is for 20mA gear, pop-up for 2mA gear.
20、100mA switch gear
Press the key is for 100mA gear, pop-up for 2mA/20mA gear.

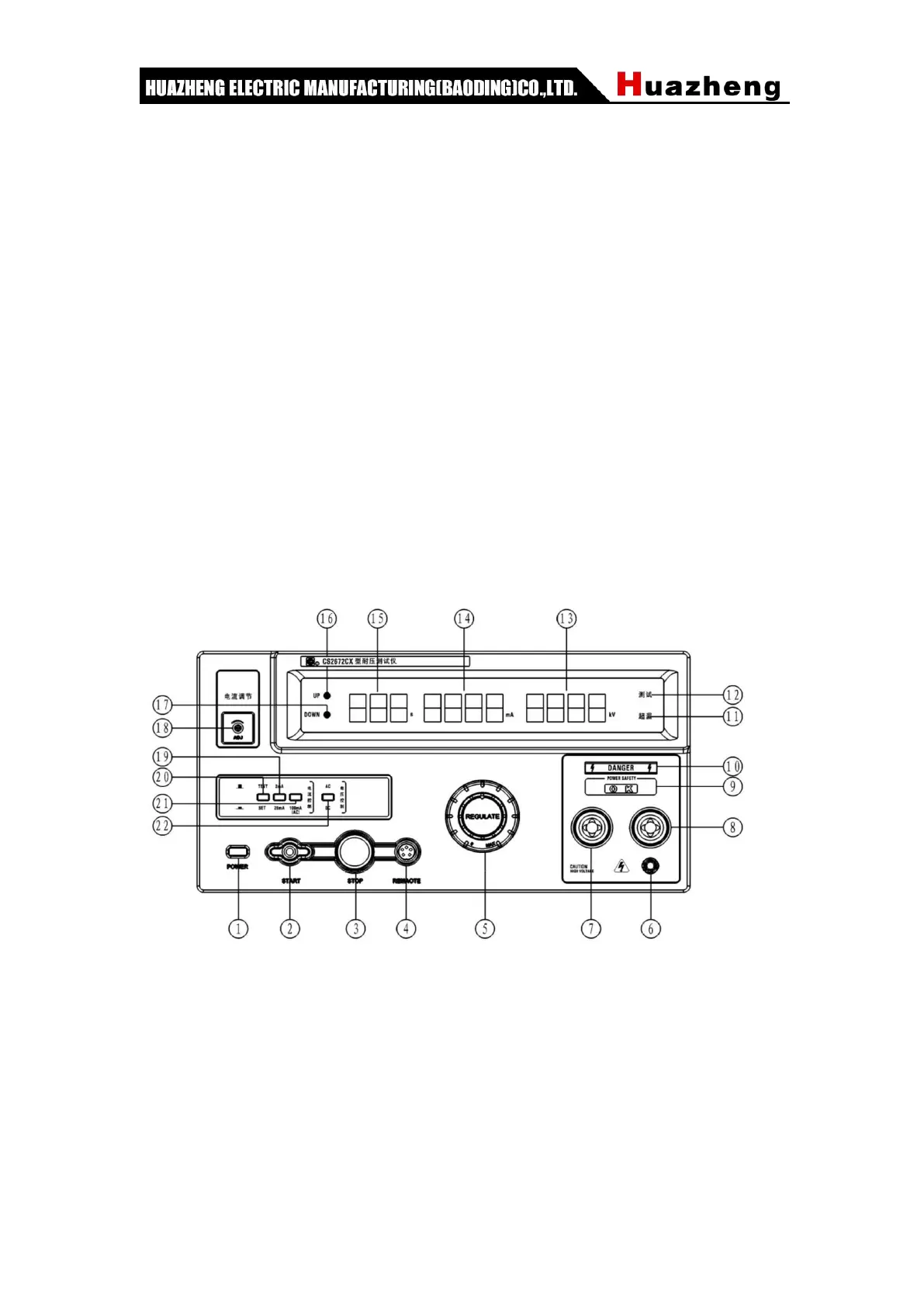

⑥CS2672CX front panel outline
1、Power switch
When the power switch is pressed, the tester is on, while pop-up it，the tester is off；
2、START key
In the reset status, press this key, the tester starts to perform test
3、STOP key
During the testing, it is used to interrupt the test. When DUT test failed, the failed
indicator (10) is on, and at this time press the STOP key, the tester will stop alarming
and enter into the next waiting test.
