4.Transformer or electrical instrument‟s electric intensity (Withstanding voltage intensity)
test

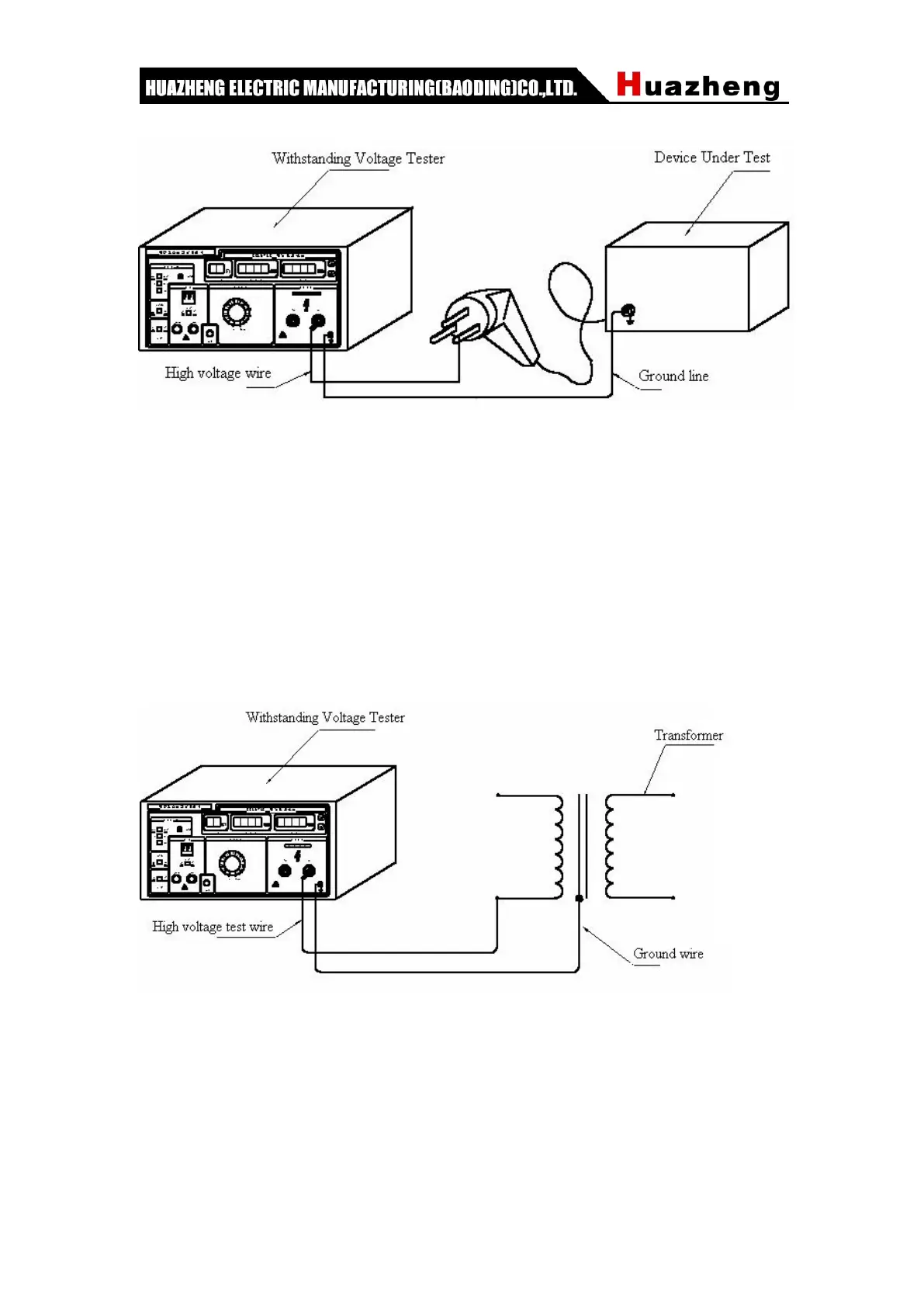

According to the picture below to connect the Withstanding voltage tester with DUT, set
the leakage current warning value according to the product standard of DUT, and then test
it as per the 4 or 5
th
operation steps. If there is no concrete leakage current warning value
in the product standard, please calculate as formula (1) above and then set the value:
5.Capacitor‟s electric intensity（Withstanding voltage intensity）test
According to the picture below to connect the Withstanding voltage tester with tested
capacitor, if making DC test, in order to avoid wrong alert user shall add voltage slowly
and make the charge current less than the warning value of leakage current; if making AC
