Installing the wall switch
WARNING: Hook up in "series only". Do not connect the hot and neutral wires of
the electric circuit to the wall switch - damage to the switch and possible fire could
occur.
WARNING: Remember to shut the power off at the circuit breaker or fuse box.
1. Carefully tuck the wire connections inside the junction box . Secure the wall
switch with the two wall switch screws provided.
2. Attach the wall plate over the wall switch and secure with the two wall plate
screws provided.

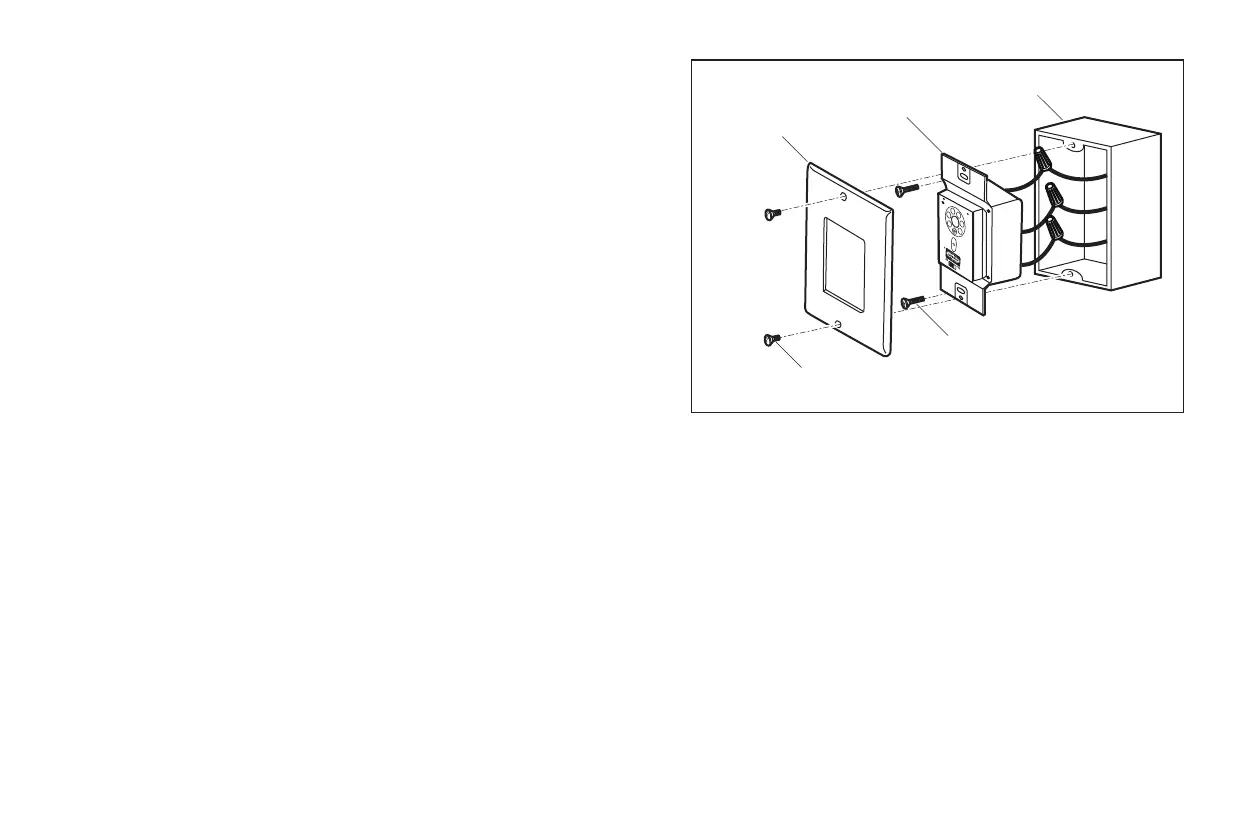

Figure 9
Wall plate
Wall control
Wall outlet box
Screws
Screws
