The following interfaces are available:
1. RS232/SERIAL (Standard Interface! Included in all CC units with CC-Pilot)
2. Com.G@te internal or external version depending on the unit (Extension of an
analogue interface or a further digital interface)
3. Web.G@te internal or external version depending on the unit (Control possible
via Intranet, Internet, USB…)
Caution!
With plug-in connections subject to a higher voltage than 60 V (AC) and 40 V (DC)
there is the risk of receiving an electric shock or of damaging the interface module. Only
components requiring voltages of less than 60 V (AC) and 40 V (DC) should be
connected, in order to ensure the safety of the interface module.

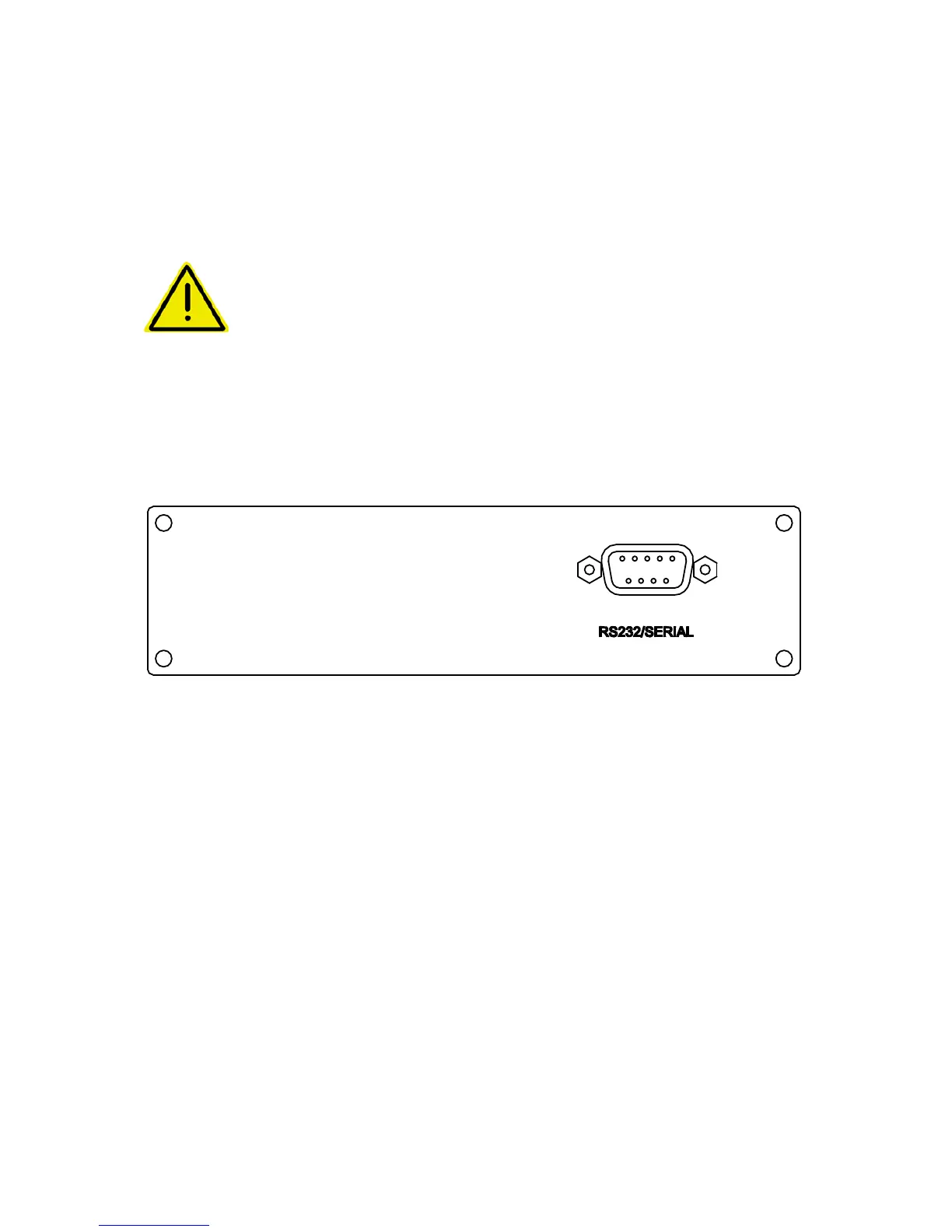

RS232/SERIAL
5
1
6
9
Wiring RS232:
Pin2 RxD Receive Data
Pin3 TxD Transmit Data
Pin5 GND Signal GND
The Baudrate is set to 9600. It cannot be changed! An operation via the interface
RS232/SERIAL is not possible if the temperature control unit is controlled via remote
control by the CC-Pilot.
