10
*
Ø.093
Ø.098
Ø.093
Ø.130
Ø.125
Ø.172
Ø.160
Ø.160
Ø.160
Ø.160

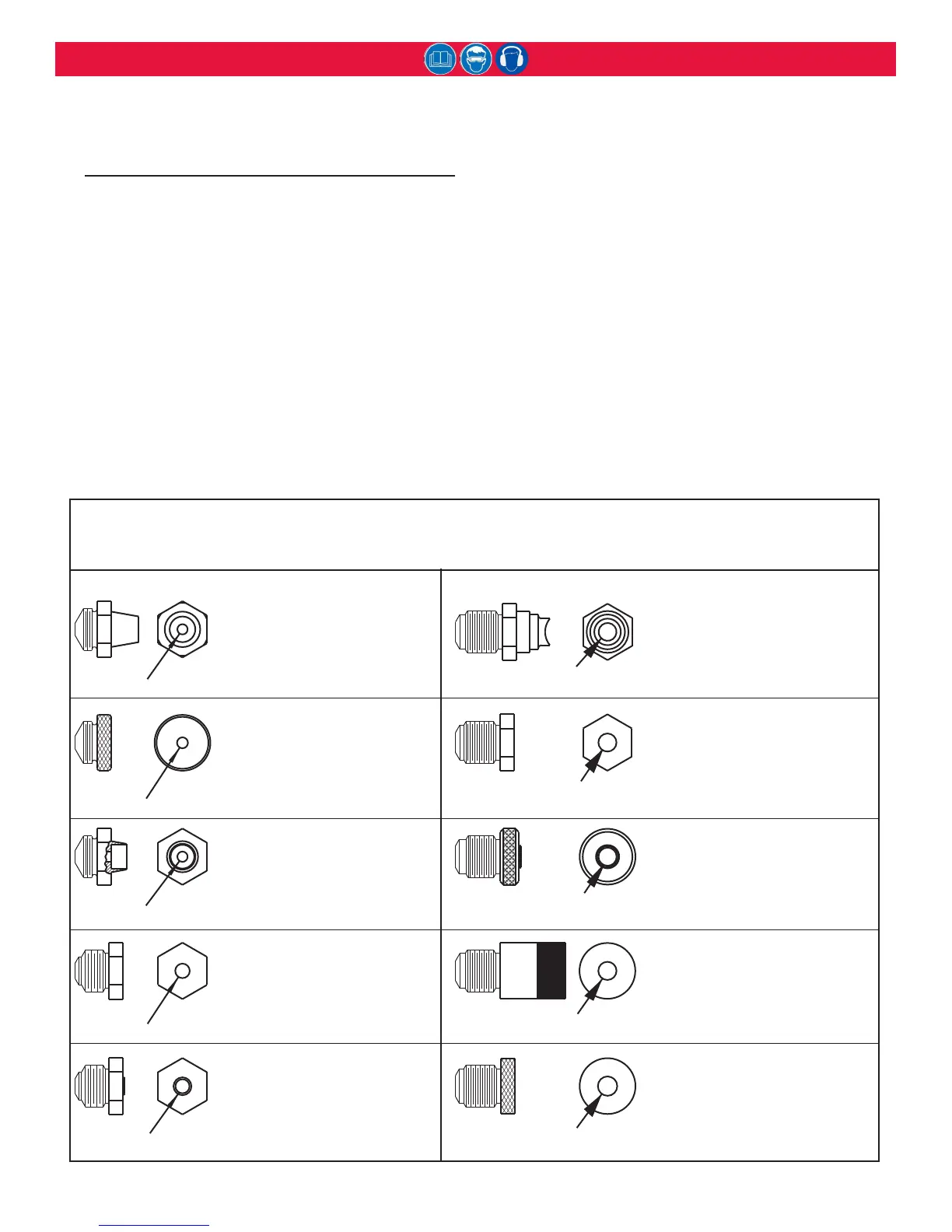

Part No. Description
1/4" Magna Lok
1/4” Pop Rivets
1/4” Plastic Rivets
Replaces Tip 202157
Spec. GM Glass Stop
Travel, Pop Rivets
1/4" Monobolts
1/4" Auto Split "T"
Rivets
3/16" Monobolts
5/32" & 3/16" Pop
& Plastic Rivets
1/8" Stand Off
Pop Rivets
'3/32" & 1/8"
Pop Rivets
1/8" for Trim Molding
Pop Rivets
202142
202193
202169
202155
202168
202158
202190
202159
202156
* Included in AK-175 kit
*
*
*
Part No. Description
1/4" Pop & Plastic
Rivets
202157
Discontinued - Replaced
by tip 202142 (pictured
below)
Steps for Proper Tool Maintenance and Operation
1. Disassemble and clean NOSE components peri-
odically. If the pintails do not drop out freely, use a
pick to clean the jaw grooves. Wash components
in mineral spirits or isopropyl alcohol. Apply a small
amount of light weight oil to the JAWS and inside of
JAW HOLDER prior to assembly.
2. To ease NOSE TUBE and NOSE PIECE installation,
extend tool by squeezing actuating trigger.
3. DO NOT USE TOOL AS A LEVER if rivet pin tail
is jammed while re-gripping. Instead, with releas-
ing trigger depressed, push tool nose against work
piece for the jaws to get a deeper grip
4. If rivet pintail is stuck in tool after breaking, lightly
tap nose against a hard surface while squeezing the
releasing trigger, pintail should then fall out.
5. Before operating tool, make sure that all NOSE
PARTS have been screwed in HAND TIGHT.
6. For long life of tool, do not continue to run tool at the
end of travel.
7. The AK-175 should not be used at temperatures
below 35° F. unless it is rst brought to room tem-
perature and cycled several times, normal use of the
tool after warming should keep it warm enough for
proper operation.
8. If tool will not reverse, remove NOSE TUBE and
inspect for any foreign matter that might have
caused jamming between JAW HOLDER and inside
of NOSE TUBE.
9. Frequently check that nose components do not
vibrate loose during operation.
tool Maintenance
AK-175 Series Tools (HK1057) Arconic Fastening Systems and Rings
